Dahua NVR41 series User Manual

User's Manual
28

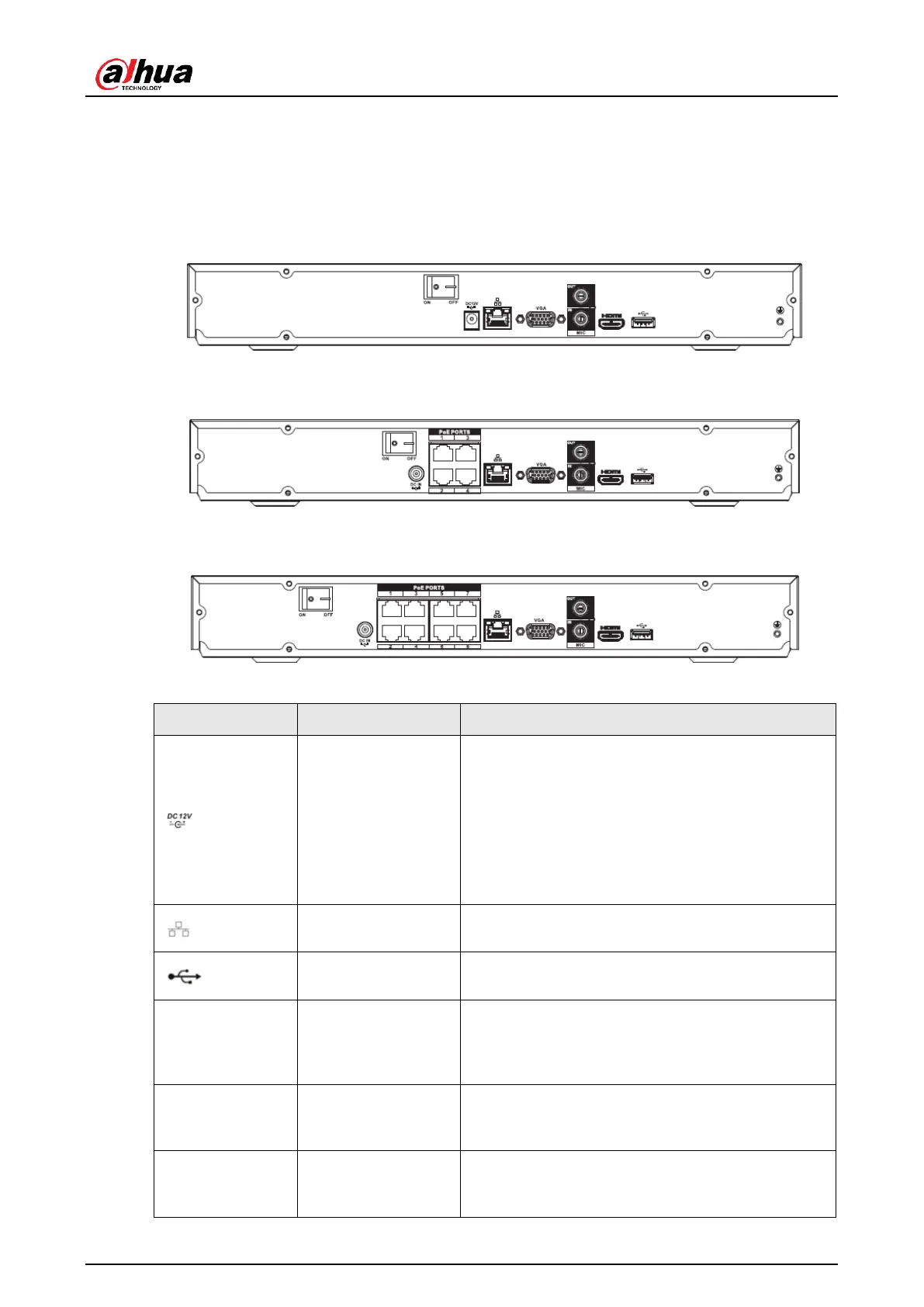

2.2.6
NVR22-S2/22-P-S2/22-8P-S2/22-4KS2/22-P-4KS2/22-8P-4KS2
Series
Figure 2-32
The NVR22-P-S2/22-P-4KS2 series rear panel is shown as below. See Figure 2-33.
Figure 2-33
The NVR22-8P-S2/22-8P-4KS2 series rear panel is shown as below. See Figure 2-34.
Figure 2-34
Table 2-19
Port Name
Connection
Function
Power input port
Power socket.
● For NVR22-S2/22-4KS2general series, input
DC 12V/4A.
● For NVR22-P-S2/22-P-4KS2 series, input
DC 48V/1.5A.
● For NVR22-8P-S2/22-8P-4KS2 series, input
DC 53V 120W.
Network port
10M/100Mbps self-adaptive Ethernet port.
Connect to the network cable.
USB port
USB port. Connect to mouse, USB storage
device and etc.
HDMI
High Definition
Media Interface
High definition audio and video signal output
port. It transmits uncompressed high definition
video and multiple-channel data to the HDMI port
of the display device. HDMI version is 1.4.
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
MIC IN
Audio input port
Bidirectional talk input port. It is to receive the
analog audio signal output from the devices such
as microphone, pickup.
