User's Manual
27
Port Name Connection Function
MIC OUT Audio output port
Audio output port. It is to output the analog audio
signal to the devices such as the sound box.
●
Bidirectional talk output.
●
Audio output on 1-window video monitor.
●
Audio output on 1-window video playback.
GND Ground end.
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
2.2.4 NVR52-4KS2/NVR52-8P-4KS2/NVR52-16P-4KS2/NVR52-24P-
4KS2/NVR52-8P-4KS2E/NVR52-16P-4KS2E/NVR52-EI/NVR52-8P-
EI/NVR52-16P-EI/NVR42-16P-EI/NVR52-XI/NVR52-8P-XI/NVR-52-
16P-XI Series

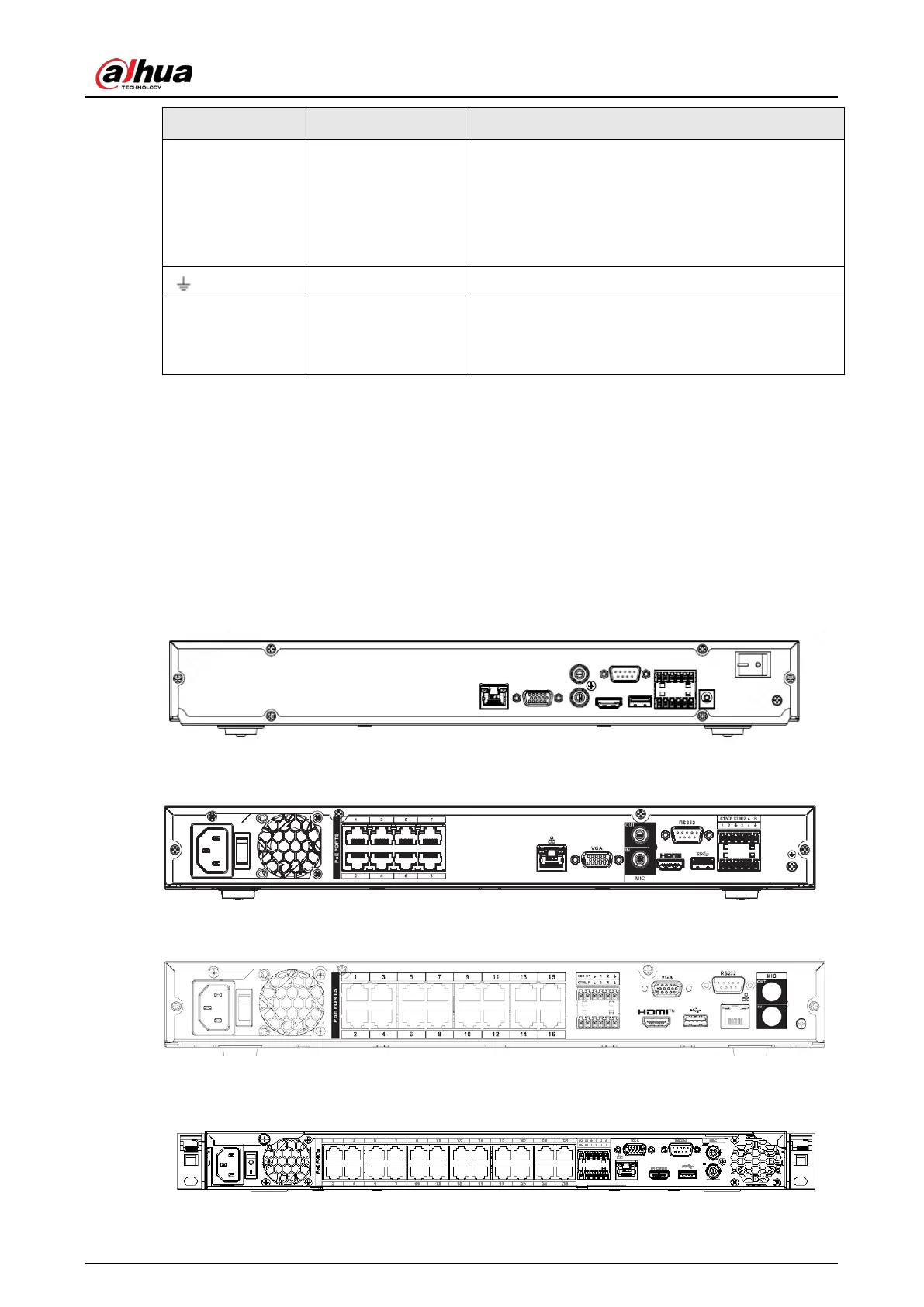

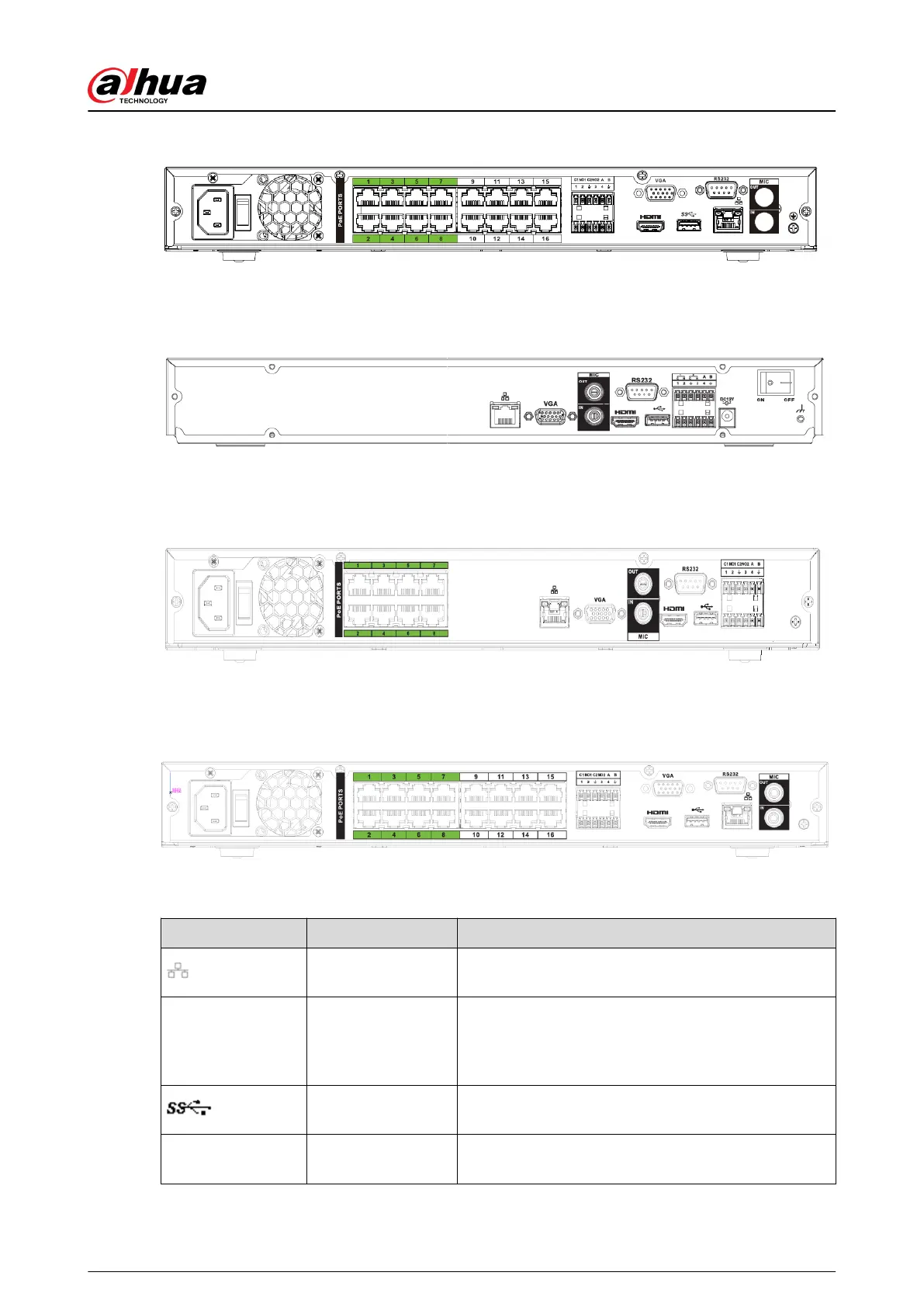

The NVR52-4KS2 series rear panel is shown as below.
Figure 2-46 Rear panel
The NVR52-8P-4KS2 series rear panel is shown as below.
Figure 2-47 Rear panel
The NVR52-16P-4KS2/NVR42-16P-EI series rear panel is shown as below.
Figure 2-48 Rear panel
The NVR52-24P-4KS2 series rear panel is shown as below.
Figure 2-49 Rear panel
