User's Manual
55
Port Name Connection Function
VGA
VGA video output
port
VGA video output port. Output analog video
signal. It can connect to the monitor to view
analog video.
Network port
10/100 Mbps self-adaptive Ethernet port. Connect
to the network cable.
PoE PORTS PoE port
Built-in switch. Support PoE function.
For PoE series product, you can use this port to
provide power to the network camera.
Power input port Power socket.

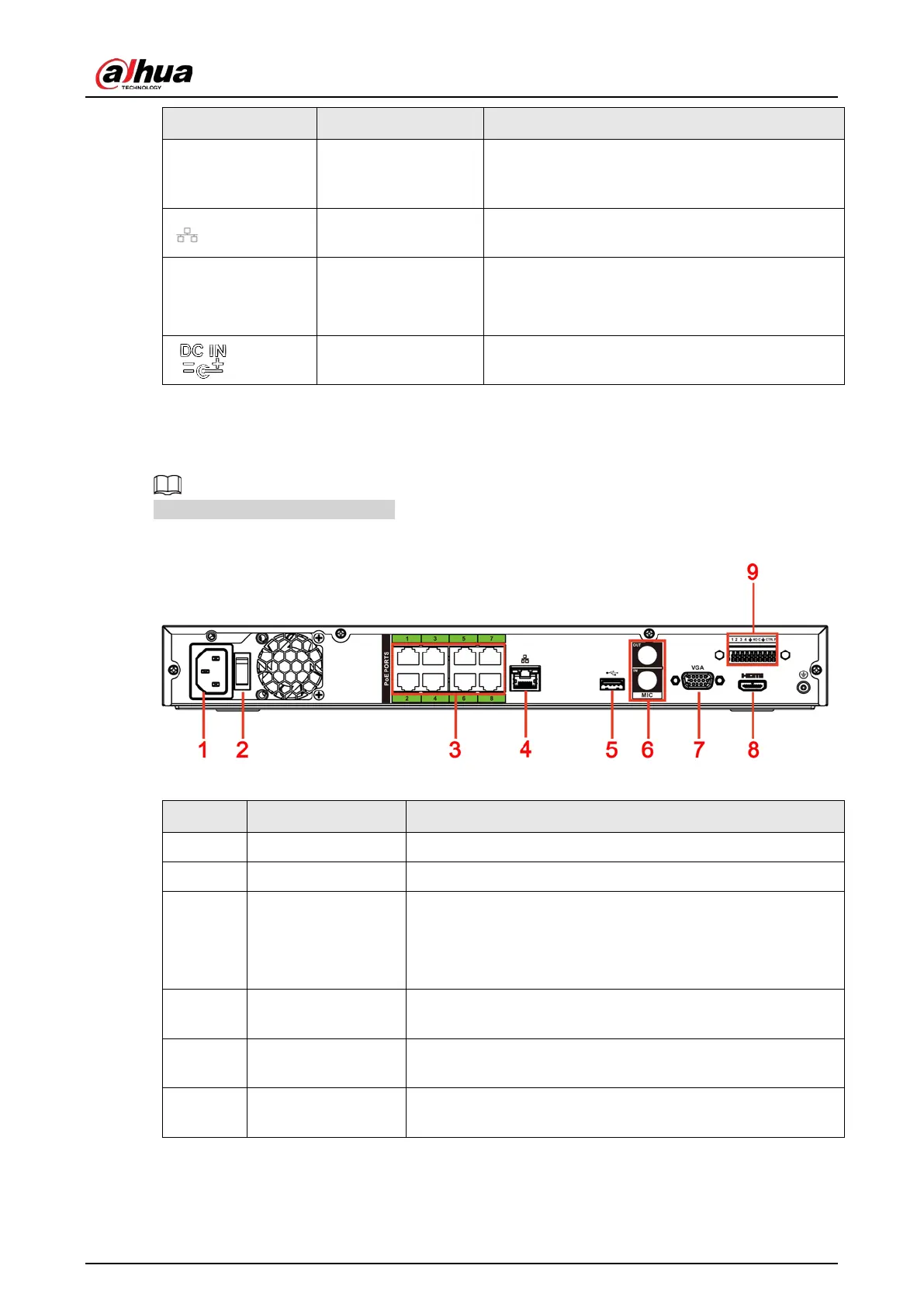

2.2.22 NVR4208-8P-I Series
These figures are for reference only.
Figure 2-91 Rear panel
Table 2-37 Ports
No. Port Name Function
1 Power input port Input power of 100-240 V and 50-60 Hz.
2 Power button Turns on/off the NVR.
3 PoE port
Built-in switch. It can provide power for IPC.
8 PoE ports: 1-8 are ePoE ports (support 300m @ 100M. 800m
@ 10M). The device supports 48 V, 100 W total power output
under 55 °C, and 48 V, 130 W total power output under 45 °C.
4 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to
the network cable.
5 USB port
USB 3.0 port. Connect to devices such as mouse, USB storage
device and USB burner.
6 MIC IN
Bidirectional talk input port. It is to receive analog audio
signal from devices such as microphone, sound pickup.
To Next Page
