User's Manual
60
No. Port Name Function
9 Network port
10/100/1000 Mbps self-adaptive Ethernet port. Connect to
the network cable.
10 Power input port Input power of 100-240 V and 50-60 Hz.
11 GND.
2.2.25 NVR54-I/NVR54-I/L/NVR44-I Series
●
The following figure takes NVR5432-16P-I and NVR5432-16P-I/L series as examples.
●
The figure is for reference only.

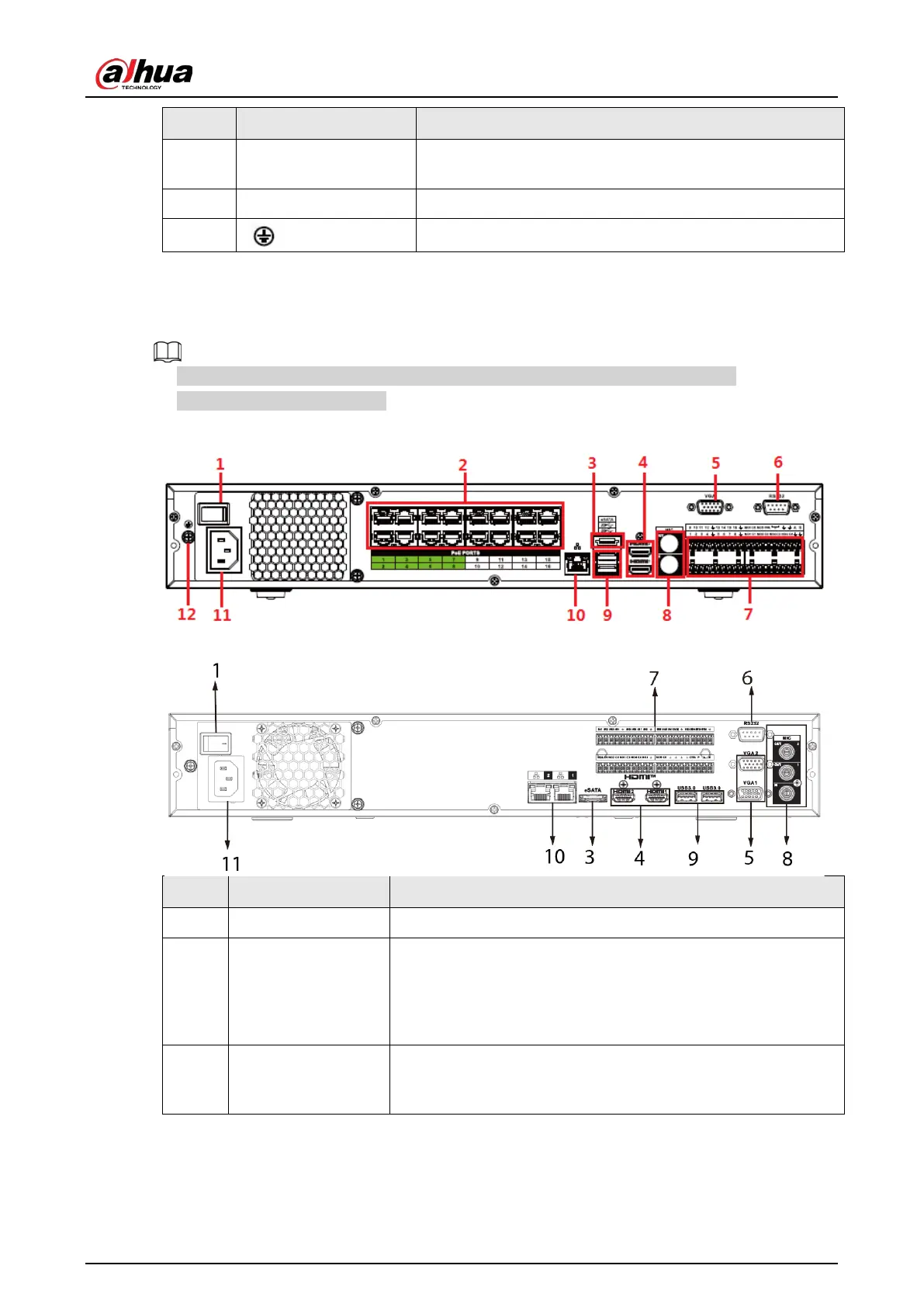

Figure 2-95 Rear panel

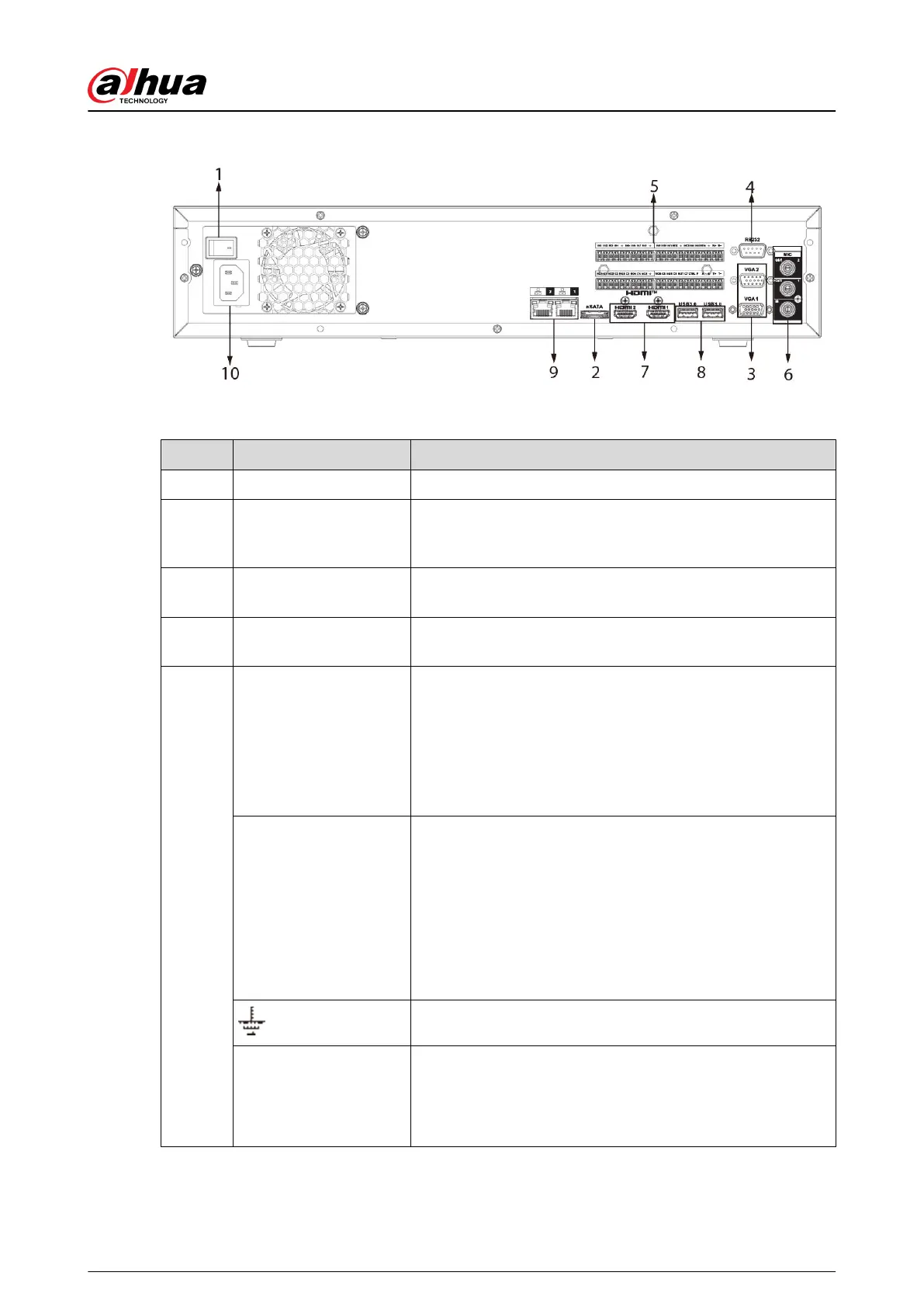

Figure 2-96 Rear panel
No. Port Name Function
1 Power button Turns on/off the NVR.
2 PoE port
Built-in switch. It can provide power for IPC.
●
16 PoE ports: 1-8 are ePoE ports (support 300m @ 100M.
800m @ 10M). 9-16 are regular PoE ports.
●
Device with 16 PoEs supports 150 W total power.
3 eSATA port
External SATA port. It can connect device with SATA port. You
need to jump the HDD when there is peripherally connected
HDD.
