AX-Series Motion Controller Instructions Manual Chapter 2
459

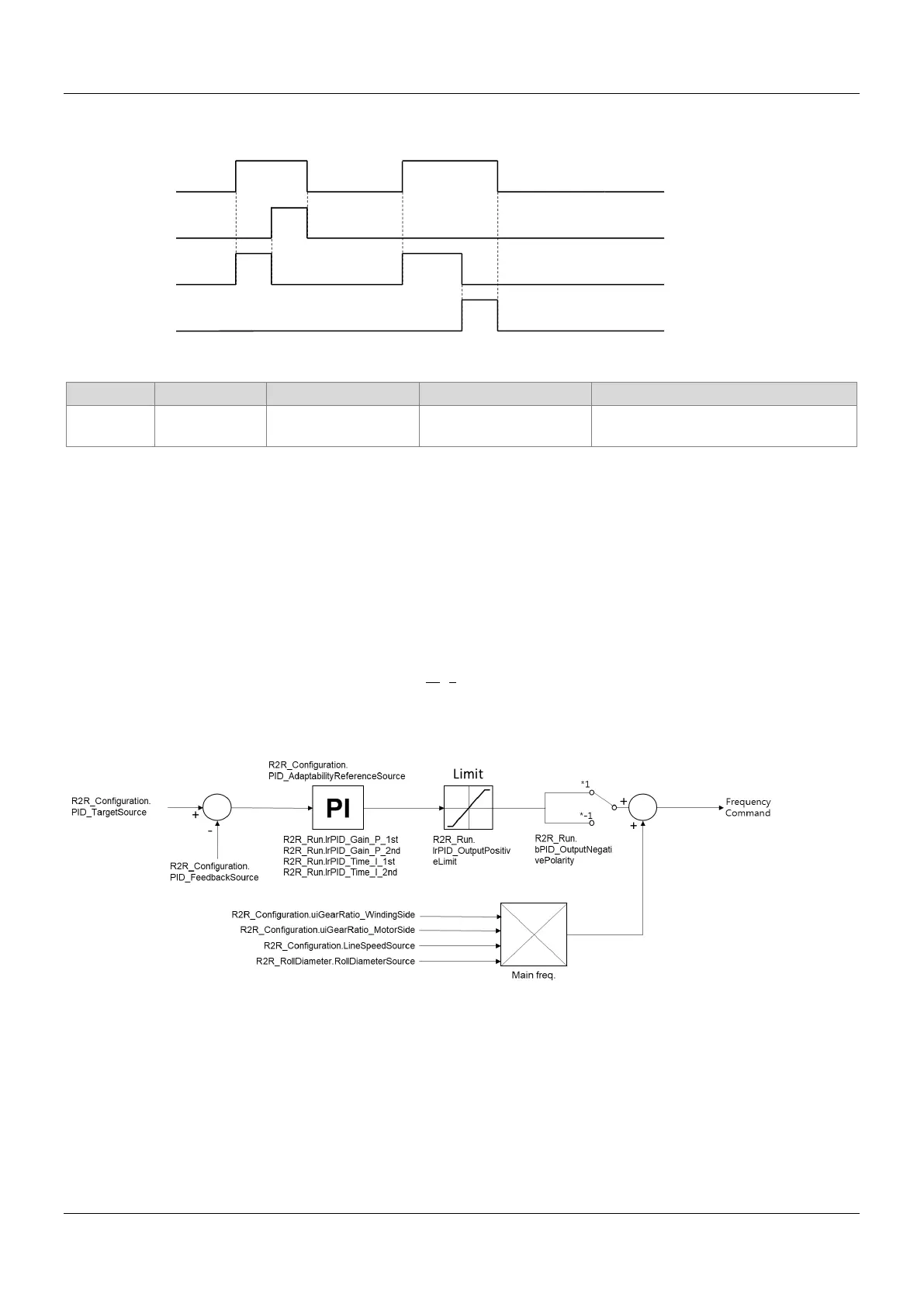

 Timing Diagram
 Inputs/Outputs
Name
Function
Data Type
Setting Value
Timing to Take Effect
Axis
Specify the
axis.
AXIS_REF_DML* AXIS_REF_DML
When bExecute turns to True and
bBusy is False
*Note: AXIS_REF_DML (FB): All function blocks contain this variable, which works as the starting program for function blocks.
 Function
 This function is only available when DL_ MotionControlLight is V1.2.0.0 or later.
 This instruction is used to set the parameters related to tension control. Before running tension control, we must use
this function block to configure settings.
 There are 4 modes of TensionCtrlMode. The following describles each mode architecture.
 TensionCloseLoop_SpeedMode (tension closed-loop control, speed mode)
 In this mode, the driver is set to speed mode for tension control.
Ten s ion control main frequency: 
(

)
=





V: Line speed (m/min.)
D: Reel diameter (m)
A/B: Mechanical gear ratio
 LineSpeedCloseLoop_SpeedMode (Line speed closed-loop control, speed mode)
 In this mode, the driver is set to speed mode for tension control.
bExecute
bDone
bBusy
bError
