Appendix G: Weights & Measures Mode
G.1 General Information
NOTE: The following information shows the settings for units without price displays. Units with price
displays will look slightly different as they typically utilize all three displays for displaying
information.
Weights & Measures mode provides an audit trail of metrologically significant information
that is handled through a W&M Category 2 sealing method. This function is mainly for
use by Weights and Measures officials to view the events recorded in the audit trail
related to the category 2 seal.
Weights & Measures mode is accessed using the handheld Infrared Remote Control
(IRC). To use the IRC, point it at the volume display within a distance of 12 to 18 inches.
While most of the Weights & Measures mode information is not side specific, for
information that is side specific, you will need to enter the W&M mode pointing the
remote towards the display for the relevant side. For twin models with island-oriented
nozzles that have two displays on each side, you may need to sign on again into Weights
& Measures mode to see values for the meter totals for that side. Since the displays for
each “side” of the dispenser show on both the front and back of the dispenser on these
models, the software cannot determine the side of the dispenser by just the location of
the remote. Reference the Meter Number Assignments table in Section D.12 in Appendix
D if you need assistance in determining how meter numbering relates to the hoses.
The Weights & Measures mode is comprised of multiple level menus. The upper level
menu allows you to scan through the various choices that are available. When you reach
a category where you want more information, you can choose that menu to view the
additional information. You do not need a security code to access or obtain information
through the Weights & Measures mode. The cabinet does not need to be opened to
access this mode.
Clear
Next
Enter

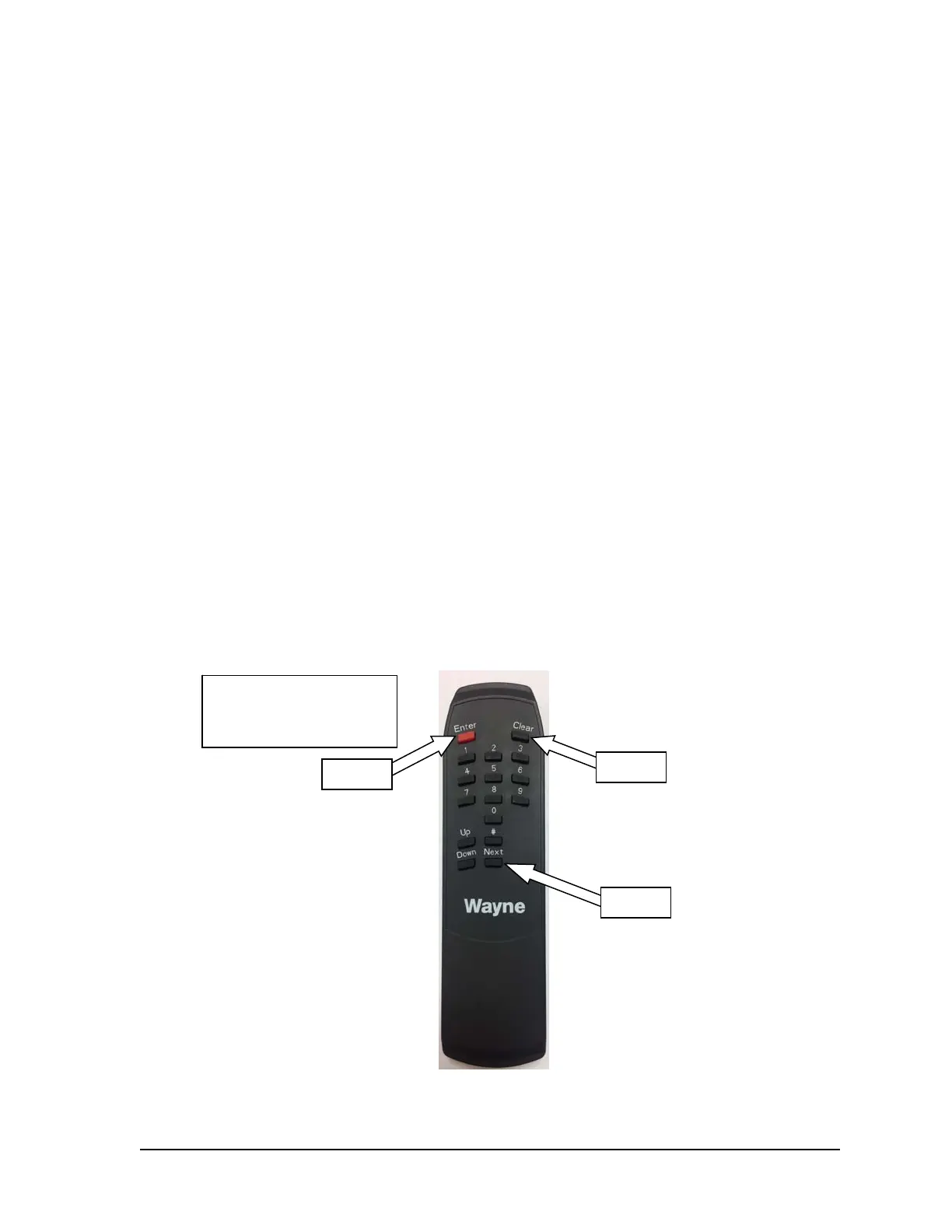

Infrared Remote
Control
DFS PN: WM002290
