Dover Wayne Select S1 User Manual

62 Dover Fueling Solutions W2940305 Rev 07 8/2019
RS485
Gallons
$
$ Price Per Gallon $ Price Per Gallon
$
Gallons
RS485
CAT RS485
Field Wiring
Forecourt
Controller
Dispenser Current Loop
Field Wiring
Ethernet Port
Switch
TCP
POS
iX Gateway
TCP
Router
Modem
TCP
TCP
C.3 Site Layouts
The following site layouts show various general configurations when a T7 payment terminal is
involved. Site configurations without a payment terminal will use the current loop wiring shown in this
section. For sites using iXFleet, see the iXFleet section for the general site layout. Use the current
loop wiring shown in this section for the dispenser connections when using an iXFleet system.

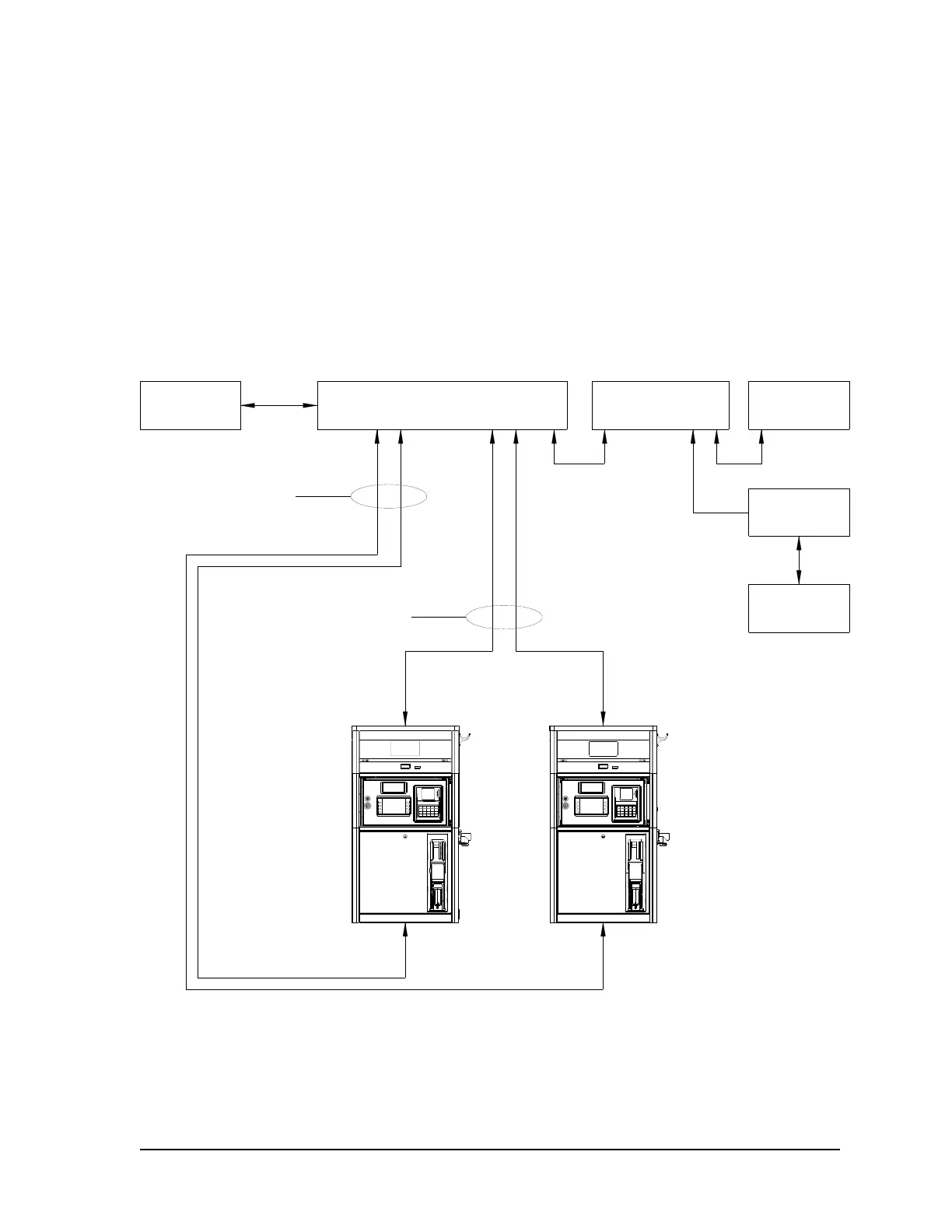

Site Layout A
Dispenser: Current Loop
Payment Terminal: RS485
This site configuration can run Payment Terminals (CATs) that are not running in the EMV mode.
