Dover Wayne Select S1 User Manual

W2940305 Rev 07 8/2019 Dover Fueling Solutions 71
Current
Loop B
Current
Loop A
Current
Loop B
Current
Loop A
Current
Loop B
Current
Loop A
HyperPIB
Data Distribution CabinetData Distribution Cabinet
TB2
9
10
11
12
13
14
15
16
8
7
6
5
4
3
2
1
Dispenser
Dispenser
Dispenser
DispenserDispenser
Dispenser
Dispenser
DispenserDispenser
Dispenser
Dispenser
Dispenser
Dispenser
Dispenser
Dispenser
DispenserDispenser
Dispenser
Dispenser
Dispenser
Dispenser
Dispenser
Dispenser
Dispenser
+
-
-
+
+
-
-
+
TB1
TB3
TB4
TB2
12 4
365
TB5 TB6
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
+
--
++
--
+
Data
In
Data
Out
Data
In
Data
Out
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
12
3
4
56
Bypass
Auto
Auto
Bypass Bypass
AutoAuto
Bypass
65
4
3
21
8
7
6
5
4
3
2
1
8
7
6
5
4
3
2
1
Data
Out
Data
In
Data
Out
Data
In
+
--
++
--
+
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
+
-
-
+
1
2
3
4
5
6
7
8
8
7
6
5
4
3
2
1
TB6TB5
563
421
TB2
TB4
TB3
TB1
+
-
-
+
+
-
-
+

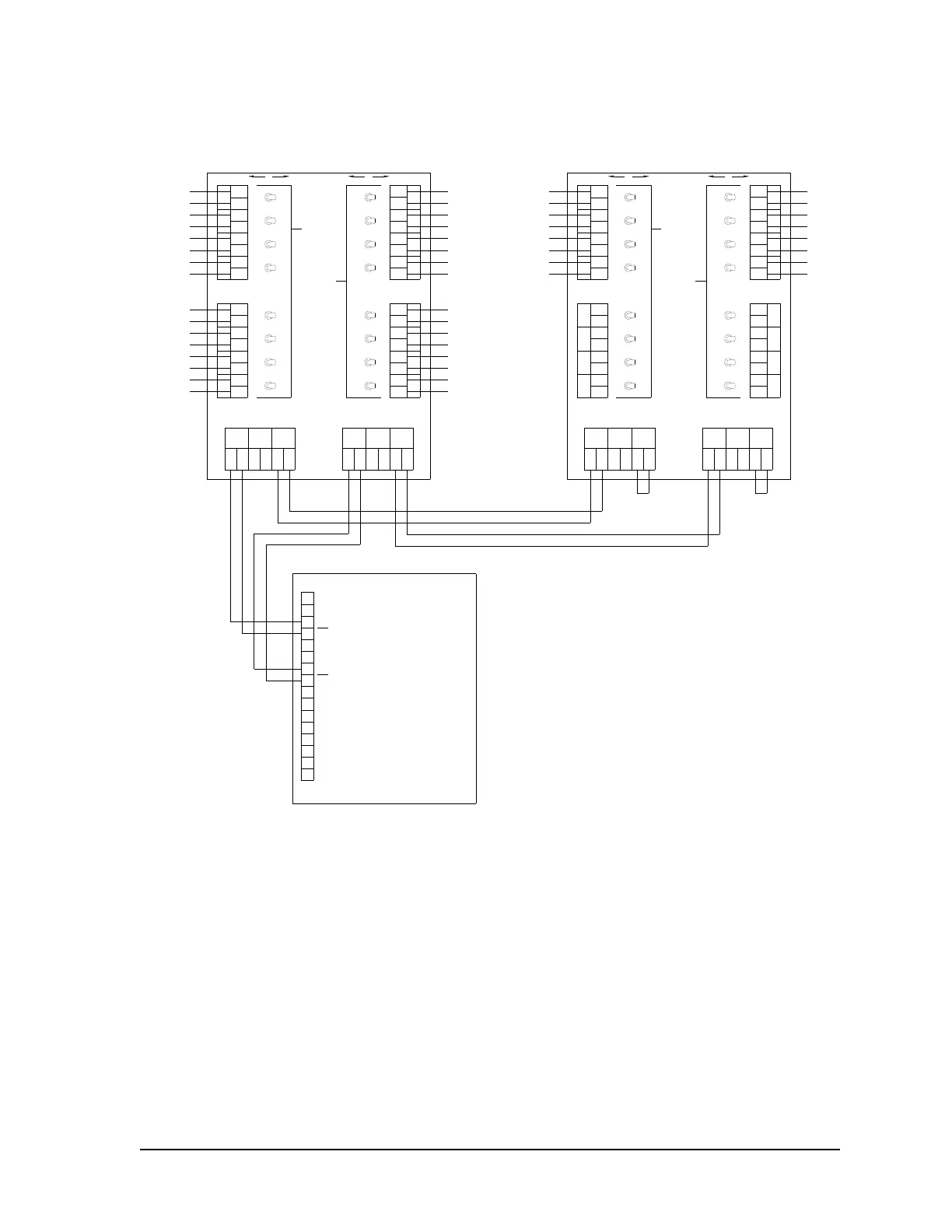

C.8 Wiring Using Two Data Distribution Cabinets (Up to 24 dispensers)
Notes:
1. Two Current Loops are provided for communication to the dispensers from the HyperPIB.
Evenly distribute the dispenser loads across both loops in the Data Distribution Cabinets.
2. All unused dispenser positions in the Data Distribution Cabinets should be jumpered in
the cabinet with the switch placed in the “Auto” position. This practice reduces the overall
load on the loop.
3. Each loop in this configuration is limited to 12 dispensers and a total wire length of 1800
feet. This length of 1800 feet includes the distance between the HyperPIB and the Data
Distribution Cabinet, the distance between the first and second Data Distribution Cabinet,
and the distance between each dispenser and the Data Distribution Cabinets.

Dover Wayne Select S1 Specifications

General

Brand	Dover
Model	Wayne Select S1
Category	Dispenser
Language	English
