Dover Wayne Select S1 User Manual

64 Dover Fueling Solutions W2940305 Rev 07 8/2019
CAT RS485
Field Wiring
Dispenser Current Loop
Field Wiring
Forecourt
Controller
POS
RS485
TCP
Gallons
$
$ Price Per Gallon $ Price Per Gallon
$
Gallons
TCP
RS485
Ethernet Port
Switch
TCP
iX Gateway
TCP
Router
Modem
TCP
TCP
WC
Wireless
Wayne Connect
Wireless
Access Point
TCP
WC
Wireless

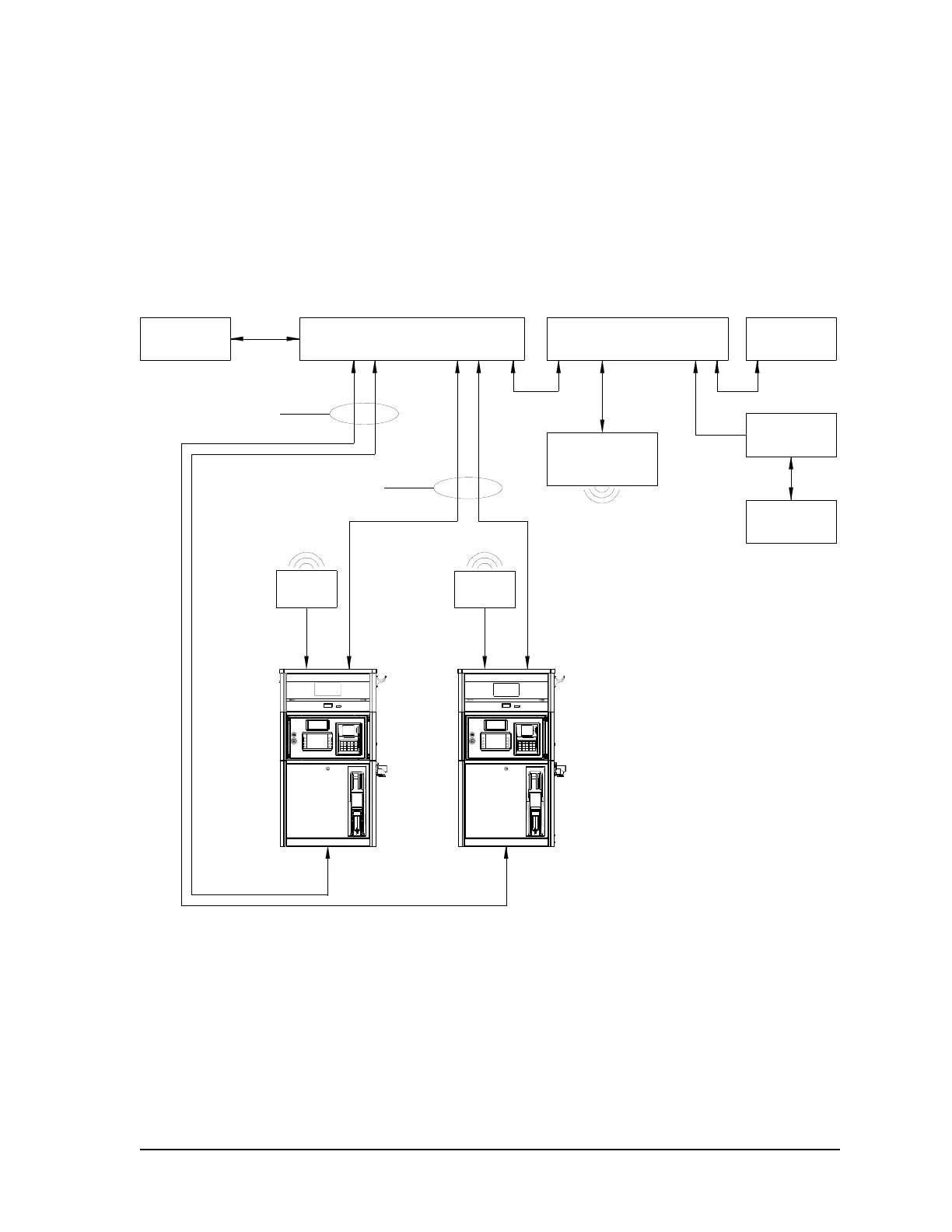

Site Layout C
Dispenser: Current Loop
Payment Terminal: RS485
Ethernet via Wayne Connect Wireless
This configuration will work for Payment Terminals (CATs) running in the non-EMV or EMV mode. It
can also handle Wayne iSense
TM
remote monitoring, Wayne iX Media
TM
platform, and Wayne
inOvationTV
TM
media.
