Dover Wayne Select S1 User Manual

W2940305 Rev 07 8/2019 Dover Fueling Solutions 63
Gallons
$
$ Price Per Gallon$ Price Per Gallon
$
Gallons
TCP
RS485
POS
Forecourt
Controller
Dispenser Current Loop
Field Wiring
CAT RS485
Field Wiring
CAT Ethernet
Field Wiring
TCP
TCP
Modem
Router
TCP
iX Gateway
TCP
Ethernet Port
Switch
RS485
TCP

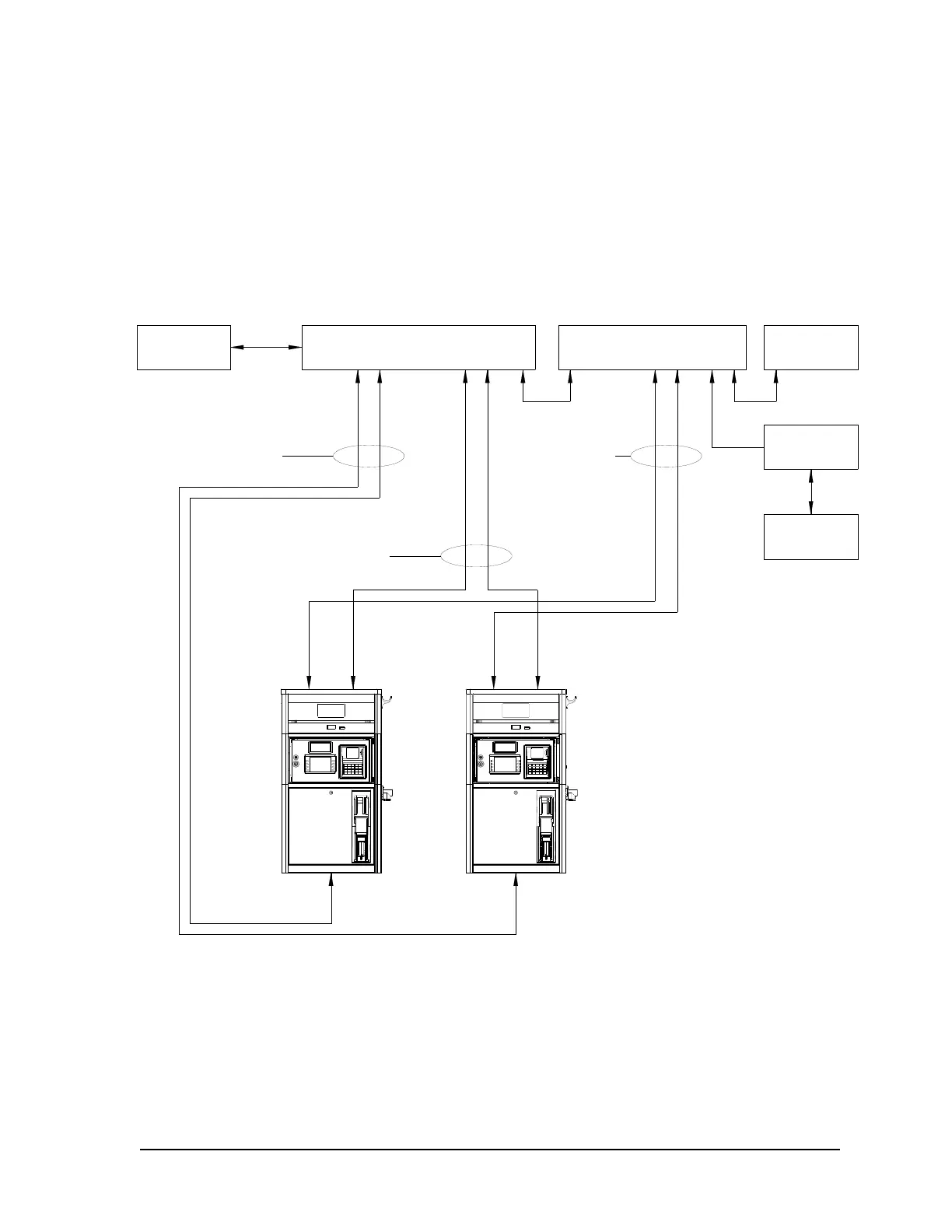

Site Layout B
Dispenser: Current Loop
Payment Terminal: RS485
Ethernet via Hardwired Connection
This configuration will work for Payment Terminals (CATs) running in the non-EMV or EMV mode. It
can also handle Wayne iSense
TM
remote monitoring, Wayne iX Media
TM
platform, and Wayne
inOvationTV
TM
media.

Dover Wayne Select S1 Specifications

General

Brand	Dover
Model	Wayne Select S1
Category	Dispenser
Language	English
