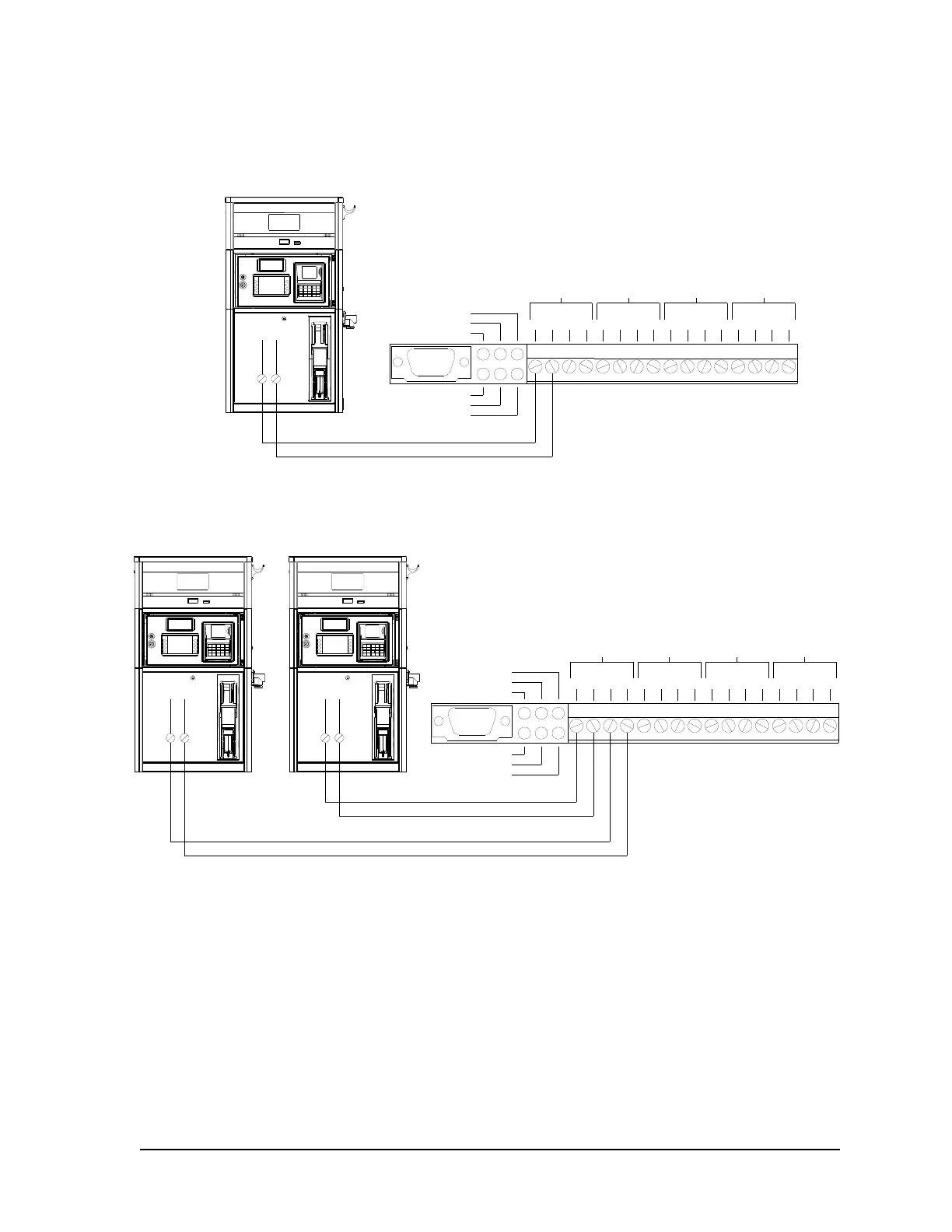

C.9 Payment Terminal RS485 Wiring
Payment Terminal to Fusion Forecourt Controller, Fusion V2
Notes:
1. Each channel can handle the Payment Terminals (CATs) in up to 2 dispensers (for up to
a total of 4 fueling positions).
2. The total length of field wiring is limited to 2000 feet for each channel (using stranded 18
AWG wire). The 2000 feet includes the total length of wiring to handle the Payment
Terminals in both dispensers.
3. For full details of Wayne control systems interconnections see the
Wayne Fusion
TM
1000/3000 Forecourt System HyperPIB, PAM
TM
Emulation, and Console manual (PN
000-940039-).
