Dover Wayne Select S1 User Manual

W2940305 Rev 07 8/2019 Dover Fueling Solutions 15
Solenoid Valve
(Anti-Siphon)
Gate Valve
(Block Valve)
Submersible
Pump
Expansion
Relief Valve
1-1/2" Emergency
Double-Poppet
Shear Valve
Electrical
Conduit
Shelf
Bracket
(If Solenoid Valve
has pressure relief,
separate relief
valve is not needed.)
1-1/2" Supply
Line
Cutaway
View
Select S1
Conduit
Seal-off
Bollards
3 Installation
3.1 Equipment Inspection
 Examine the shipment immediately upon arrival to make certain there has been no
damage or loss in transit. Make sure that all the component parts are accounted for,
including keys and any optional equipment.
 Check and save the Packing Slip, Bill of Lading, Invoice, and all other documents
included in the shipment.
 Damaged or lost equipment must be reported to the carrier. Any damage or loss that may
occur in transit is not covered under the DFS Warranty.

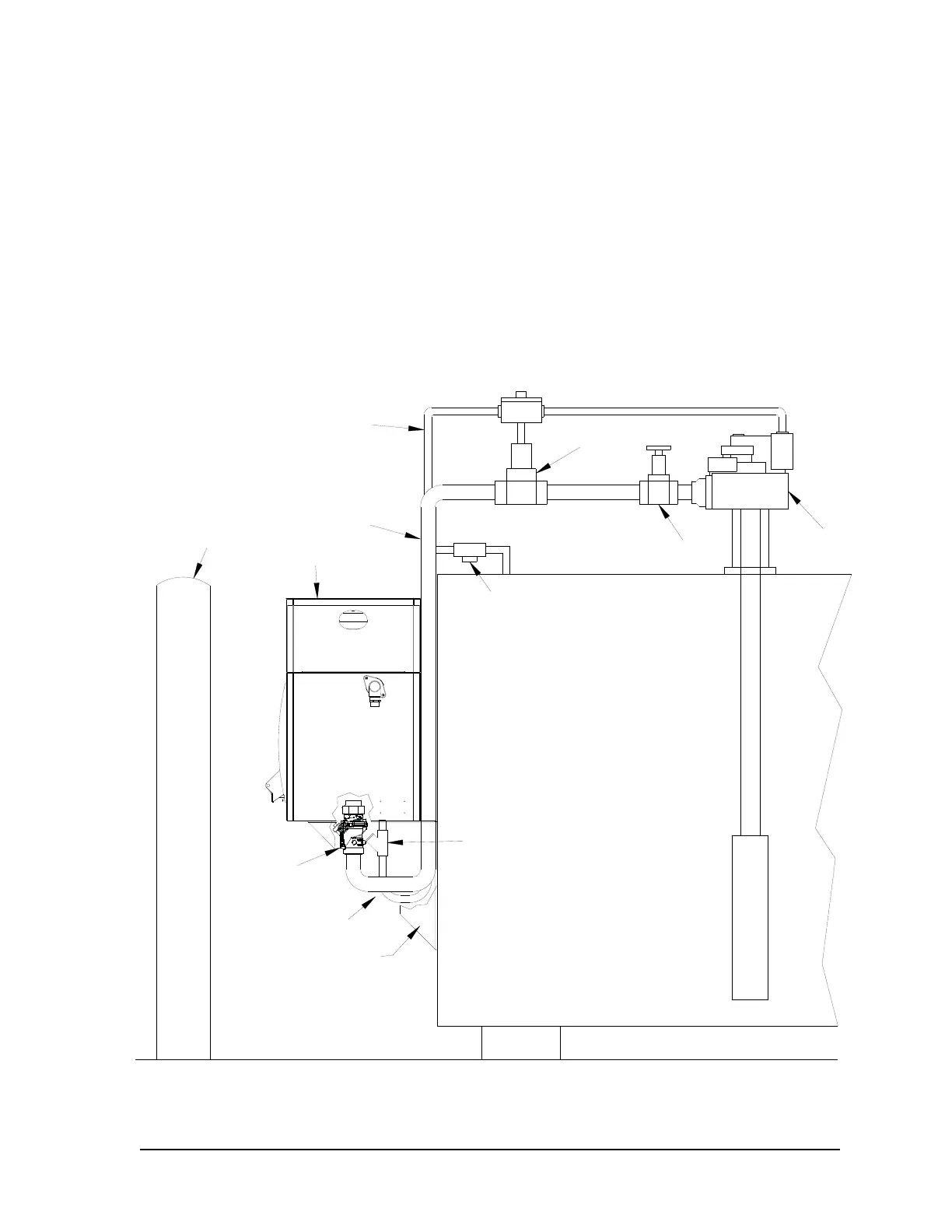

3.2 Typical Site Layout

Dover Wayne Select S1 Specifications

General

Brand	Dover
Model	Wayne Select S1
Category	Dispenser
Language	English
