Fresenius Medical Care 4008 S Service Manual

Chapter 10: Servicing / repair
Fresenius Medical Care 4008 S (Version V10) SM-EN 7/01.13 10-3

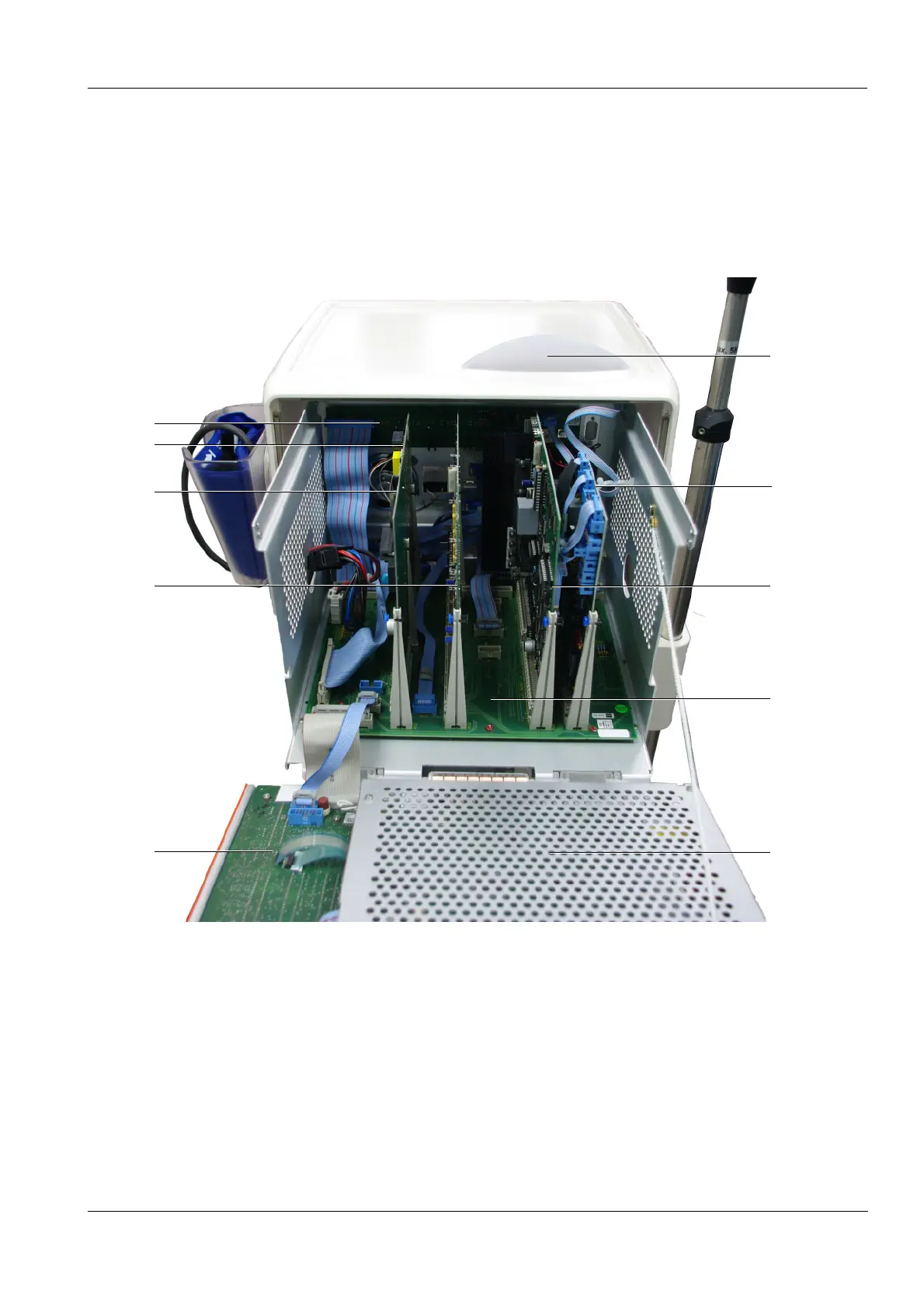

10.3 Component overview
10.3.1 Monitor
1 Operation status indicator (traffic light) with
P.C.B. LP 1131
6 P.C.B. LP 922 Display board
2 P.C.B. LP 763 Interface board 7 P.C.B. LP 633-5 Input board
3 P.C.B. LP 634 Output board 8 P.C.B. LP 1631 CPU 1
4 P.C.B. LP 630 Motherboard 9 P.C.B. LP 632 CPU 2
5 MDC-II board 10 P.C.B. LP 636 External connectors
4
5
3
1
10
9
8
7
6
2
