Chapter 11:
Functional
description
Fresenius
Medica
l
Care
4008
S
(Version
V10)
SM-EN
7/01.13
11-63
11.2.16

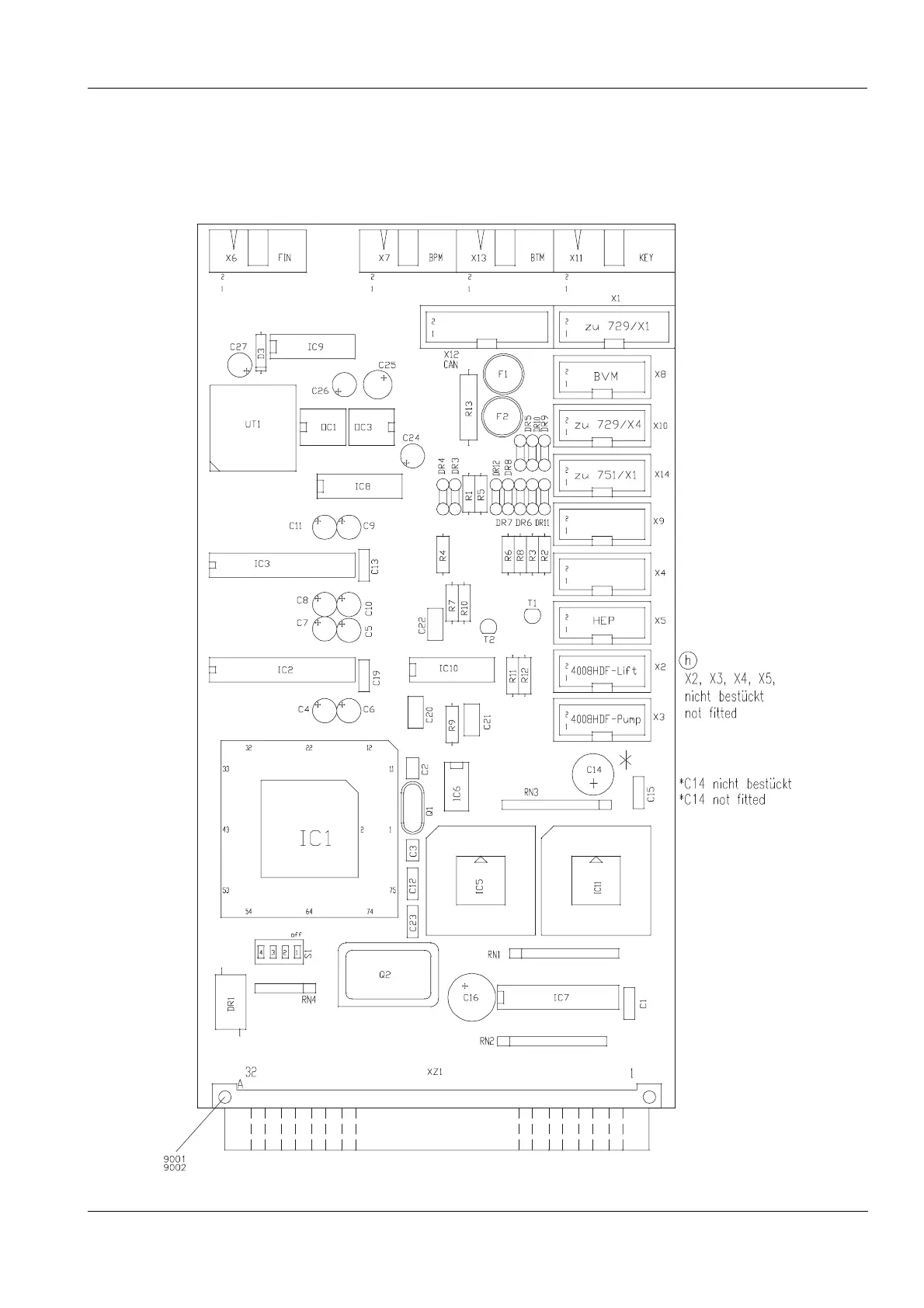

P.C.B. LP 763 Multi-in
terface board (COMMCO III)
Fig.: P.C.B. LP
763 layout D
392
