2 Product Overview
28
Product Overview
2

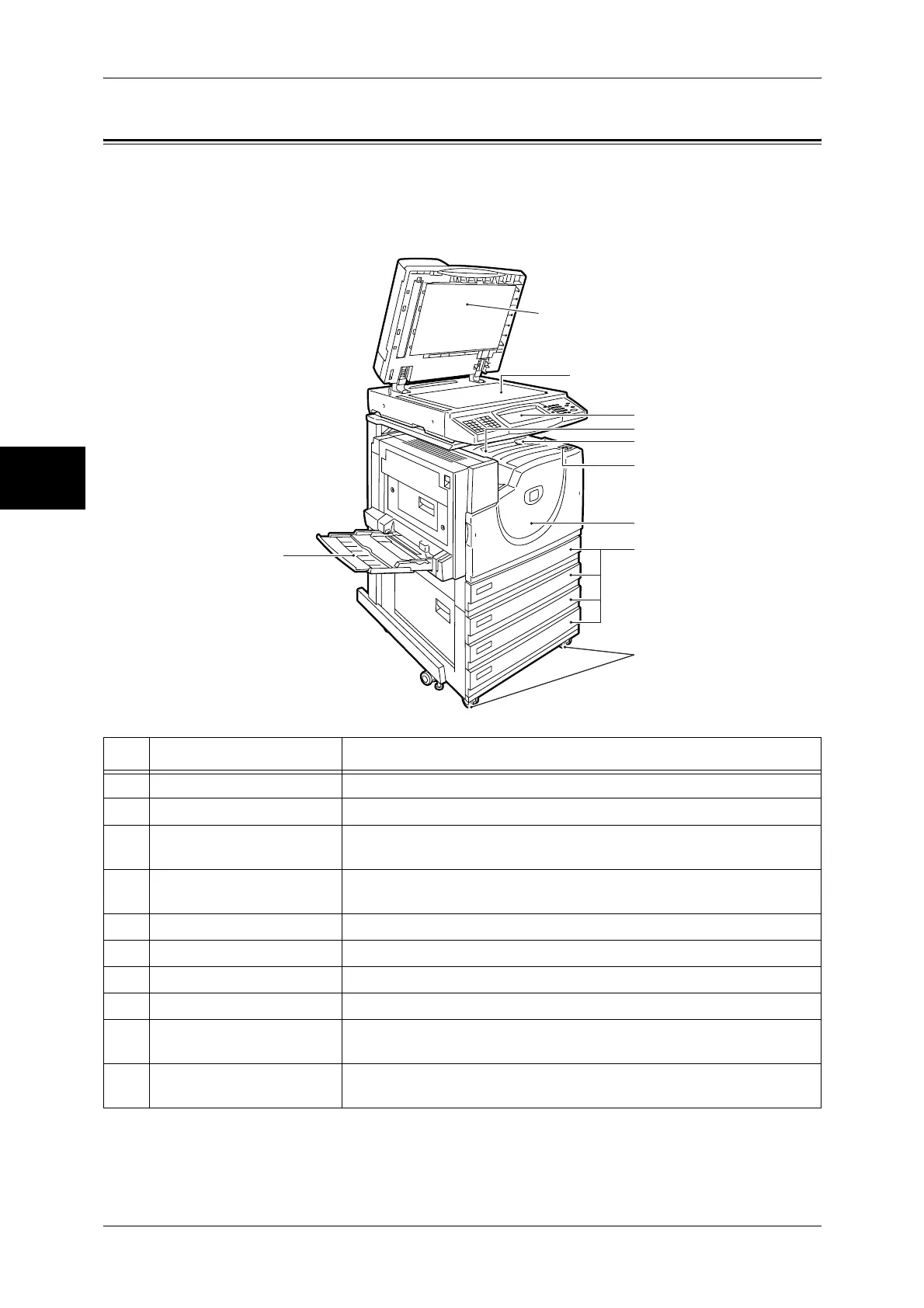

Machine Components
This section describes the machine components and functions of the machine.
îš„4 Tray Model
No. Component Function
1 Document cover Holds the document down.
2 Document glass Originals are loaded here.
3 Control panel Consists of operation buttons, LED indicators and a touch screen.
Refer to "Control Panel" (P.41).
4 Center output tray
(Output tray)
Printed or copied documents are delivered with the printed side facing
down.
5 Paper stopper Set upright for use when making copies or prints.
6 Power switch Switches the power of the machine on/off.
7 Front cover Open this cover to replace consumables.
8 Tray 1, 2, 3, 4 (optional) Accommodates paper.
9 Tray 5 (Bypass) Used for loading non-standard paper (thick-stock paper, and other
special media) that cannot be loaded in the Trays 1 to 4.
10 Locking casters Used for locking the wheels of the machine. Lock these casters after
moving the machine to its installation site.
5
6
7
8
10
9
1
3
4
2
To Next Page
