Chapter 5 Operations after OS Installation
5.6.3 VLAN Setup Procedure
1 Start up BACS. The procedure differs depending on the OS being used.
For Windows Server 2003 / Windows Server 2003 x64
1. Click [Start] → [Control Panel] → [Broadcom Control Suite 2].
For Windows 2000 Server
1. Click [Start] → [Settings] → [Control Panel].
The [Control Panel] window appears.
2. Start up "Broadcom Control Suite 2".
2 Right-click a LAN adapter or the Team name of a Teamed Up adapter and click
[Add VLAN] from the displayed menu.
 A LAN adapter is displayed with a mark.
 The Team name of a Teamed Up adapter is displayed with a mark.

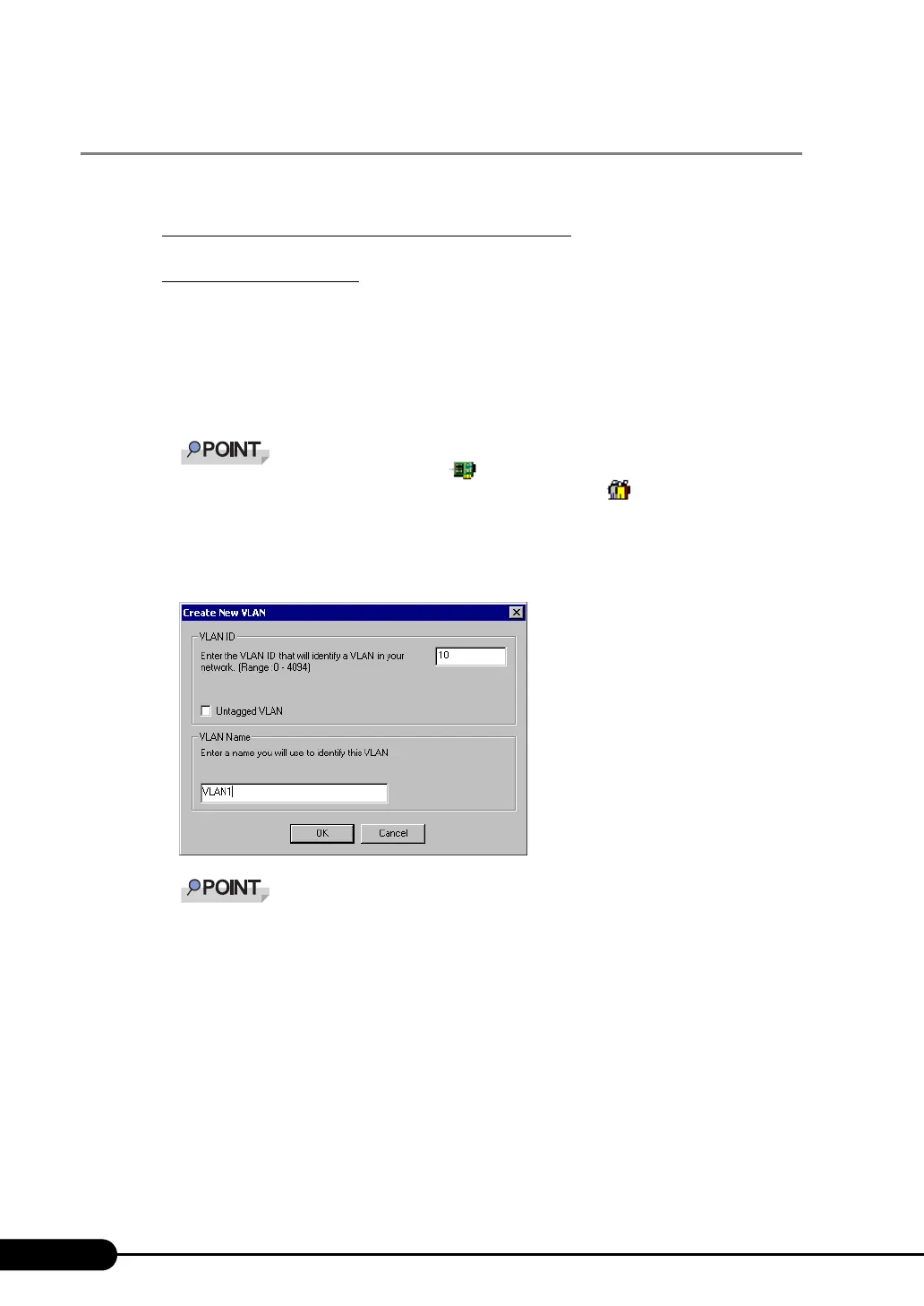

3 Specify [VLAN ID] and [VLAN Name] in the [Create New VLAN] window.
The [VLAN ID] should be identical with the switch setting.
The [VLAN Name] does not need to be identical with the switch setting.
 You cannot use a "VLAN ID" or "VLAN Name" that has already been used. Enter another set
value.
4 When the setting for the team is completed, click [OK].
5 Click [Apply] to apply the settings.
After the network is temporarily disconnected, a window is displayed. Click [Yes (Y)].
