199
PRIMERGY RX100 S3 User’s Guide
Installing Internal Options
7
7.7 Connection of Optional Devices
This section explains the connection of optional devices.
7.7.1 Connecting an External SCSI Option
The following shows connection examples of external SCSI options using SCSI card.
Connection conditions vary depending on examples. See each example.

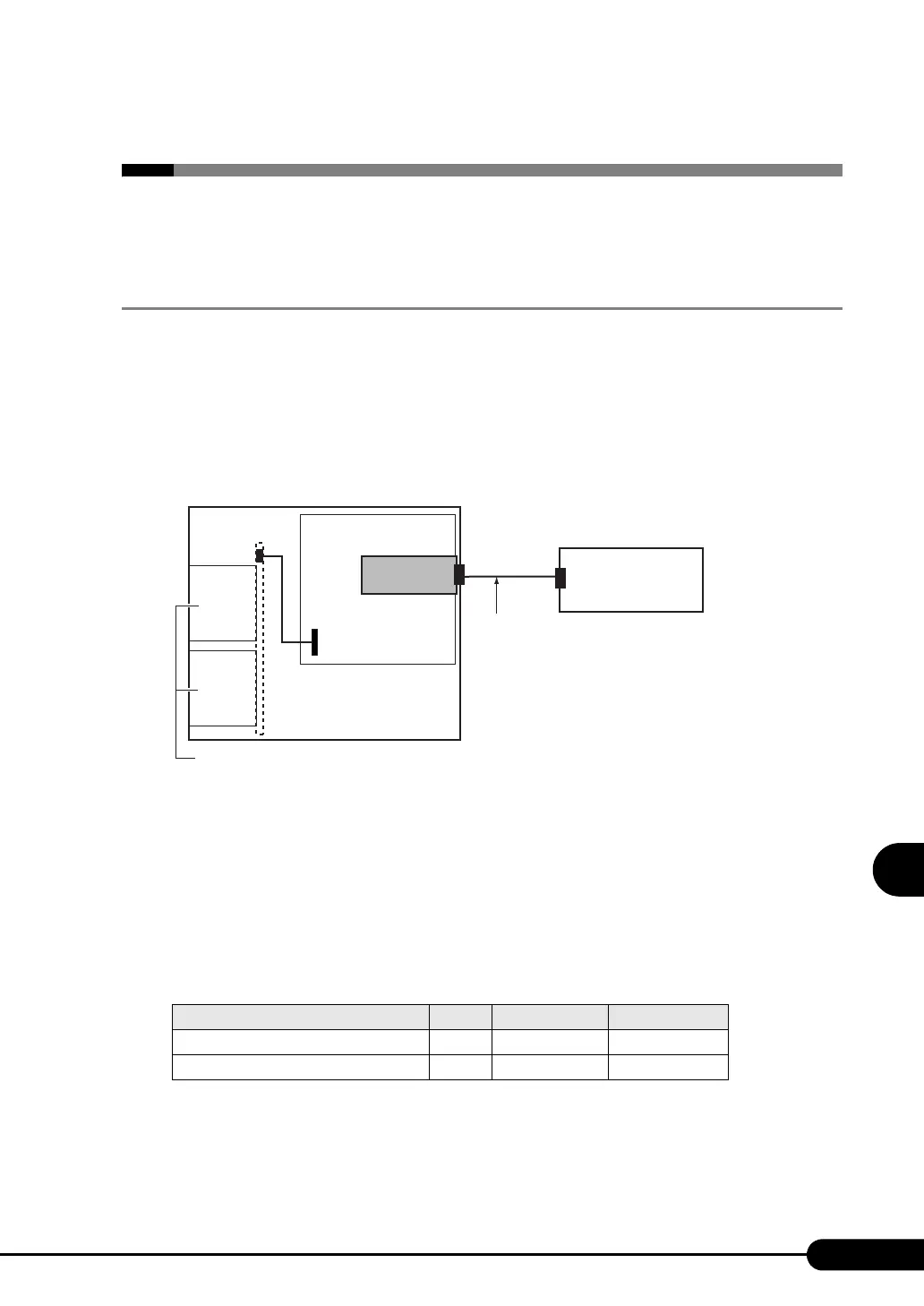

■ Connecting the Backup Cabinet
Connect the backup cabinet as shown below.
Only a single backup cabinet can be connected to the server.
■ Notes on External SCSI Options
● SCSI-ID Setting
Note that the settings of each device do not overlap.
● SCSI Cable
Select appropriate SCSI cables to connect the external SCSI option as usage.
table: List of SCSI Cables
Connector types Length Model Remarks
VHDCI 68 pin. Half pitch 68 pin 1.8m PG-CBLS007 Option
VHDCI 68 pin. Half pitch 68 pin 5m PG-CBLS008 Option
[Server]
Baseboard
SCSI cable
䋨PG-CBLS007 / PG-CBLS008䋺Option)
Backup cabinet
䋨PG-R1BC4㧕
Internal hard disk unit
䌓䌃䌓䌉 Ctrl U160 lp
(䌐䌇-1301L)
PRIMERGY SX10
