24
Chapter 1 Overview
i Hard disk access display LED ( )
This LED lights green when data is being written to or read from the hard disk.
j Front maintenance LED ( )
When ServerView has been installed, this LED is lit in amber at the time of the onboard SCSI
array controller logical drive initialization/rebuilding, however, this is normal operation.
This LED lights or blinks in amber when an error is detected in the server components. If this
LED lights or blinks other than drive initialization/rebuilding, contact an office listed in the
"Contact Information" of "Start Guide".
k Power LED ( )
This LED is lit green when the server is turned on.
This is lit amber when the server is not turned on (standby mode).
This does not light when the power cable is unplugged from the outlet.

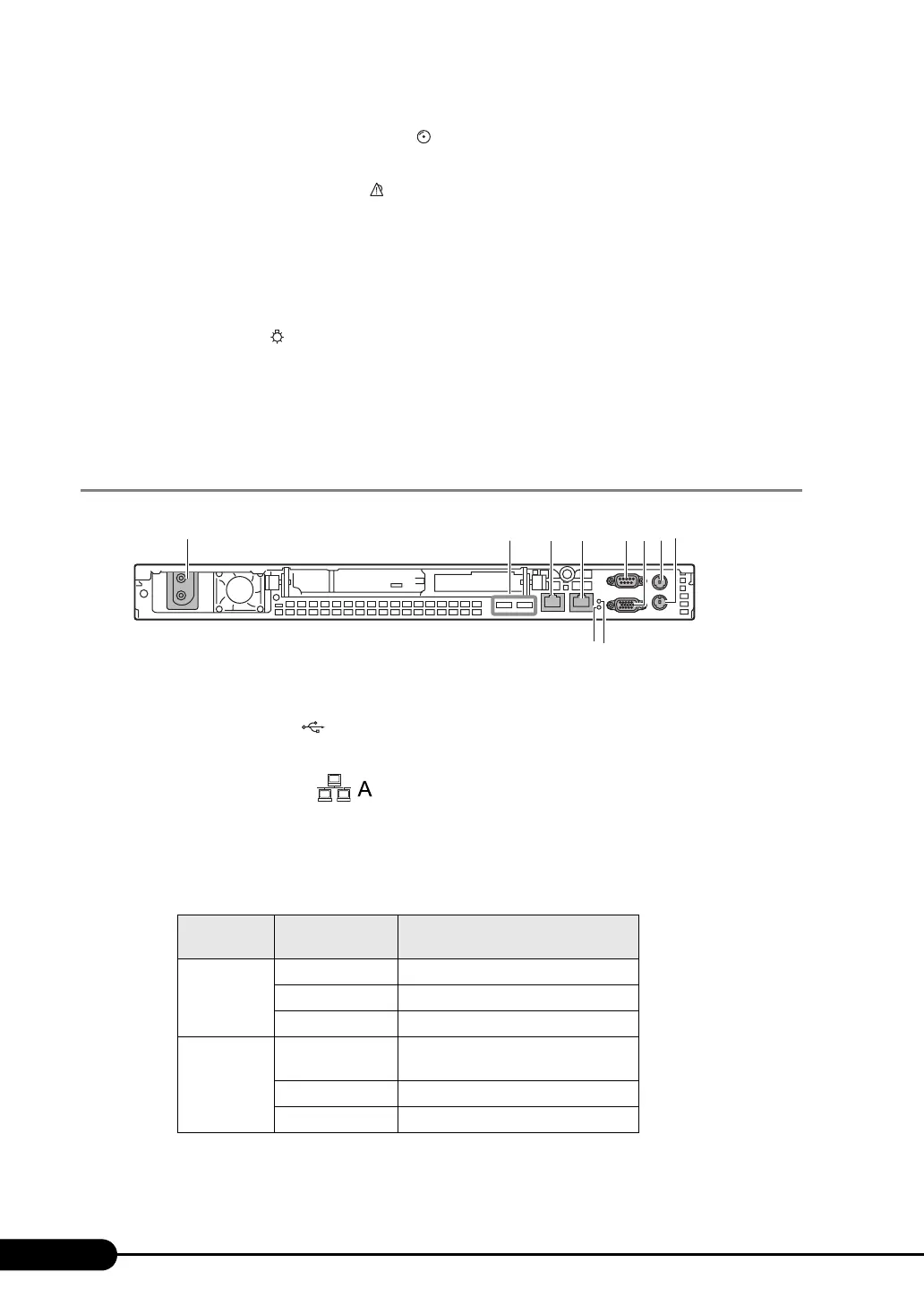

1.3.2 Server (Rear View)
a Inlet
AC power cables are plugged in.
b USB connector ( )
Connects peripheral equipment conforming to the USB standard (2.0 or 1.1).
c LAN connector A ( )
An Unshielded Twisted Pair (UTP) cable is plugged in. For 1000Mbps connection, a cable
conforming to category 5 enhanced is required.
The meanings of the two LED are shown in the table below.
table: LAN connector LED
LED
location
LED status LAN status
Left ON (green) Link is being established.
Blinking (green) Data is being transferred.
OFF Link is not established.
Right ON (amber) Connection is established at
1000Mbps.
ON (green) Connection is established at 100Mbps.
OFF Connection is established at 10Mbps.
abd
i
j
cefgh
