Page 5-16 LMM for the Kodiak 100
190-02102-00 Rev.4
5.2.16 Configuration Module Replacement
Figure 5-1. Configuration Module Installation

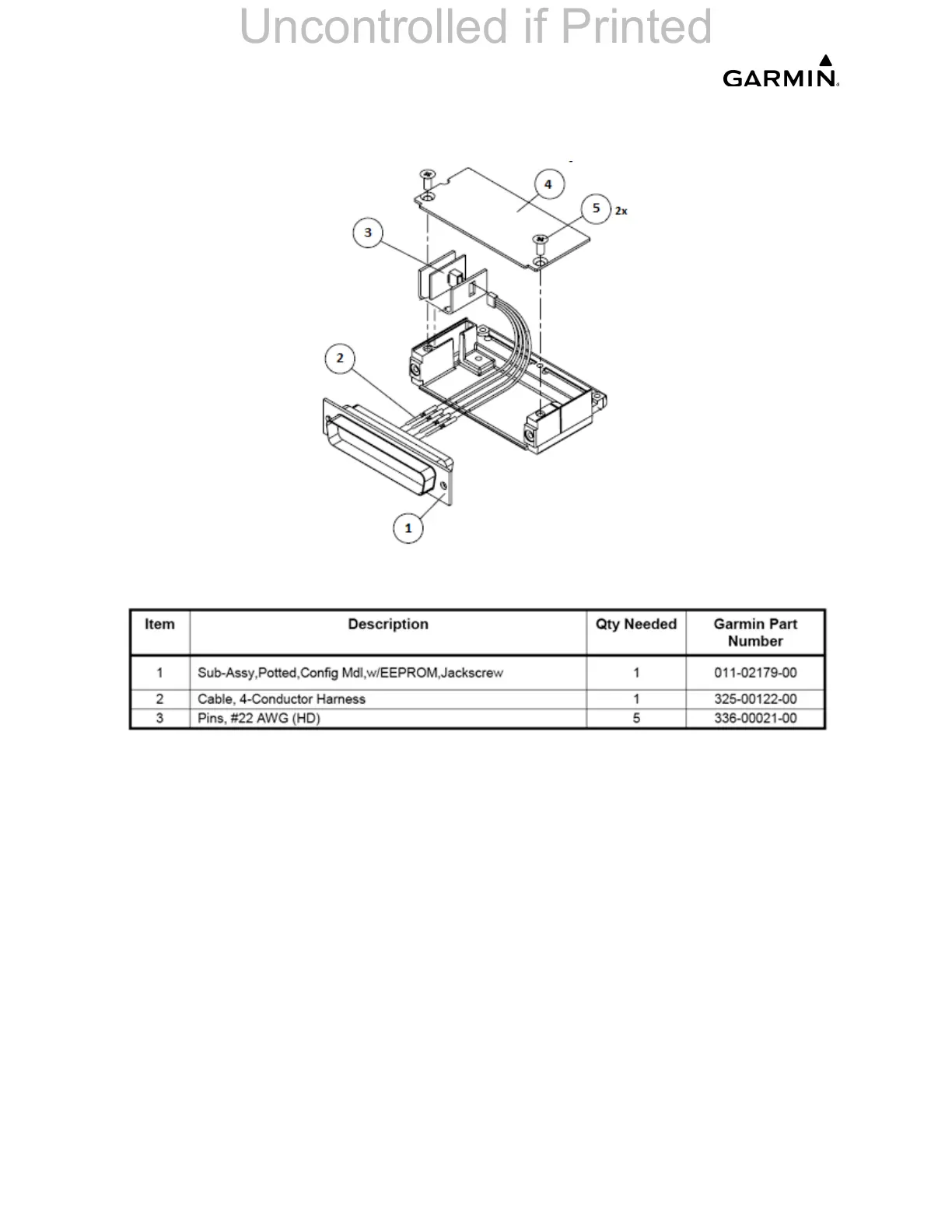

Figure 5-2. Configuration Module Kit - 011-00979-03
1. To Remove:
a) Disconnect the connector (1) from the LRU.
b) Remove the two screws (5) from the cover (4) and remove the cover.
c) Unplug the connector from the configuration module (3).
d) Remove the configuration module.
