LMM for the Kodiak 100 Page 2-11
190-02102-00 Rev.4
2.3 System Operation
2.3.1 G1000 NXi System Controls
Control and operation of G1000 NXi equipment as normally used in flight occurs through
the PFD and MFD bezel controls, the GMA 1360D Audio Panel faceplate buttons, and
the GMC 710 AFCS Controller.
2.3.1.1 PFD/MFD Controls
Figure 2-3 and Table 2-2 identify controls available on the GDU bezels.

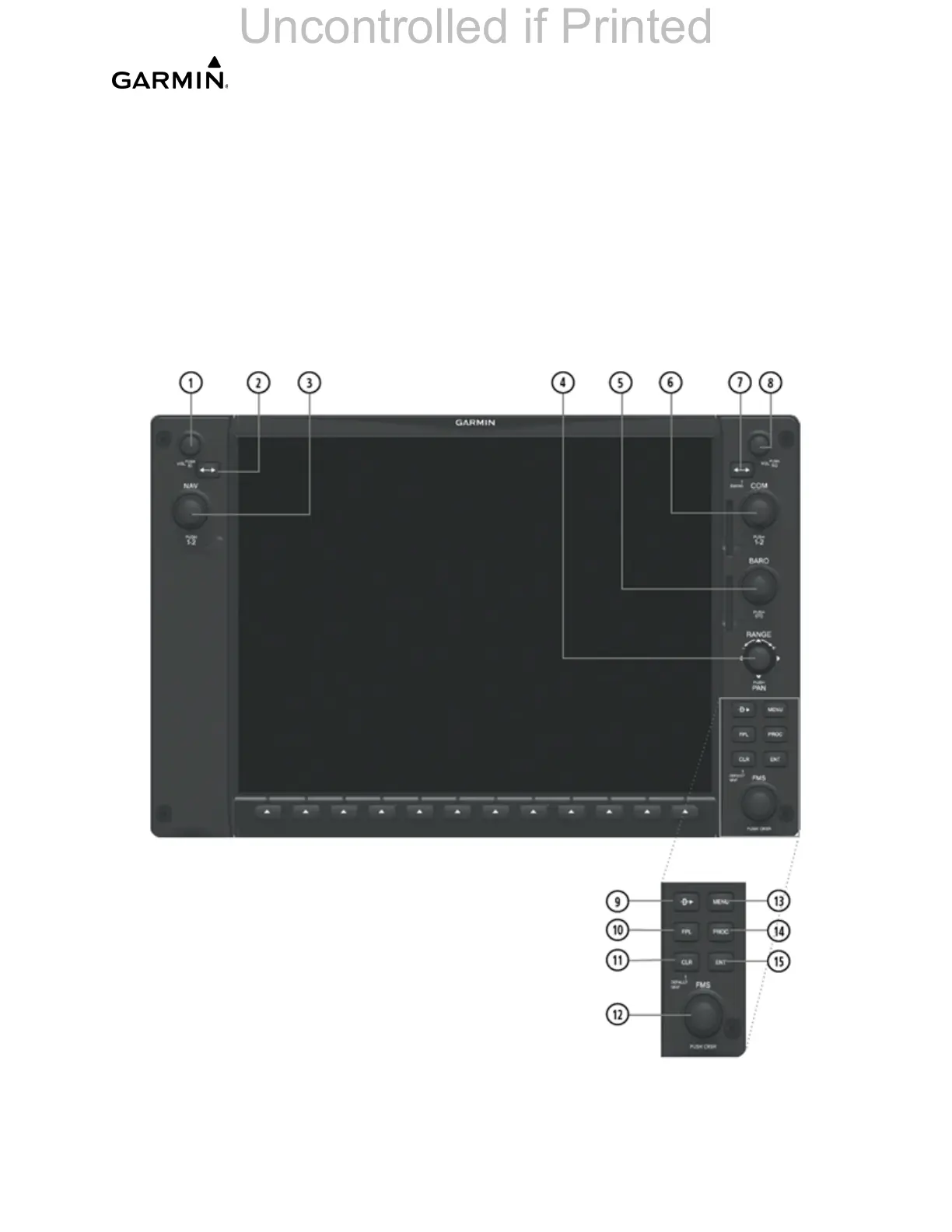

Figure 2-3. GDU Controls
