Page 5-18 LMM for the Kodiak 100
190-02102-00 Rev.4
5.2.17 GEA 71B Backshell Thermocouple Removal and Replacement
The GEA 71B has a K-Type thermocouple (Item 1 shown below) installed in its back-
shell, in addition to the configuration module. The thermocouple is used in conjunction
with the configuration module temperature sensor to compensate for temperature probe
errors resulting from the dissimilar metals at the pin contacts.

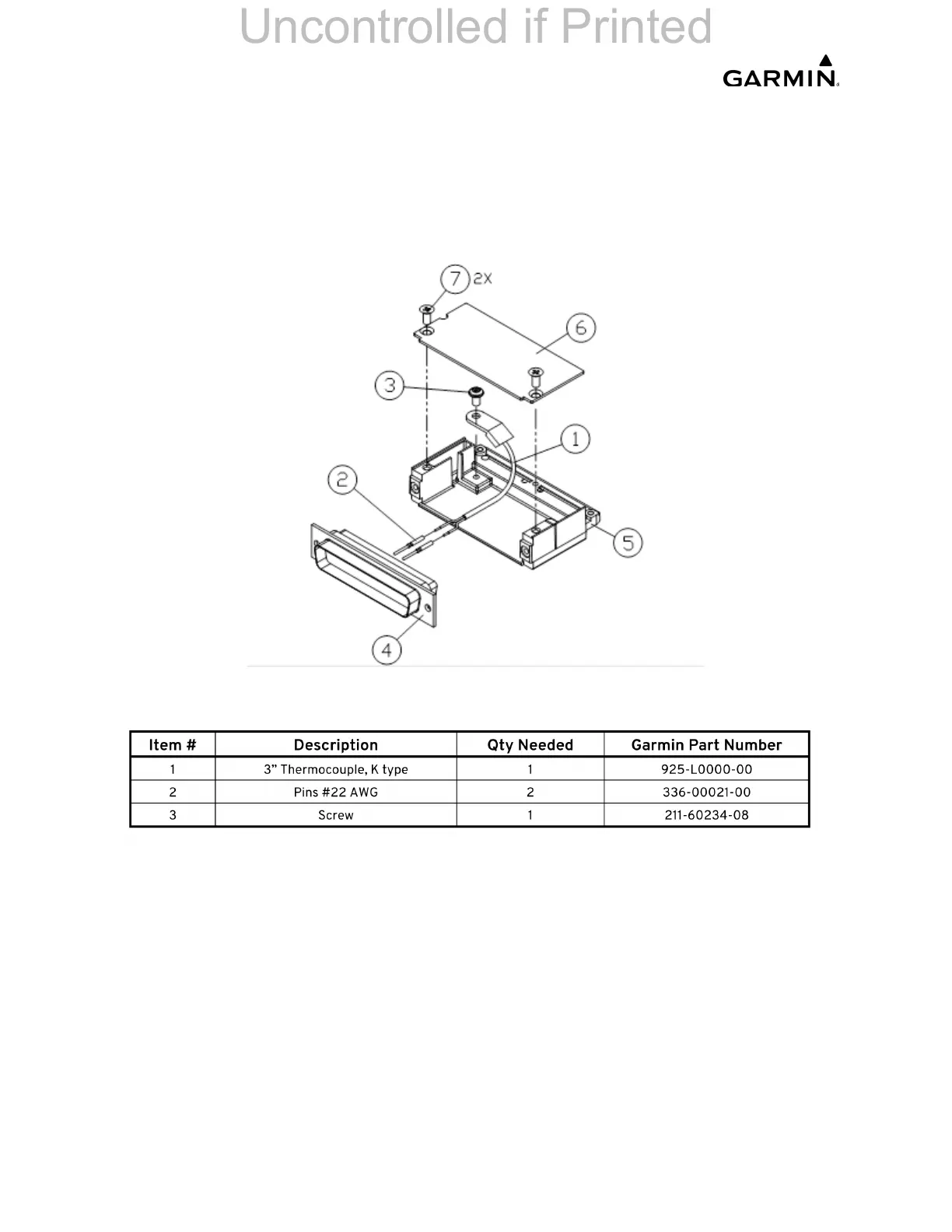

Figure 5-3. GEA Backshell Thermocouple
Figure 5-4. Thermocouple Kit (011-00981-00)
