Page 7-8 LMM for the Kodiak 100
190-02102-00 Rev.4
7.4 GEA 71/71B Engine and Airframe Interface Unit
If the unit is removed or replaced, the following tests are recommended:
1. The system Engine Indication System (EIS) displays critical engine, electrical,
fuel, and other system parameters on the left side of the Multi Function Display
(MFD) during normal operations.

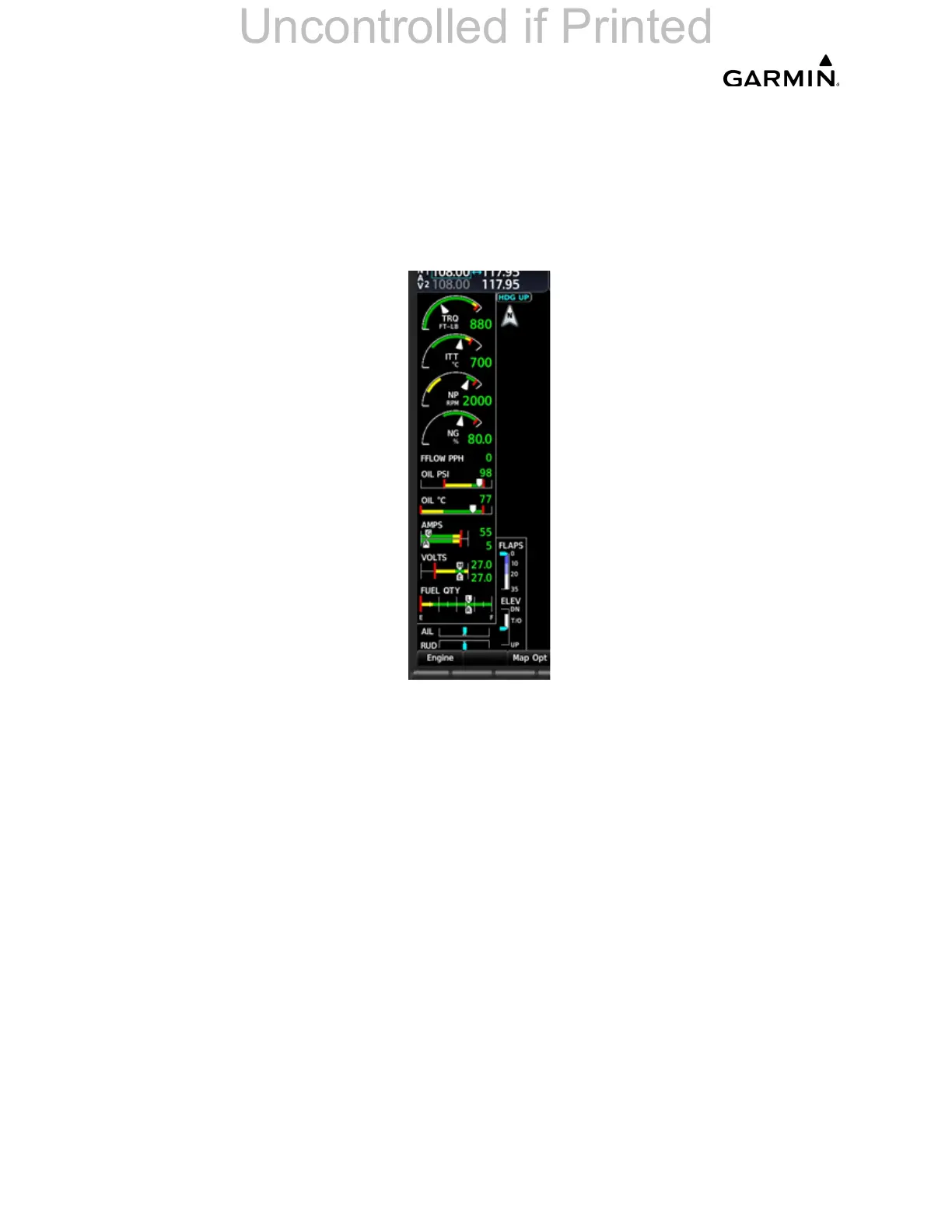

Figure 7-4. Engine Indication System-MFD
2. The Kodiak 100 EIS instrument types include vertical slider gauges, horizontal
bar indicators, digital displays, and slide bars. Green bands and displays indicate
normal ranges of operation; amber and red bands and displays indicate caution
and warning, respectively. When unsafe operating conditions occur, displays,
pointers, and labels may change color and flash corresponding to the level of the
condition. If sensor data to an instrument becomes invalid or unavailable, a red X
is shown across the instrument.
3. Values/gages red X outside of display range. EIS information is presented in two
displays, accessed using the ENGINE Softkey on the MFD:
• Engine Display - Default display; shows all critical engine, fuel, and electrical
indicators.
• System Display - Shows numeric displays of critical engine, oil, ice protection,
and electrical indicators.
• Fuel Display - Shows numeric displays of oil, fuel indicators and calculations.
