LMM for the Kodiak 100 Page 3-5
190-02102-00 Rev.4

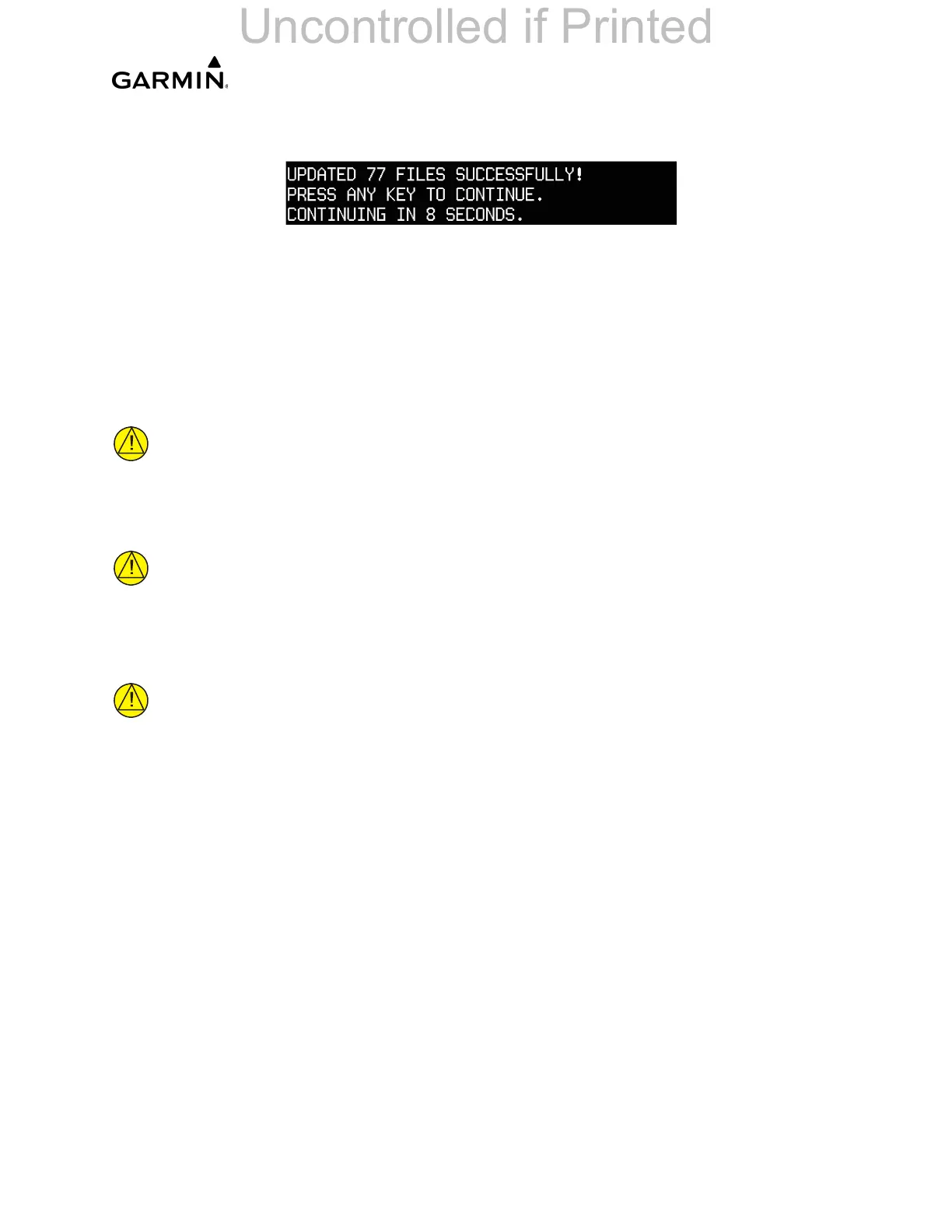

7. The following screen is displayed.
Figure 3-4. File Update Verification
8. Software is loaded to the display. When complete, the display starts in
configuration mode.
9. Repeat steps 1-8 for all displays that require the update.
10. Continue to the System Upload procedure.
3.4 System Upload for Software Versions 2633.00+ and 2634.00 to 2634.04
If the aircraft being modified has incorporated any modifications beyond
factory configuration that effect engine or airspeed limitations, your config-
uration may not be supported at this time. It is the responsibility of the
installer to ensure compatibility with existing modifications.
Do not allow power to be removed from the system when loading software.
Remove power only when instructed by the following procedures. As a
general rule, all displays should be in the same mode (configuration or nor-
mal) unless instructed otherwise.
For the rest of the software/configuration procedure, do not operate the
MFD or PFD2 while loading software or configuration unless specifically
instructed to do so. A failed or canceled load may result.
The first step is to load software to the MFD and PFDs. They do not come from the
factory with software installed. A file exists on the applicable SD card that contains GDU
software.
1. Insert the loader card into the top slot of PFD2.
2. Hold the ENT key on PFD2 and restore power by closing the PFD2 circuit
breaker.
3. When the words INITIALIZING SYSTEM appear in the upper left corner of PFD2,
release the ENT key.
4. Press the YES softkey to acknowledge the “DO YOU WANT TO UPDATE
SYSTEM FILES” prompt.
