LMM for the Kodiak 100 Page 2-27
190-02102-00 Rev.4

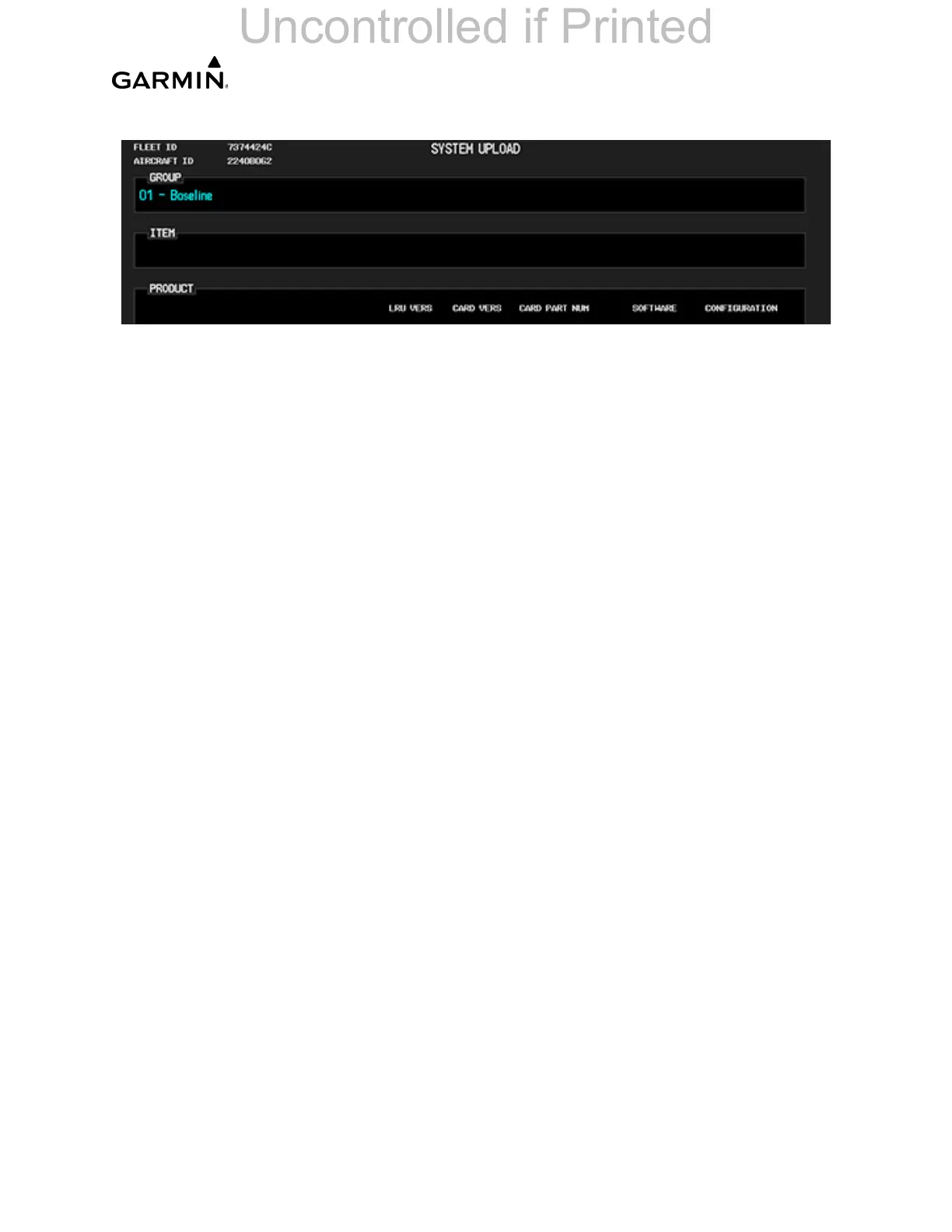

Figure 2-13. System Upload Page
The FMS knob is the primary control for the G1000 NXi system when in configuration
mode. It is located near the lower right corner of each display.
FMS Control Functions:
• To change page groups, turn the large FMS knob.
• To change pages in a group, turn the small FMS knob.
• To activate the cursor for a page, press the small FMS knob.
• To cycle the cursor through data fields, turn the large FMS knob.
• To change the contents of a highlighted data field, turn the small FMS knob. This
action either brings up an options menu for the field, or in some cases allows the
operator to enter data for the field.
• To confirm a selection, press the ENT key.
• To cancel a selection, press the small FMS knob. Pressing the small FMS knob
again turns the cursor off. The CLR key can also be used to cancel a selection or
to turn off the cursor.
2.3.6 SET>ACTV Configuration
Throughout the configuration mode pages, there are SET and ACTIVE columns for input/
output settings and other parameters.
• SET refers to a setting or group of settings that reside in PFD Internal Memory and/
or the Master Configuration Module.
• ACTIVE refers to an 'active' setting or parameter currently being used by the LRU.
LRUs store the 'active' settings within internal memory.
• A SET>ACTV (read 'Set to Active') softkey allows the installer to send the
information in the SET column (data stored in the master config module) to the
ACTV column (data used by LRU).
