GE Power Management
489 Generator Management Relay 4-23
4 SETPOINT PROGRAMMING 4.6 S5 CURRENT ELEMENTS
4

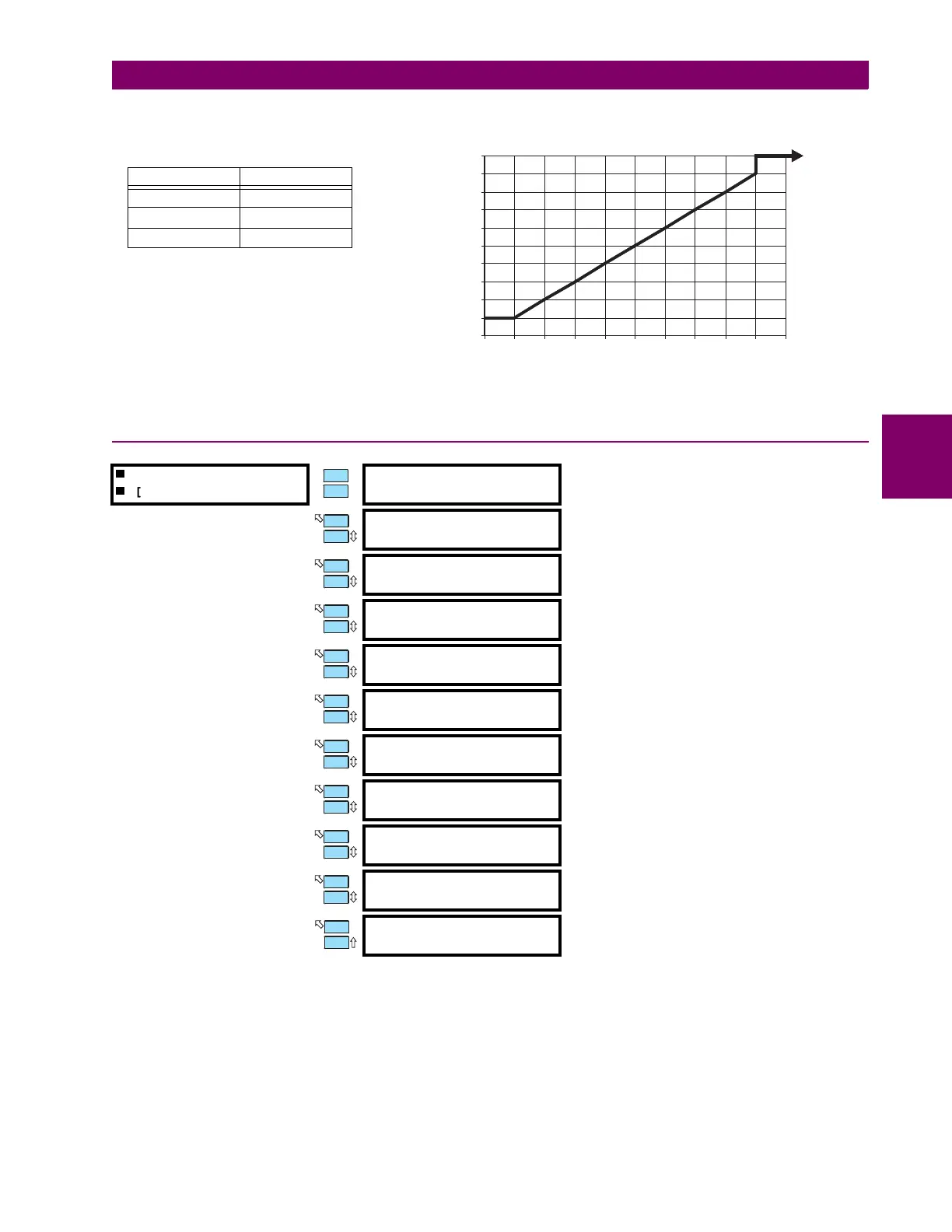

The 489 phase overcurrent restraint voltages and restraint characteristic are shown below:
Figure 4–2: VOLTAGE RESTRAINT CHARACTERISTIC
4.6.6 NEGATIVE SEQUENCE OVERCURRENT
Rotor heating in generators due to negative sequence current is a well known phenomenon. Generators have very specific
capability limits where unbalanced current is concerned (see ANSI C50.13). A generator should have a rating for both con-
tinuous and also short time operation when negative sequence current components are present.
defines the short time negative sequence capability of the generator
where:
K = constant from generator manufacturer depending on generator size and design
I
2
= negative sequence current as a percentage of generator rated FLA as measured at the output CTs
t = time in seconds when I
2
> pickup (minimum 250 ms, maximum defined by setpoint)

NEGATIVE SEQUENCE

[ENTER] for more
NEGATIVE SEQUENCE
ALARM: Off
Range: Off, Latched, Unlatched
ASSIGN ALARM
RELAYS (2-5): ---5
Range: Any combination of Relays 2 to 5
NEG. SEQUENCE ALARM
PICKUP: 3% FLA
Range: 3 to 100% FLA in steps of 1
NEGATIVE SEQUENCE
ALARM DELAY: 0.5 s
Range: 0.1 to 100.0 s in steps of 0.1
NEGATIVE SEQUENCE
ALARM EVENTS: Off
Range: On, Off
NEGATIVE SEQUENCE
O/C TRIP: Off
Range: Off, Latched, Unlatched
ASSIGN TRIP
RELAYS (1-4): 1---
Range: Any combination of Relays 1 to 4
NEG. SEQUENCE O/C
TRIP PICKUP: 8% FLA
Range: 3 to 100% FLA in steps of 1
NEG. SEQUENCE O/C
CONSTANT K: 1
Range: 1 to 100 in steps of 1
NEG. SEQUENCE O/C
MAX. TIME: 1000 s
Range: 10 to 1000 s in steps of 1
NEG. SEQUENCE O/C
RESET RATE: 227.0 s
Range: 0.0 to 999.9 s in steps of 0.01
Phase-Phase Voltage / Rated Phase-Phase VoltagePhase-Phase Voltage / Rated Phase-Phase Voltage
Curve Pickup MultiplierCurve
Pickup Multiplier
0 0.1
0.2
0.3 0.4 0.5 0.6 0.70.7 0.80.8 0.90.9 1.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0
PHASE OVERCURRENT RESTRAINT VOLTAGES:
CURRENT VOLTAGE
IA Vab
IB Vbc
IC Vca
ENTER
ESCAPE
ð
ð
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
MESSAGE
ESCAPE
KI
2
2
T =
