4D-Mode
Vivid S70 / S60
–
User Manual
6-19
BC092760-1EN
01

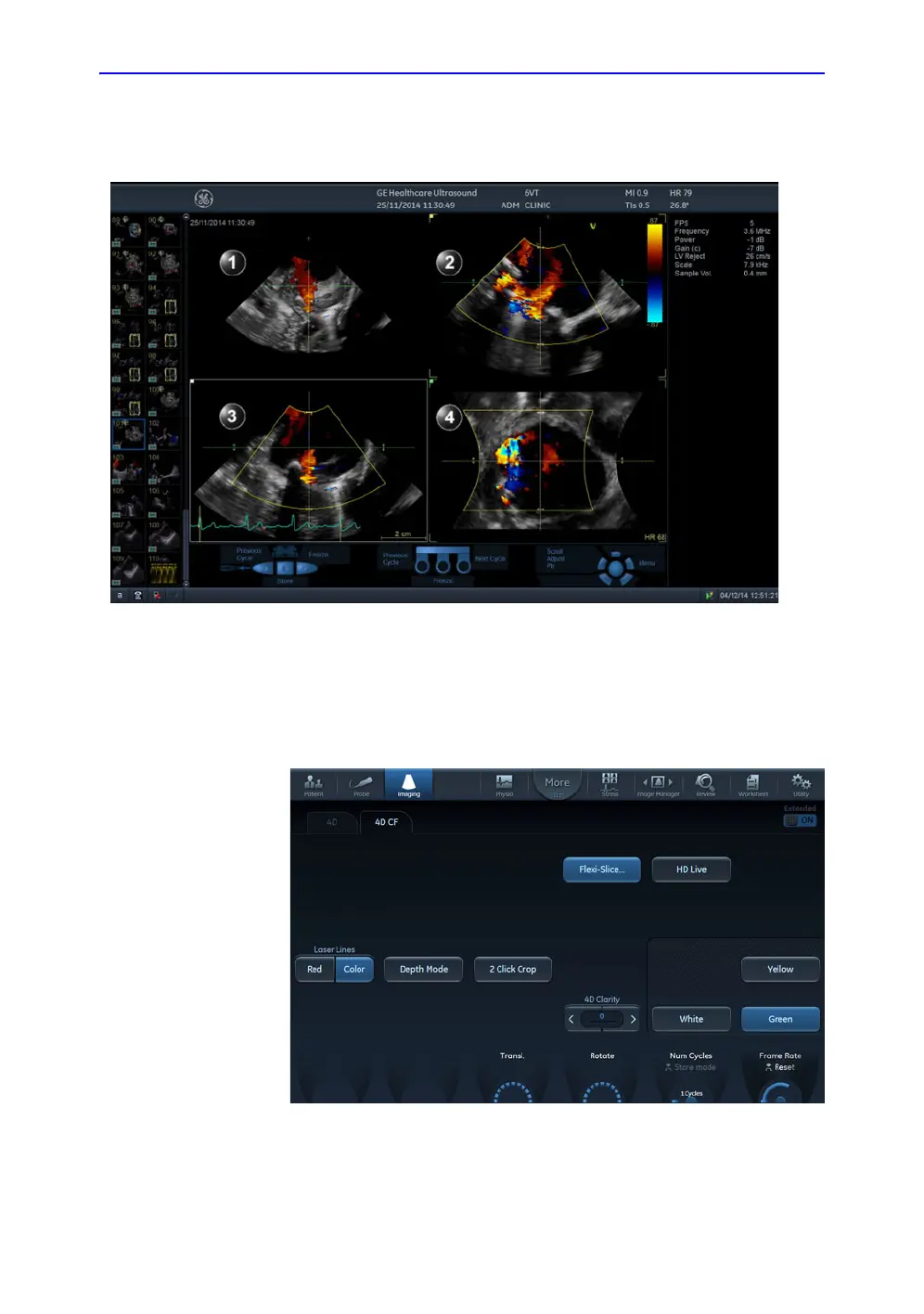

Flexi-Slice mode screen (Color flow)
Figure 6-1
1.
4D Color Flow screen (
Flexi-Slice mode)
Figure
6-
12.
The Flex
i-Slice mode c
ontrol panel
1.
V
olume rendering
2.
Cut-plane
1 (yellow)
3.
Cut-plane
2 (white)
4.
Cut-plane
3 (green)
218
220
