Switching On/Off
Vivid S70 / S60 – User Manual 3-23
BC092760-1EN 01
Switching On/Off
Switch on the system
1. Switch on the circuit breaker at the rear of the system (see
Figure 3-14).
2. Press the on/off button on the top left of the control panel
(see Figure 3-14).
After initialization the default scanning screen is displayed.

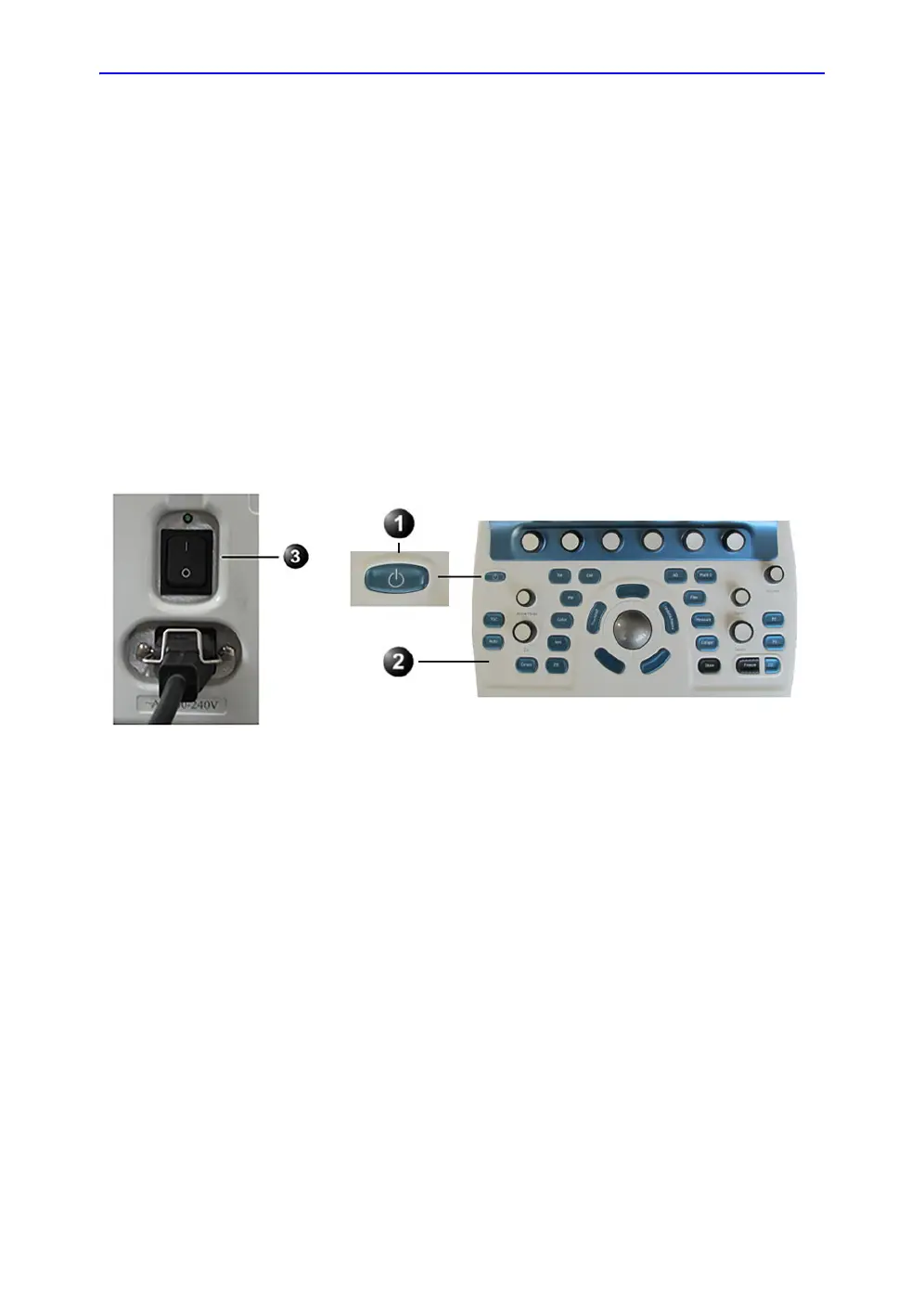

Figure 3-14. The Circuit breaker and On/Off button
Log In
During the boot-up process the system may require the user to
enter a password to operate it. Personal IDs and associated
passwords can be configured in the Vivid S70 / S60 (‘Users and
Security’ on page 12-8) .
If IDs and passwords have been entered and "Use Auto Logon"
is Off (‘Auto logon’ on page 12-11), the Operator Login window
appears, requesting for an ID and password when Power up
sequence is completed, or when it is required.
NOTE: By factory Login default, the Operator ID is USR and there is no
need to enter a password.
1. On/Off switch
2. Control Panel
3. Circuit breaker
