4D-Mode
Vivid S70 / S60 – User Manual 6-25
BC092760-1EN 01
Parallel cropping
Parallel cropping applies two parallel crop planes in the volume
rendering. This setting can be useful for valves and shunts
renderings.
When using Parallel Crop, both crop planes move together,
when translating and rotating. The thickness of the parallel crop
is adjusted using the Thickness control.
To remove parallel cropping, press Parallel Crop again.
Crop tool
The volume rendering can be cropped to only display the
structure of interest.
There are two crop planes that can be adjusted in each of the
azimuth, elevation, and short axis planes.

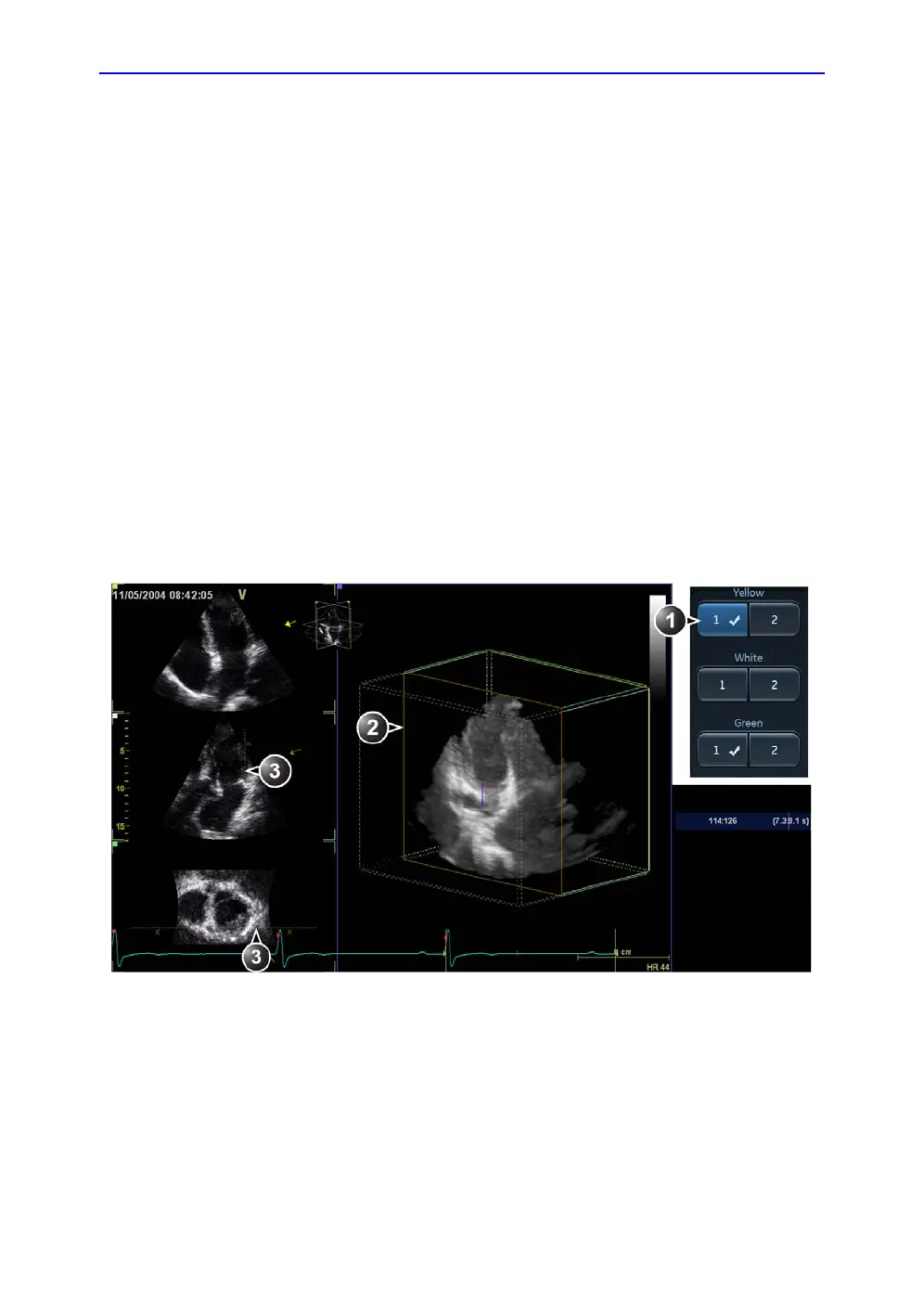

Figure 6-16. Crop plane 1 in the azimuth plane
1. Press Crop tool on the Touch panel (page 2).
Azimuth crop plane 1
1. Depressed button: active crop plane.
Check mark: cropping is applied.
2. Active crop plane in the volume rendering.
3. Crop plane intersection. The X symbols indicate the cropped side.
