4D and Multi-plane Modes
6-42 Vivid S70 / S60 – User Manual
BC092760-1EN
01
scan plane 2 can then be tilted using the Tilt rotary or the
trackball (see below)
4. To reset the scan planes to the original default position,
press Clear.
Tilting scan plane 2
In Bi-plane mode, the scan plane 2 can be tilted around the top
of the scanning sector using the trackball. Tilting is not available
in zoom mode.
1. In Bi-plane mode, press Select until the trackball function
Pos is selected.
2. Use the trackball to tilt the scan plane 2.

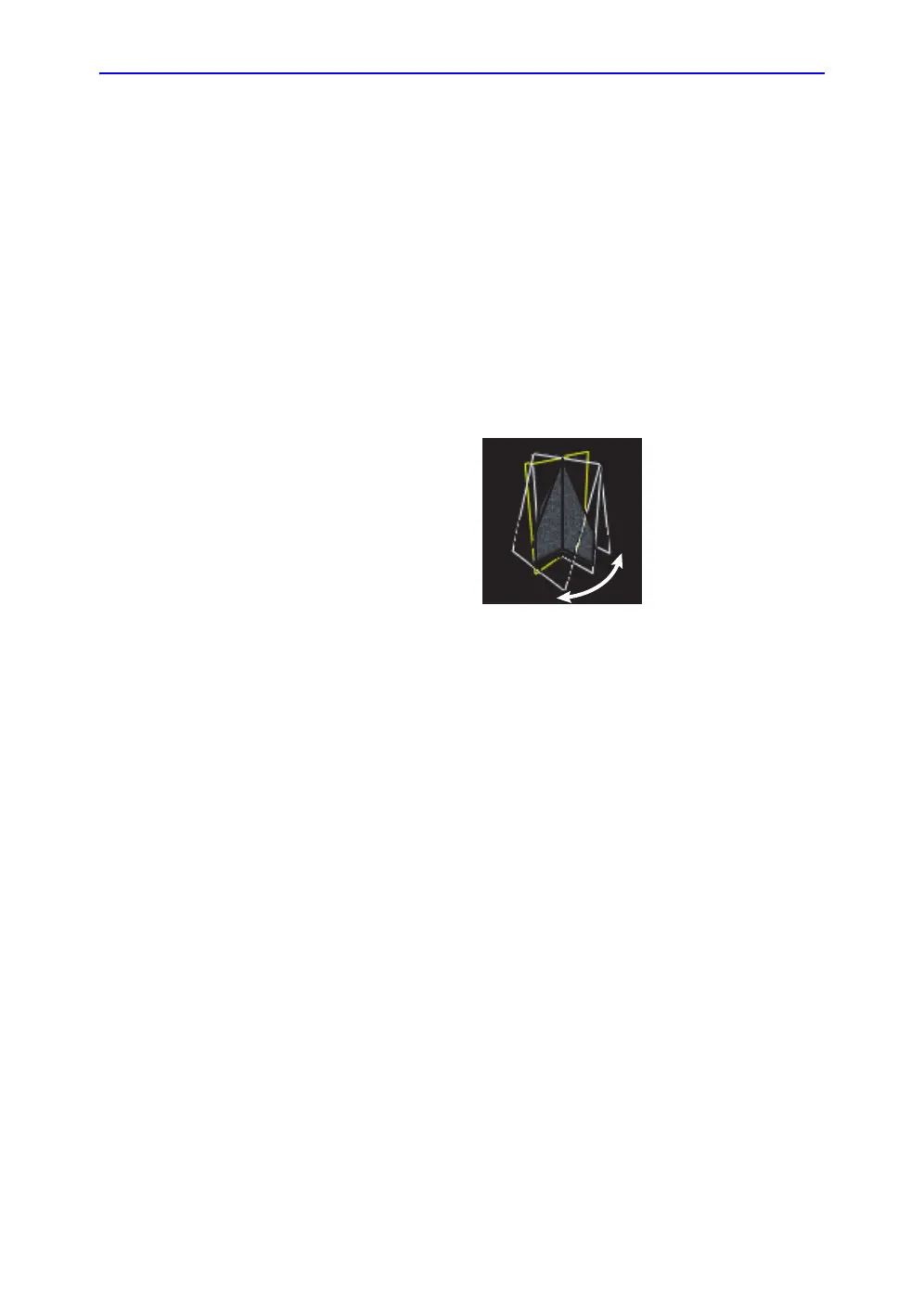

Figure 6-24. Tilting of scan plane 2 (Bi-plane mode)
3. To reset the scan planes to the original default position,
press Clear.
Zooming
1. Rotate the Zoom knob clockwise on the control panel.
All scan plane images are zoomed in. A Navigation window
is displayed with a frame highlighting the zoomed area.
The zoomed area can be moved within the sector or resized.
1. In zoom mode, press Select to toggle the trackball function
to Pos and use the trackball to freely move the zoomed area
within the scan plane.
2. Press Select to toggle the trackball function to Size and use
the trackball to adjust the size of the zoomed area (2D mode
only).
