Stress Echo
7-6 Vivid S70 / S60 – User Manual
BC092760-1EN
01
Parameters window on the right side of the screen (see
Figure 7-8 on page 7-18).

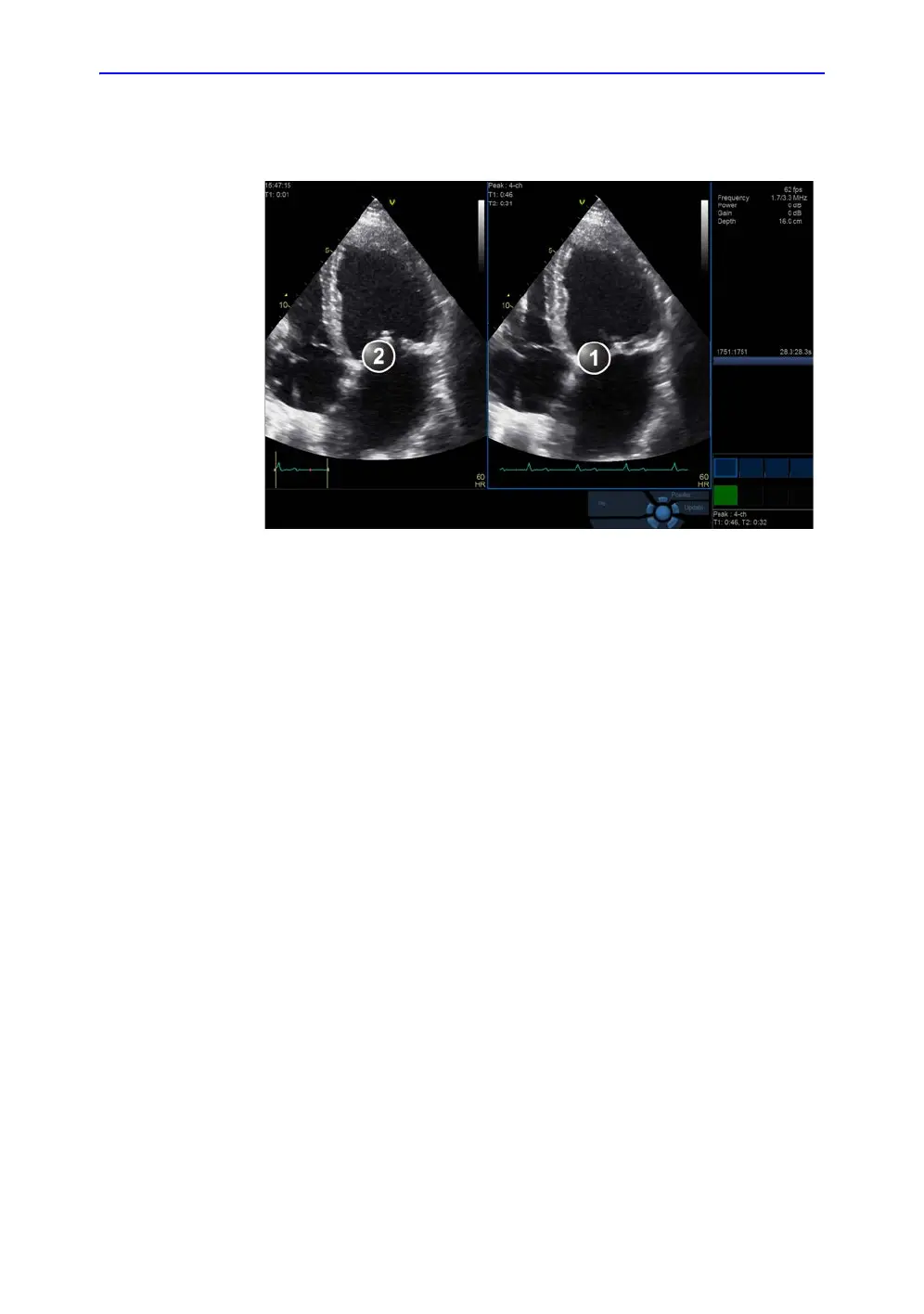

Figure 7-3. Display of the Reference loop during acquisition
Protocol Pause function
During the stress acquisition it is possible to temporarily exit the
protocol acquisition mode to acquire images in any mode
outside the stress protocol.
1. To temporarily exit the protocol mode, press Protocol
Pause on the Touch panel.
2. Acquire the desired images outside the protocol.
3. Press Protocol Pause to restart the protocol acquisition
mode and resume the stress acquisition.
Selecting a view during acquisition
A fixed protocol is provided for scanning, based on the selected
template. The system automatically highlights the next view to
be acquired in the template matrix, as images are stored.
However, the order of scanning may be changed manually as
follows.
1. Current acquisition loop
2. Corresponding reference loop
