Archiving
10-10 Vivid S70 / S60 – User Manual
BC092760-1EN
01

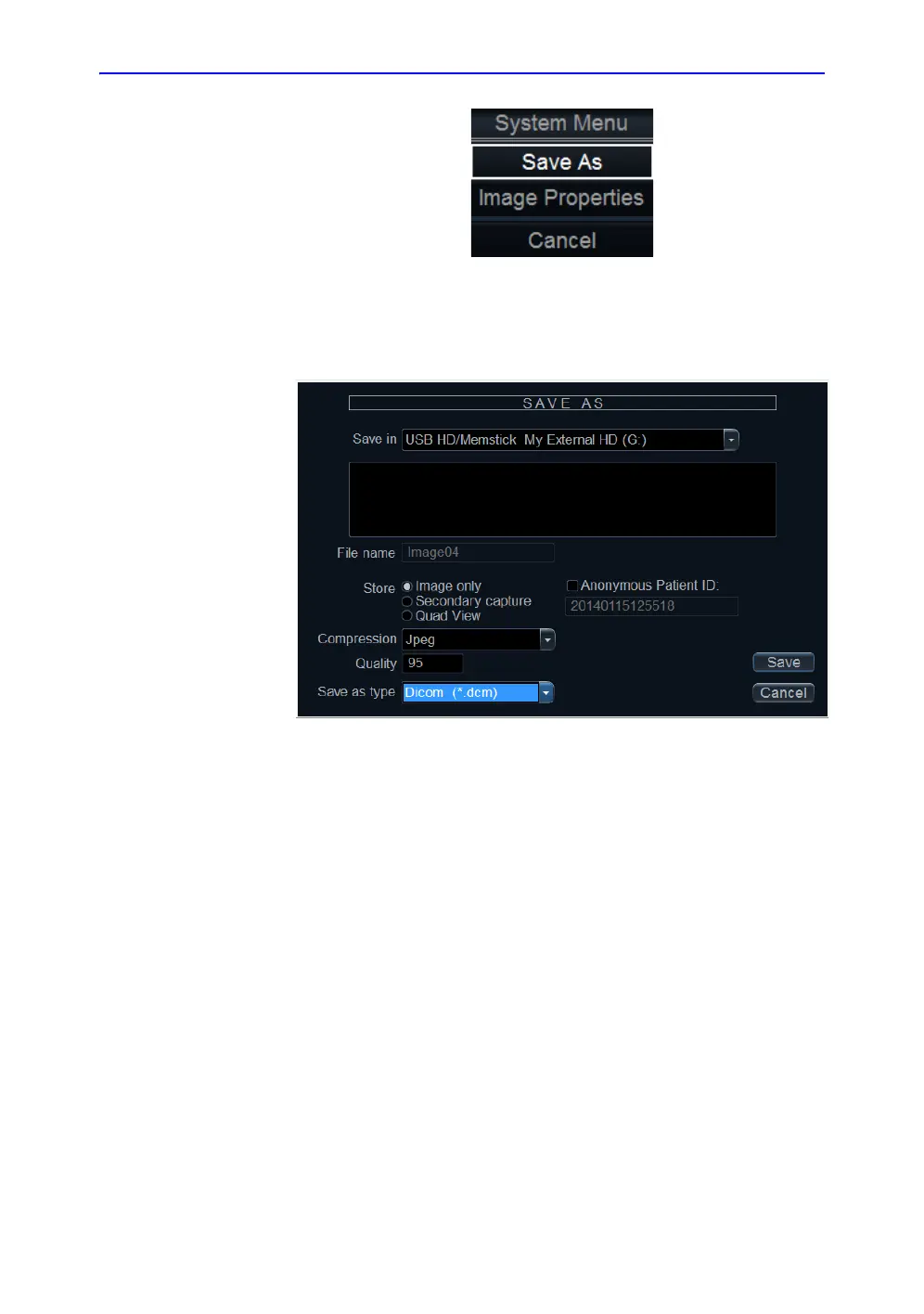

Figure 10-1. The System menu
3. Select Save as.
The Save as menu is displayed.
Figure 10-2. The Save as window
4. Select the desired destination from the Save in archive
pull-down menu.
5. Enter a file name in the File name field.
If the image or cineloop is saved as DICOM or RawDICOM
the file name is automatically generated to follow the
DICOM standard.
6. Select between:
• Store Image only: saves the active image or cineloop
only.
• Store Secondary capture: creates a screen capture of
the entire screen.
• Store Quad view: saves all images or cineloop when in
quad view.
