Customize Configuration
12-48 Vivid S70 / S60 – User Manual
BC092760-1EN
01

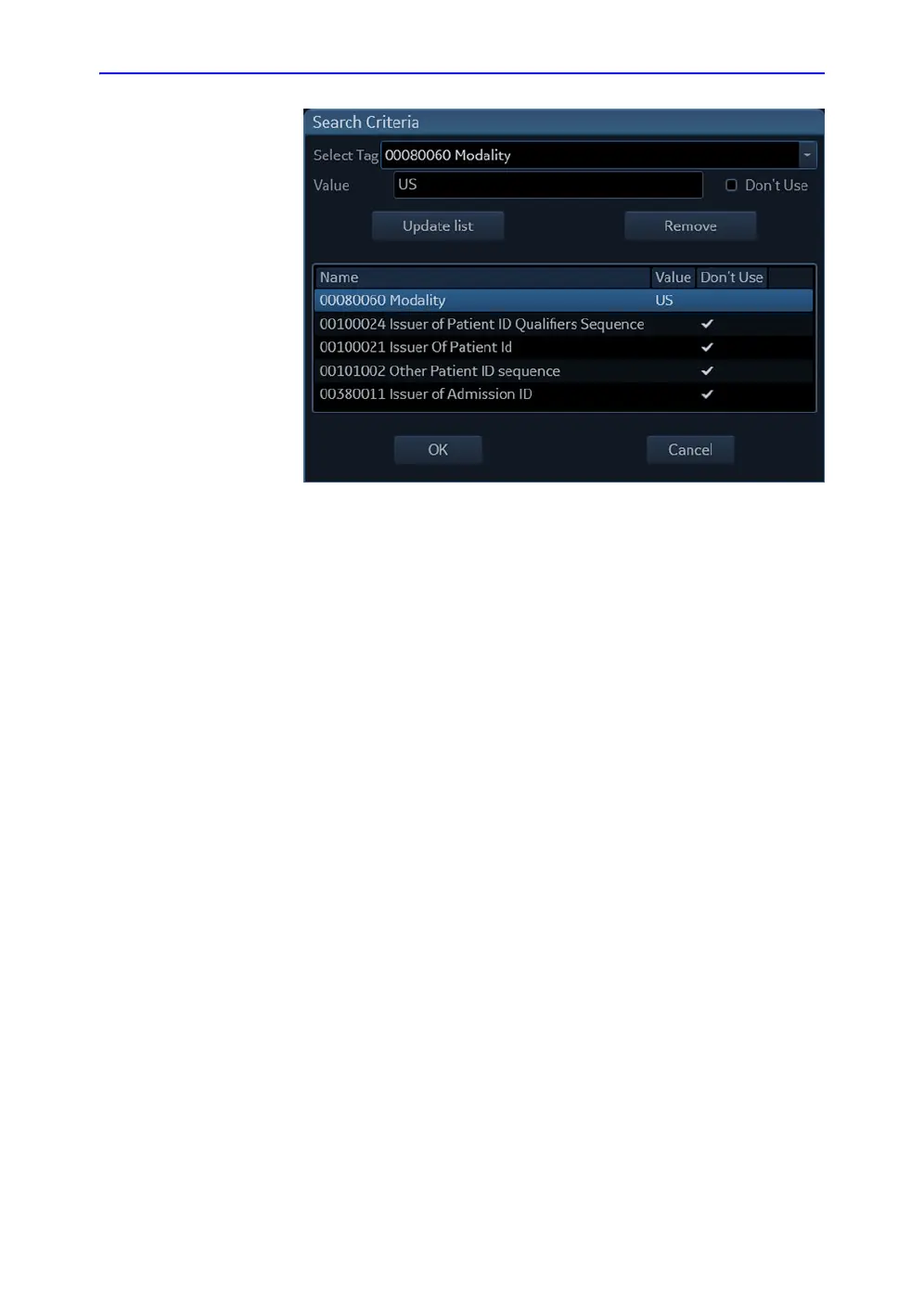

Figure 12-33. The Search Criteria window
DICOM SR
DICOM Structured Reporting (SR) is a standardized format for
medical results. Vivid S70 / S60 supports the specialized form
for Echo Ultrasound (“TID 5200 Echocardiography Procedure
Report”), Pediatric (“TID 5220 Pediatric Cardiac Ultrasound
Report”) and Vascular Ultrasound (“TID 5100 Vascular
Ultrasound Procedure Report”) for M&A results.
With the DICOM SR support, M&A for an exam can be sent at
the end of the exam or when exported from local archive. The
destination can be either a server on the network (Storage SCP)
or a removable media (DICOM Media) depending on the
DICOM dataflow selected.
"TID 5220 Pediatric Cardiac Ultrasound Procedure Report" is
sent if the exam contains M&A from category Pediatric (Heart).
"TID 5200 Echocardiography Procedure Report" is sent if the
exam contains M&A from category Cardiac and does not contain
M&A from category Pediatric (Heart).
"TID 5100 Vascular Ultrasound Procedure Report" is sent if the
exam contains M&A from category Vascular/Abdominal.
“TID 5200 Echocardiography Procedure Report”, “TID 5220
Pediatric Cardiac Ultrasound Report” and “TID 5100 Vascular
Ultrasound Procedure Report” do not support all M&A results
from Vivid S70 / S60. They are limited to the following:
• No unassigned measurement.
