Gilera GP 800 i.e. User Manual

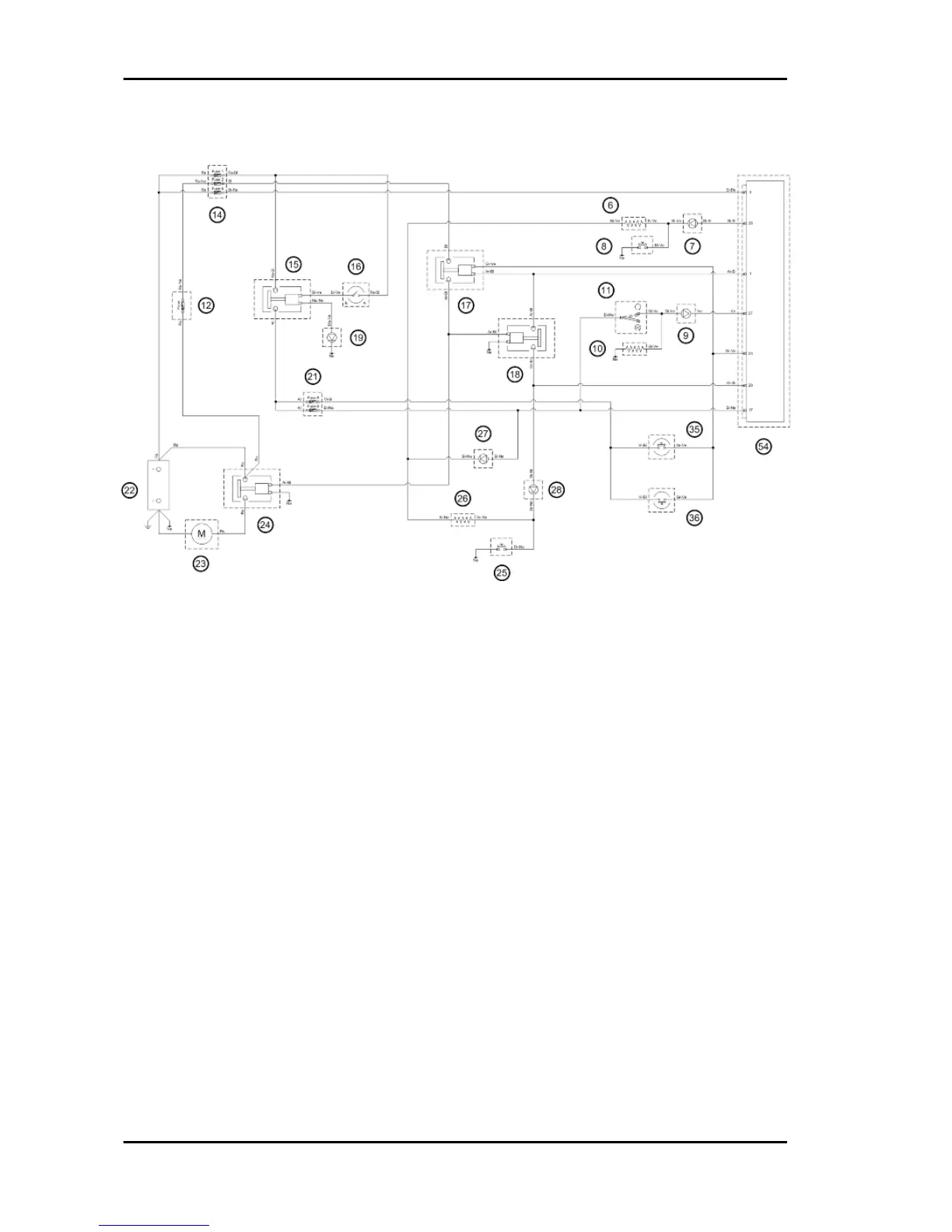

Starter motor
KEY
6. Resistance 120 Ohm - 2W
7. 1A diode
8. Stand button
9. 1A diode
10. Resistance 120 Ohm - 2W
11.Engine stop switch
12. 40A fuse
14. Main fuses
15. Main relay
16. Key switch contacts
17. Start-up remote control switch relay
18. Start-up maintenance relay
19. 1A diode
21. Auxiliary fuses
22. 12V - 14Ah battery
23. Starter motor
24. Start-up remote control switch
25. Starter button
26. Resistance 120 Ohm - 2W
Electrical system GP 800 i.e.
ELE SYS - 36
