Gilera GP 800 i.e. User Manual

2. Immobilizer aerial
14. Main fuses
15. Main relay
16. Key switch contacts
19. 1A diode
21. Auxiliary fuses
22. 12V - 14Ah battery
48. Instrument panel
51.Electronic ignition device (Engine connector)
52.Front cylinder HV coil
53. Rear cylinder HV coil
54. Electronic ignition device (Vehicle connector)
75. Injection load relay
Battery recharge and starting
KEY
3. Magneto flywheel
6. Resistance 120 Ohm - 2W
7. 1A diode
8. Stand button

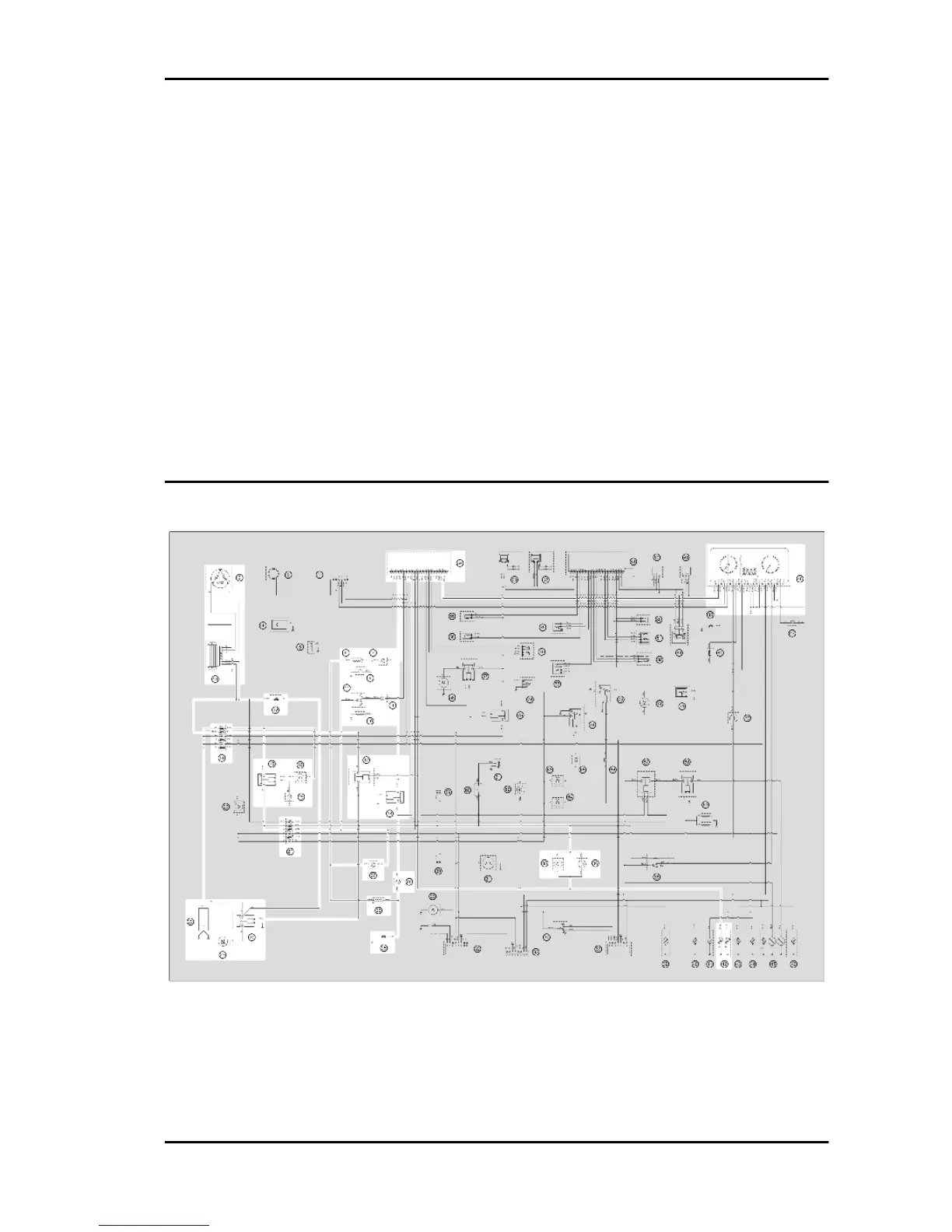

GP 800 i.e. Electrical system
ELE SYS - 21
