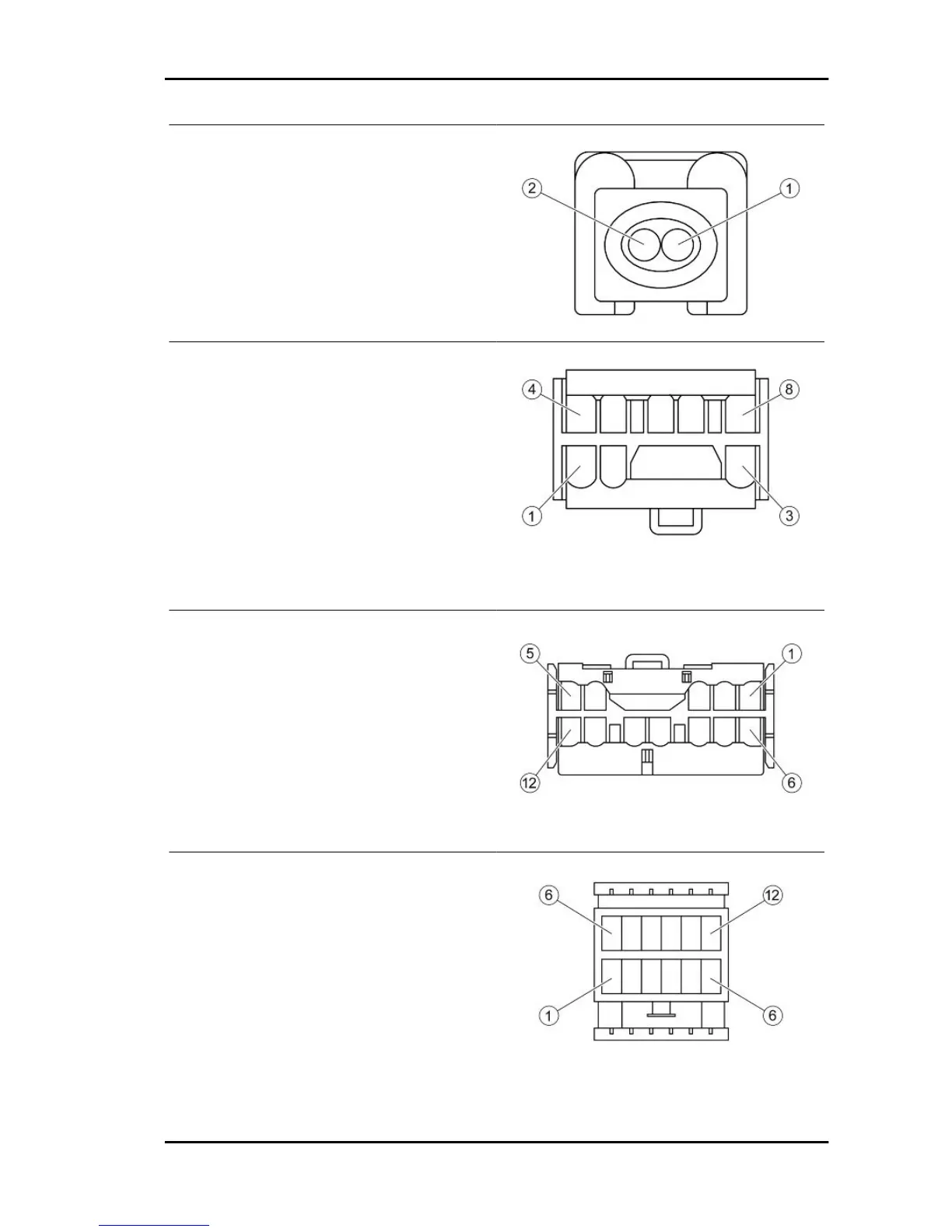

FRONT CYLINDER INJECTOR CONNECTOR
1. Control unit (Blue)
2. Injection load relay (Black-Green)
ANTITHEFT DEVICE PRE-INSTALLATION
CONNECTOR
1. Left turn indicators (Pink)
2. Right turn indicators (White-Blue)
3. Ground (Black)
4. Battery positive (Blue)
5. Live positive (Yellow-Black)
6. Helmet compartment light bulb (Blue-Black)
7. Saddle opening receiver (Green)
8. Saddle opening receiver (Sky Blue)
SADDLE OPENING RECEIVER CONNECTOR
1. Aerial (Purple)
2. Saddle opening actuator (Yellow-Grey)
3. Reset (White)
4. Battery positive (Blue)
6. Live positive (Yellow-Black)
7. Ground (Black)
11. Pre-installation for antitheft device (Green)
12. Pre-installation for antitheft device (Green)
TURN INDICATOR CONTROL DEVICE CON-
NECTOR
2. Left turn indicator switch (White-Pink)
3. Right turn indicator switch (Blue-Black)
4. Left turn indicators (Pink)
5. Right turn indicators (White-Blue)
6. Battery positive (Orange-Blue)
8. Live positive (Yellow-Black)
9. Ground (Black)
GP 800 i.e. Electrical system
ELE SYS - 57
