Gilera GP 800 i.e. User Manual

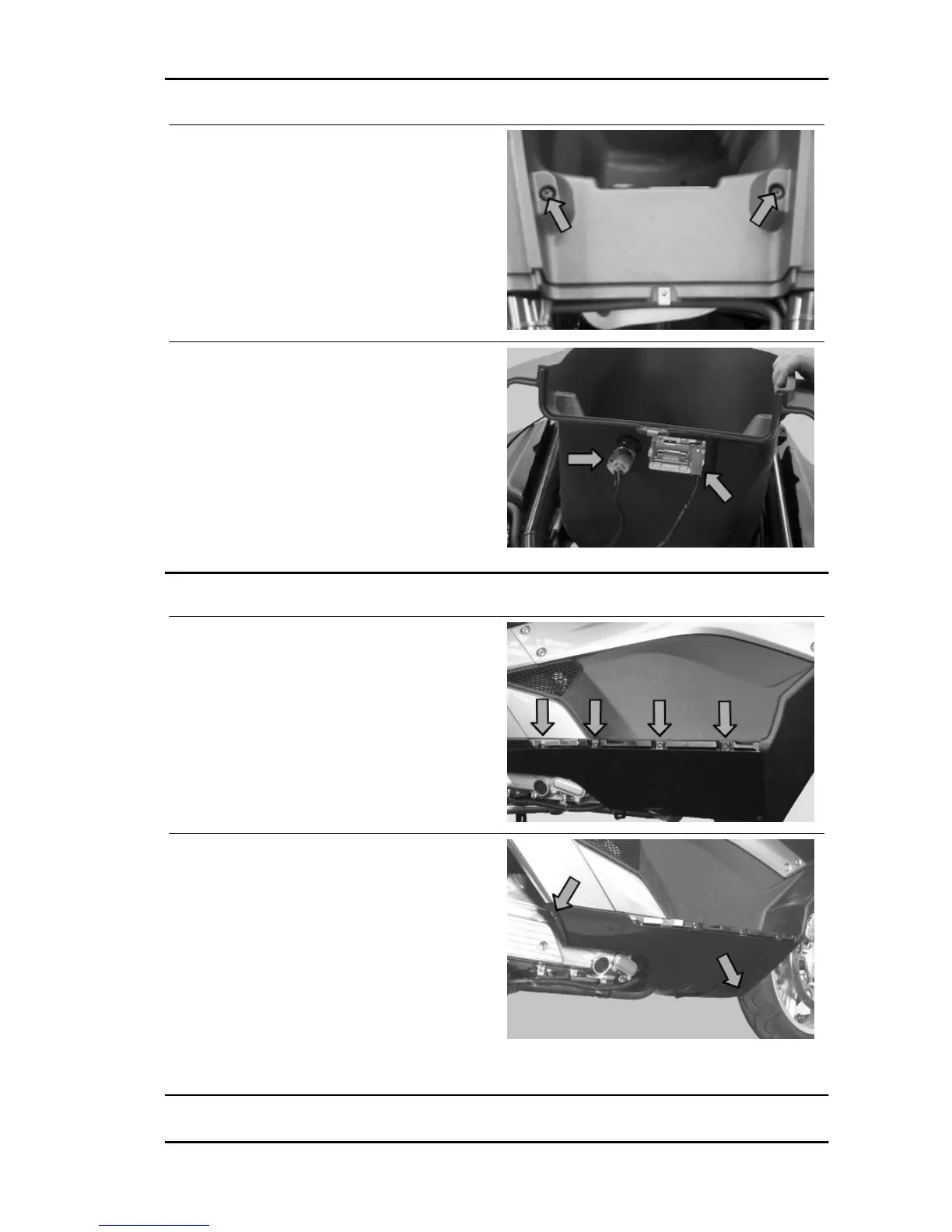

- Svitare le due viti indicate.
- Sollevare dalla parte anteriore il vano portacasco
e scollegare i connettori indicati e rimuovere il va-
no portacasco.
spoiler
- These operations are described once but apply
to both spoilers.
- Remove the rubber mat.
- Undo the four screws indicated.
- Undo the lower connecting screw to the wheel
housing and the connecting screw to the chassis
side cover, rear part.
- Remove the spoiler.
GP 800 i.e. Chassis
CHAS - 15
