Gilera GP 800 i.e. User Manual

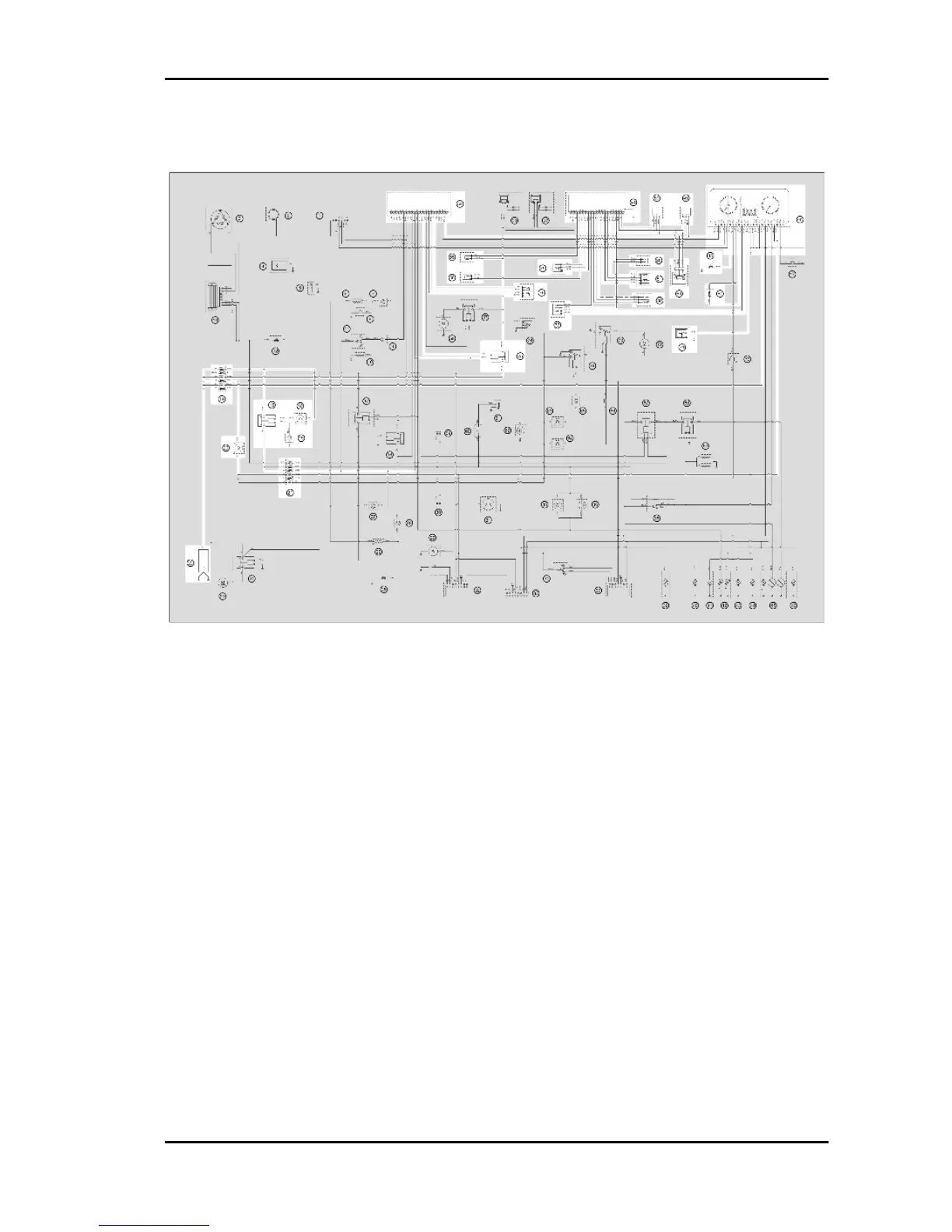

Level indicators and enable signals section
KEY
14. Main fuses
15. Main relay
16. Key switch contacts
19. 1A diode
20. Key switch contacts
21. Auxiliary fuses
22. 12V - 14Ah battery
48. Instrument panel
49. Vehicle speed sensor
50. Barometric pressure sensor
51.Electronic ignition device (Engine connector)
54. Electronic ignition device (Vehicle connector)
55. Front cylinder fuel injector
56. Rear cylinder fuel injector
71. Fuel level transmitter
75. Injection load relay
77. Engine temperature sensor
GP 800 i.e. Electrical system
ELE SYS - 23
