21. Auxiliary fuses
22. 12V - 14Ah battery
63. Windshield DOWN button
64. Windshield UP button
65. Windshield limit switch
66. Windshield limit switch
72. Windshield motor
73. Windshield relay
74. Windshield relay

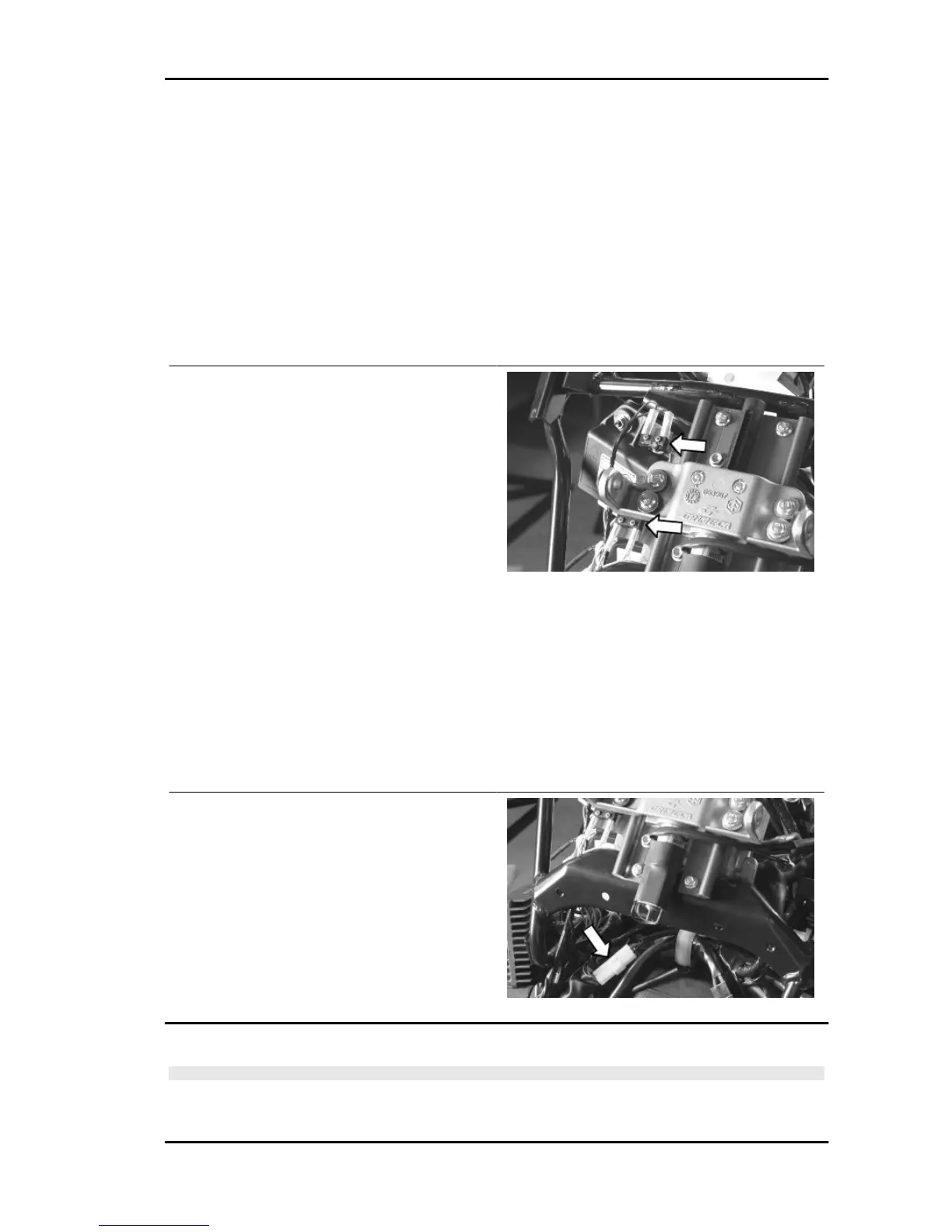

If the windshield motor does not work:
1) Check fuse No. 4.
2) Check contacts «G» and «H» of the key switch.
3) Check fuse No. 12.
4) Check cable harness continuity (White cables)
between the fuse-box and the switches and be-
tween the fuse-box and the remote controls.
5) With the specific switches pressed and the
windshield not at the end of its travel, check wheth-
er there is voltage between the Blue and the Black
cables for one remote control, and between the
Yellow and Black cables for the other remote con-
trol.
6) If there is no voltage, check the continuity of the
cable harness and check the contacts of switches
and limit switches.
7) Check that the remote controls work properly.
8) Check that the Black cables of the remote con-
trols are earthed.
9) Check continuity of the cable harness between
engine and remote controls.
Connectors
CAUTION
JOINTS ARE SEEN FROM THE CONNECTOR INPUT SIDE.
GP 800 i.e. Electrical system
ELE SYS - 53
