Gilera GP 800 i.e. - Oil Pump Refitting

Refitting

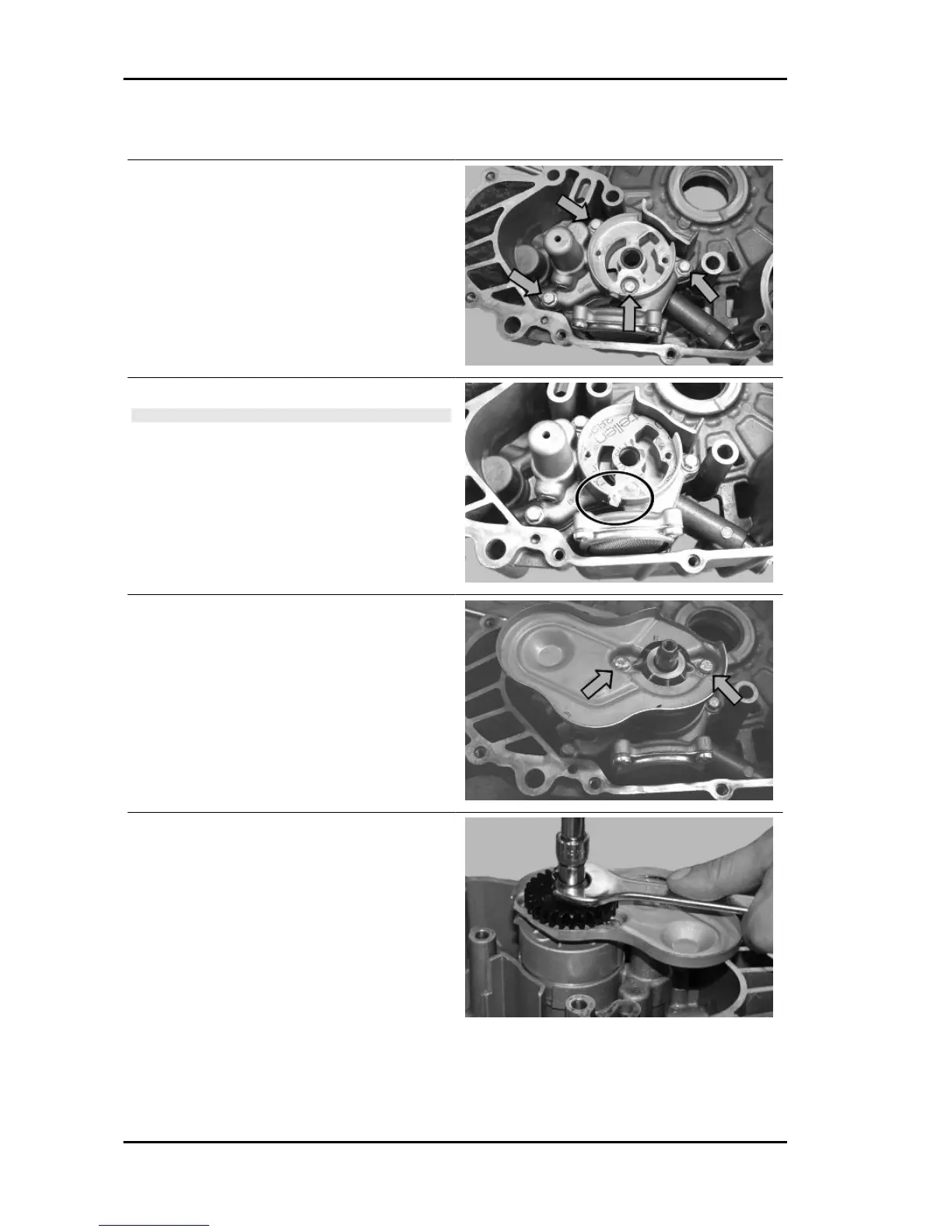

- Operating from inside the flywheel-side crank-
case half:
- Fit the by-pass scavenge duct together with the
gasket and tighten the four fixing screws to the
prescribed torque.
Locking torques (N*m)
By-pass scavenge duct fixing screws 11 ÷ 13
- Make sure the gasket is in the correct position.
N.B.
THE TOOTH OF THE GASKET MUST BE IN ITS
SEAT.
- Fit the scavenge oil pump and the casing of the
oil anti-backflow plate.
- Tighten the two screws indicated to the prescri-
bed torque.
Locking torques (N*m)
Screws fixing oil pump to the crankcase 5 - 6
- Fit the water pump control gear on the oil pump
shaft.
- Tighten the locking screw with the washer to the
prescribed torque.
Locking torques (N*m)
Water pump gear fixing screw 5 - 6
