Gilera GP 800 i.e. User Manual

Removal

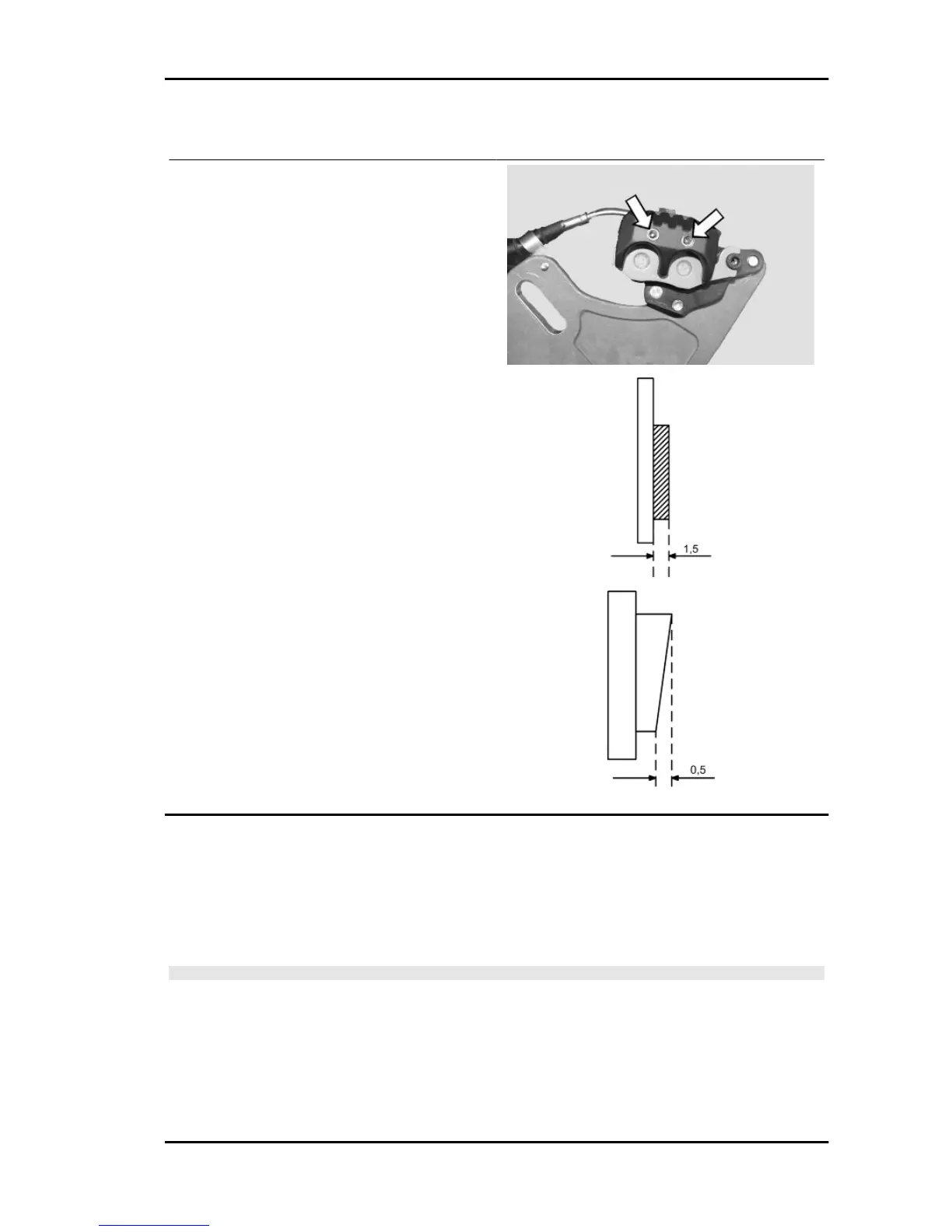

Proceed as follows:
- Remove the rear brake calliper
- Loosen the two pins shown in the figure that lock
the two pads.
- Remove the pads, being careful with the pad
spring clamp.
- Check the thickness of the friction material of the
pads.
- Replace the pads if the thickness is below the
minimum value.
- The replacement must be made with greater re-
sidual thickness if the pad has not worn evenly. A
0.5 mm thickness difference in the residual friction
material is permitted.
Characteristic
Minimum value
1.5 mm
Refitting
To fit, proceed as follows:
- Insert the two pads in the callipers.
- Screw the two pad lock pins to the correct torque, and apply the recommended product.
- Fit the calliper on its support, tightening the two screws to the prescribed torque.
N.B.
IF IT IS NOT POSSIBLE TO CORRECTLY POSITION THE CALLIPER ON THE DISC DURING FIT-
TING, GENTLY EXPAND THE PADS.
Recommended products
Loctite 243 Medium strength threadlock
Loctite 243 medium-strength threadlock
Locking torques (N*m)
GP 800 i.e. Braking system
BRAK SYS - 9
