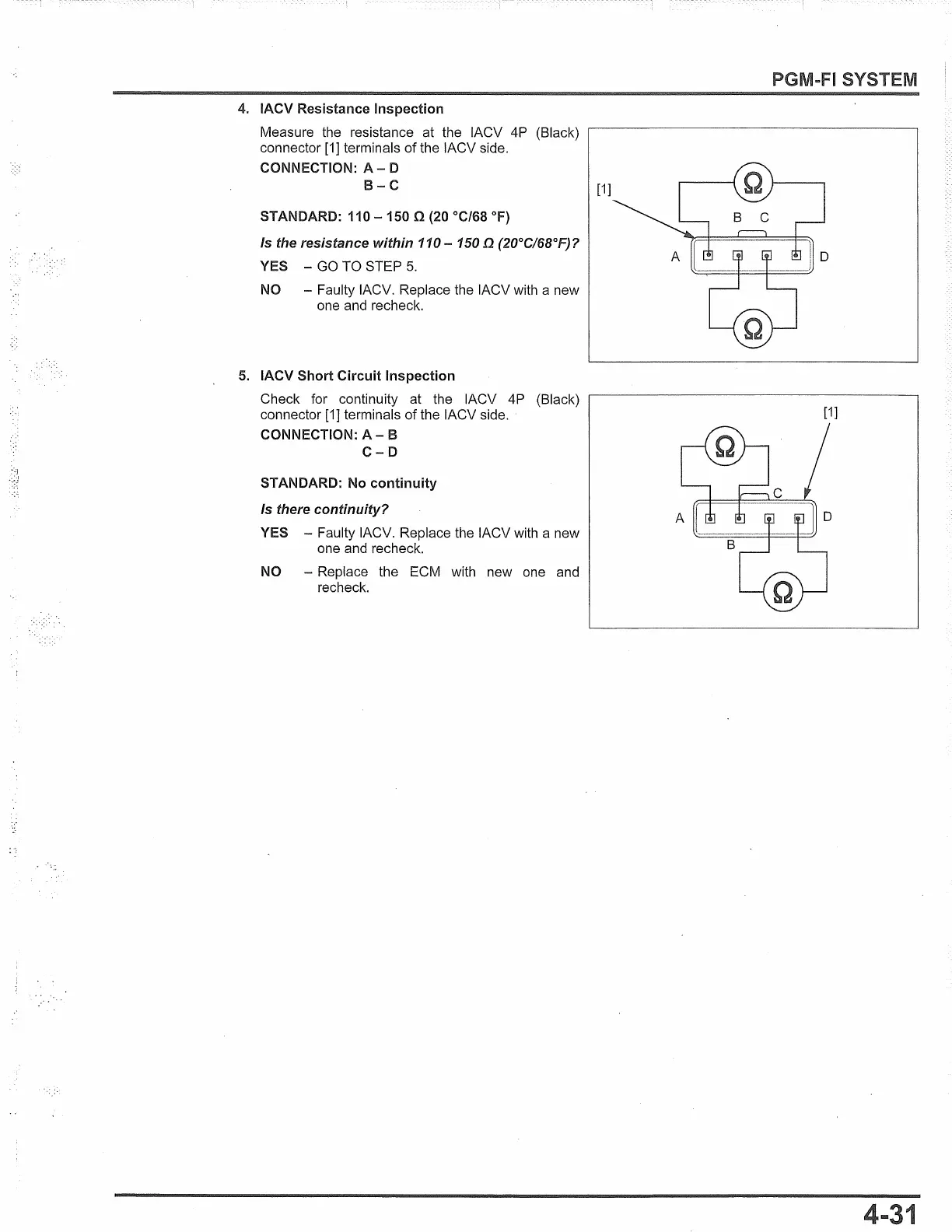

4. IACV Resistance Inspection
Measure the resistance at the IACV 4P (Black)
connector [1] terminals
of the IACV side.
CONNECTION: A- D
B-C [1]
STANDARD: 110 -150 n (20 °ct6a °F)
Is the resistance within 110 150 !2 (20°C/68°F)?
YES - GO TO STEP 5.
NO - Faulty IACV. Replace the IACV with a new
one and recheck.
5. IACV Short Circuit Inspection
Check for continuity at the IACV 4P (Black)
connector [1] terminals
of the IACV side.
CONNECTION: A- B
C-D
STANDARD: No continuity
Is there continuity?
YES - Faulty IACV. Replace the IACV with a new
one and recheck.
NO - Replace the ECM with new one and
recheck.
PGM-FI SYSTEM
[1]
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
