Honda PCX150 2013 User Manual

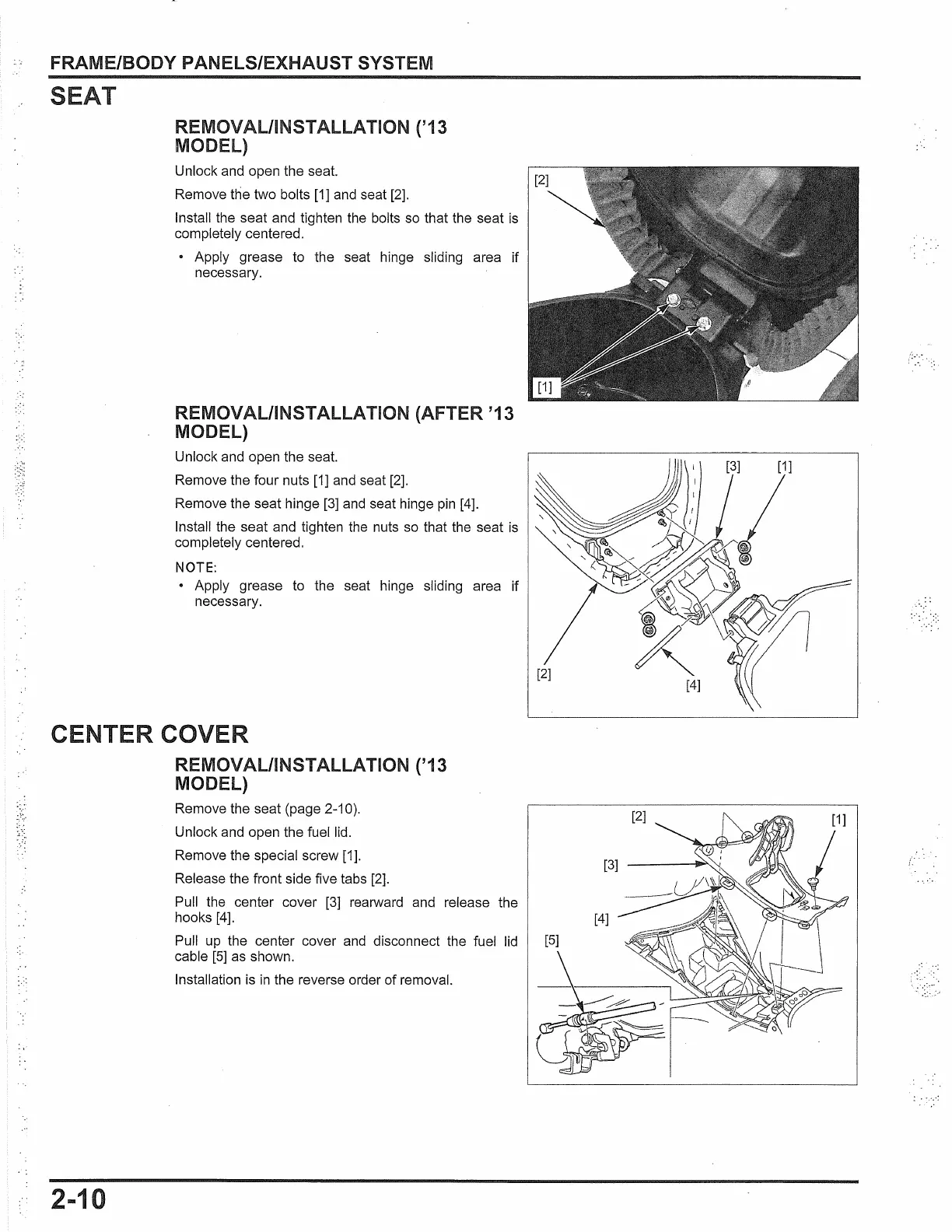

FRAME/BODY PANELS/EXHAUST SYSTEM
s
REMOVAL/INSTALLATION ('13
MODEL)
Unlock and open the seat.
Remove the two bolts
[1]
and
seat
[2].
Install the seat and tighten the bolts
so
that the seat
is
completely centered.
Apply grease to the seat hinge sliding area if
necessary.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Unlock and open the seat.
Remove the four nuts
[1]
and
seat
[2].
Remove the seat hinge [3]
and
seat hinge
pin
[4].
Install the seat and tighten the nuts
so
that the seat
is
completely centered.
NOTE:
• Apply grease
to
the seat hinge sliding area if
necessary.
CENTER COVER
REMOVAL/INSTALLATION ('13
MODEL)
2-10
Remove the seat (page 2-10).
Unlock
and
open the fuel lid.
Remove the special screw
[1
].
Release the front side five tabs
[2].
Pull the center cover
[3]
rearward and release the
hooks
[4].
Pull
up
the center cover
and
disconnect the fuel lid
cable
[5]
as
shown.
Installation is
in
the reverse order of removal.

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
