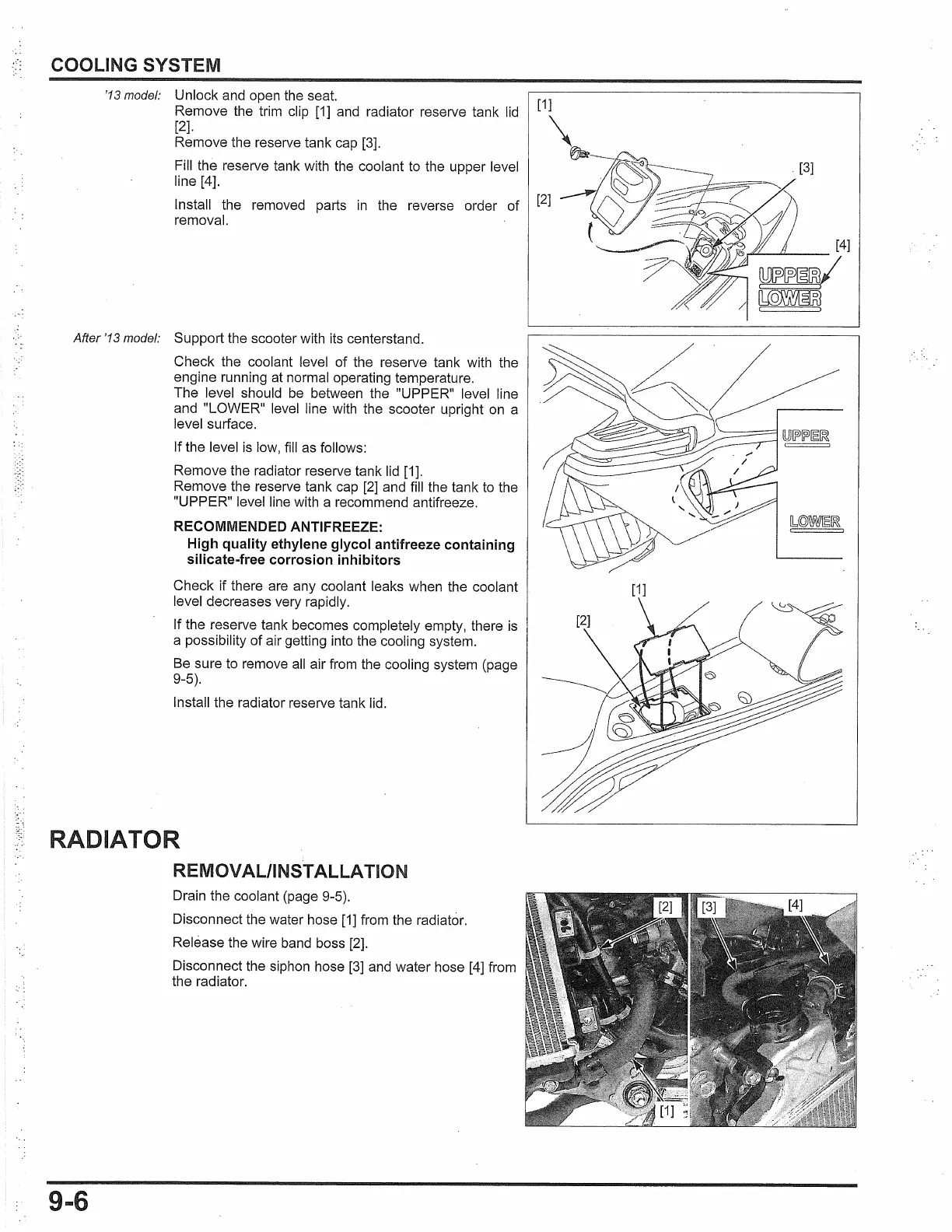

COOLING SYSTEM
'13 model:
Unlock
and
open the seat.
Remove the trim clip
[1]
and
radiator reserve tank
lid
[2].
Remove the reserve tank
cap
[3].
Fill the reserve tank with the coolant
to
the upper level
line [4].
Install the removed parts
in
the reverse order of
removal.
After
'13 model:
Support the scooter with its centerstand.
Check the coolant level of the reserve tank with the
engine running
at
normal operating temperature.
The level should
be
between the "UPPER" level line
and "LOWER" level line with the scooter upright
on
a
level surface.
If the level
is
low, fill
as
follows:
Remove the radiator reserve tank lid [1].
Remove the reserve tank
cap
[2]
and fill the tank
to
the
"UPPER" level line with a recommend antifreeze.
RECOMMENDED ANTIFREEZE:
High quality ethylene glycol antifreeze containing
silicate-free corrosion inhibitors
Check if there are any coolant leaks when the coolant
level decreases very rapidly.
If the reserve tank becomes completely empty, there
is
a possibility of air getting into the cooling system.
Be sure
to
remove
all
air from the cooling system (page
9-5).
Install the radiator reserve tank lid.
RADIATOR
REMOVAL/INSTALLATION
Drain the coolant (page 9-5).
9-6
Disconnect the water hose
[1]
from the radiator.
Release the wire band boss [2].
Disconnect the siphon hose
[3]
and water hose
[4]
from
the radiator.
[1]
To Next Page
