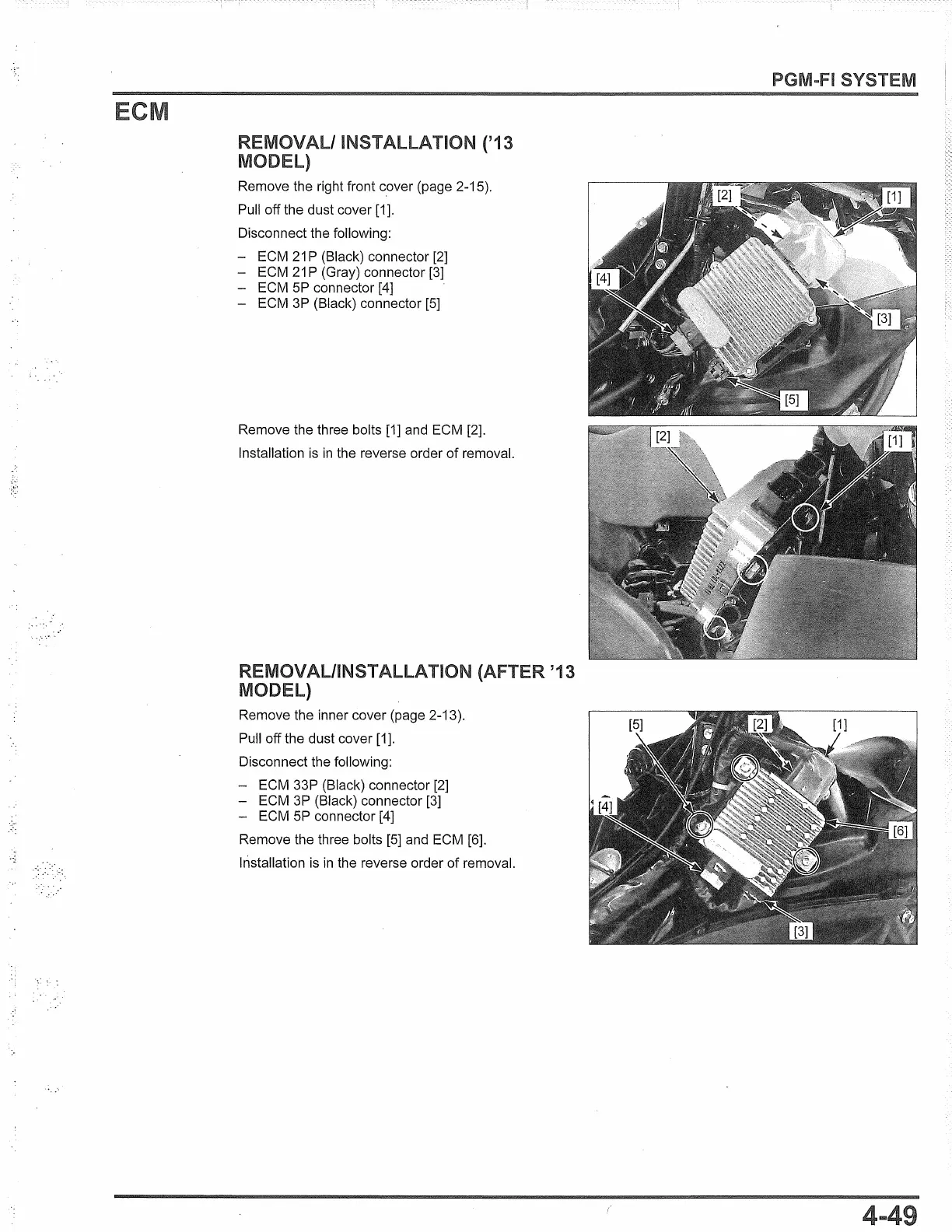

REMOVAL/ INSTALLATION ('13
MODEL)
Remove the right front
c.over
(page 2-15).
Pull off the dust cover [1].
Disconnect the following:
- ECM
21
P (Black) connector
[2]
- ECM
21
P (Gray) connector [3]
- ECM 5P connector [4]
- ECM
3P
(Black) connector
[5]
Remove the three bolts [1] and ECM [2].
Installation
is
in
the reverse order
of
removal.
REMOVAL/INSTALLATION (AFTER '13
MODEL)
Remove the inner cover (page 2-13).
Pull off the dust cover [1].
Disconnect the following:
- ECM 33P (Black) connector [2]
- ECM 3P (Black) connector [3]
- ECM 5P connector [4]
Remove the three bolts
[5]
and ECM [6].
Installation is
in
the reverse order of removal.
