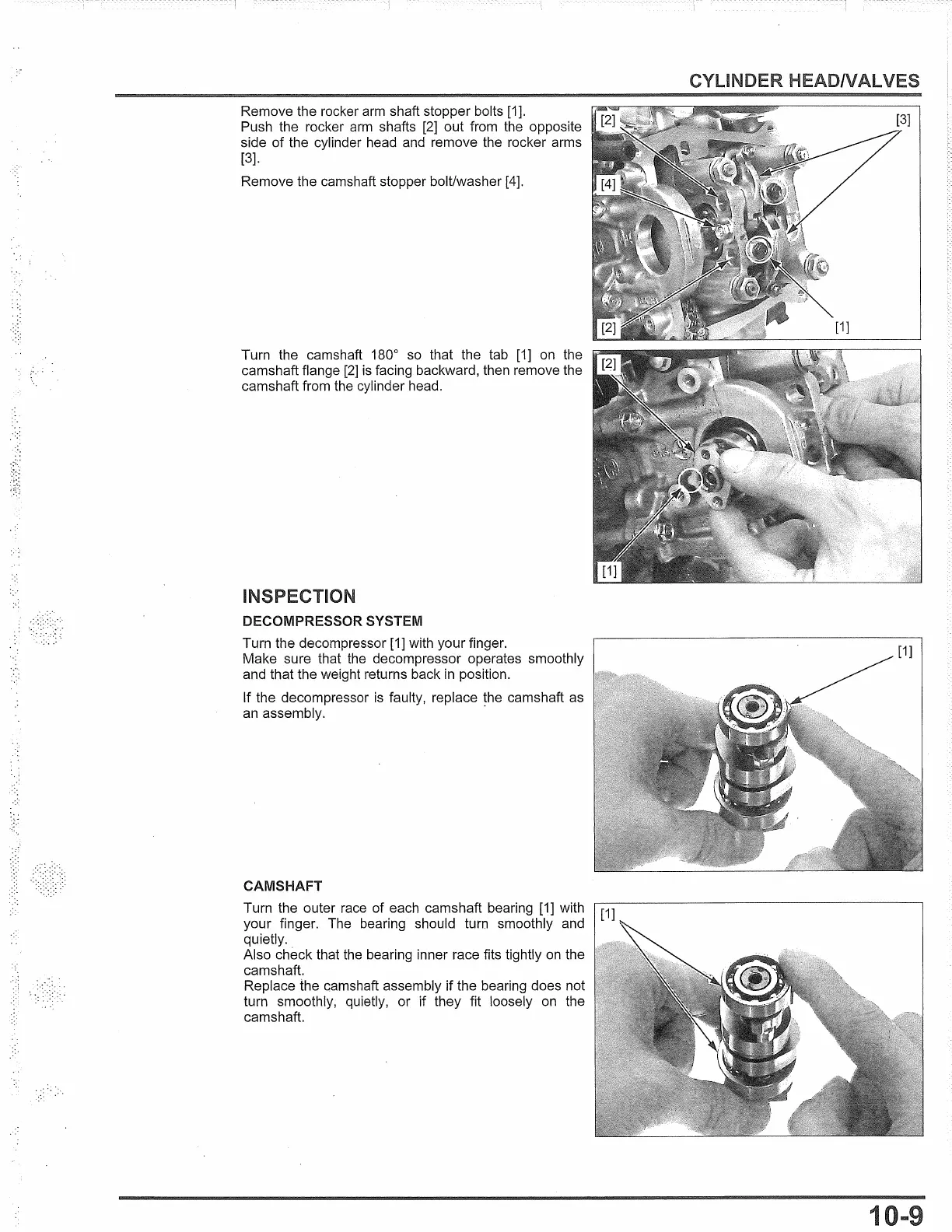

Remove the rocker arm shaft stopper bolts [1].
Push the rocker
arm shafts [2] out from the opposite
side of the cylinder head
and remove the rocker arms
[3].
Remove the camshaft stopper bolVwasher [4].
Turn the camshaft 180°
so that the tab [1] on the
camshaft flange
[2] is facing backward, then remove the
camshaft from the cylinder head.
INSPECTION
DECOMPRESSORSYSTEM
Turn the decompressor [1] with your finger.
Make sure that the decompressor operates smoothly
and that the weight returns back
in position.
If the decompressor
is faulty, replace the camshaft as
an assembly. ·
CAMSHAFT
Turn the outer race of each camshaft bearing [1] with
your finger. The bearing should turn smoothly and
quietly.
Also check that the bearing inner race fits tightly
on the
camshaft.
Replace the camshaft assembly if the bearing does not
turn smoothly, quietly, or if they fit loosely
on the
camshaft.
CYLINDER HEADNALVES
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
