MAINTENANCE
HEADLIG
3-22

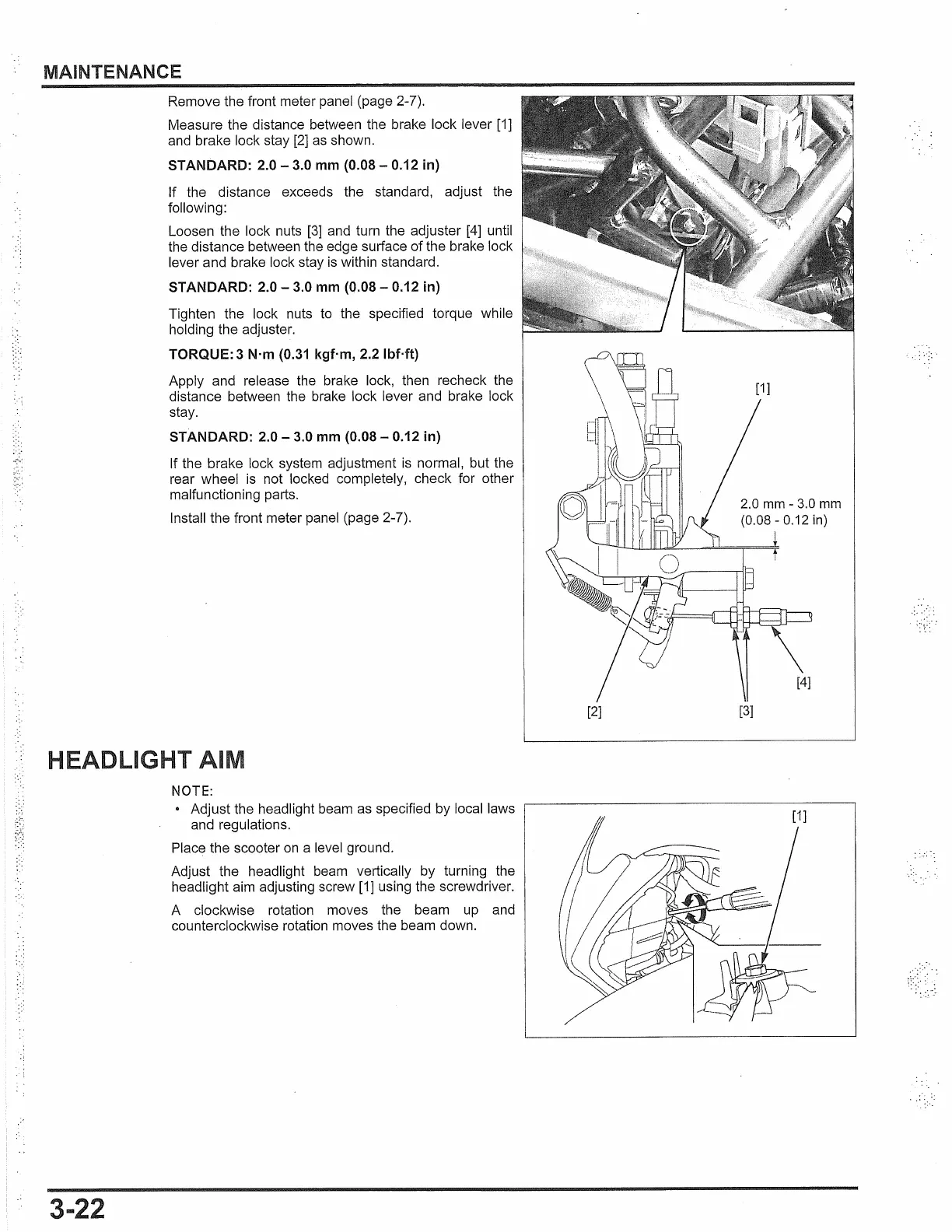

Remove the front meter panel (page 2-7).
Measure the distance between the brake lock lever
[1]
and
brake lock stay
[2]
as
shown.
STANDARD: 2.0 -
3.0
mm
(0.08-
0.12 in)
If the distance exceeds the standard, adjust the
following:
Loosen the lock nuts
[3]
and turn the adjuster
[4]
until
the distance between the edge surface of the brake lock
lever and brake lock stay
is
within standard.
STANDARD:
2.0-
3.0
mm
(0.08-
0.12 in)
Tighten the lock nuts
to
the specified torque while
holding the adjuster.
TORQUE: 3 N·m
(0.31
kgf·m, 2.2 lbMt)
Apply and release the brake lock, then recheck the
distance between the brake lock lever and brake lock
stay.
STANDARD:
2.0-
3.0
mm
(0.08-
0.12 in)
If the brake lock system adjustment
is
normal, but the
rear wheel
is
not locked completely, check for other
malfunctioning parts.
Install the front meter panel (page 2-7).
AIM
NOTE:
• Adjust the headlight beam
as
specified by local laws
and regulations.
Place the scooter
on
a level ground.
Adjust the headlight beam vertically by turning the
headlight
aim
adjusting screw
[1]
using the screwdriver.
A clockwise rotation moves the beam
up
and
counterclockwise rotation moves the beam down.
[2]
2.0
mm
- 3.0
mm
(0.08 - 0.12
in)
I
[3]
