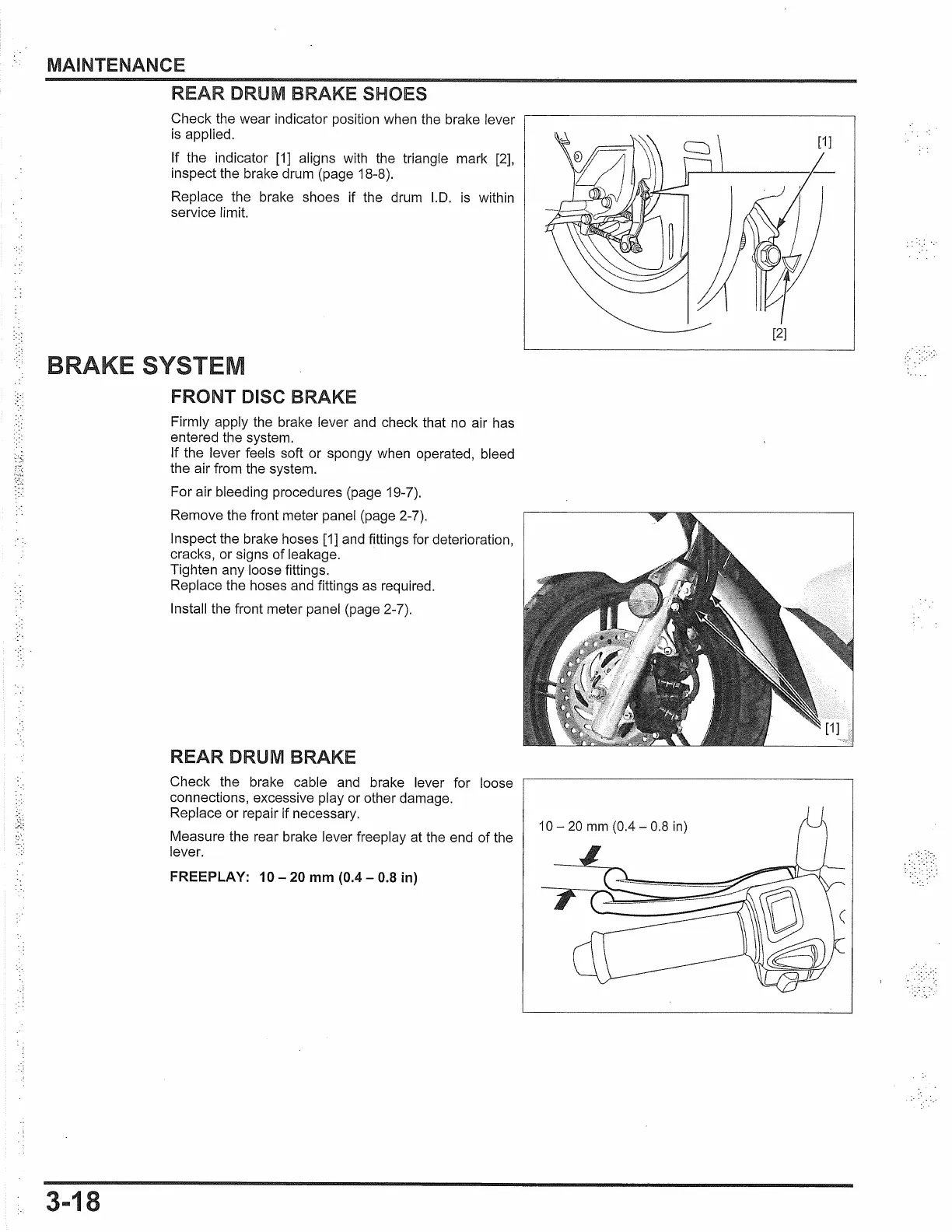

MAINTENANCE
3-18
REAR DRUM BRAKE SHOES
Check the wear indicator position when the brake lever
is applied.
If the indicator
[1]
aligns with the triangle mark [2],
inspect the brake drum (page 18-8).
Replace the brake shoes if the drum
1.0.
is within
service limit.
SYSTE
FRONT DISC BRAKE
Firmly apply the brake lever and check that no air has
entered the system.
If the lever feels soft or spongy when operated, bleed
the air from the system.
For air bleeding procedures (page 19-7).
Remove the front meter panel (page
2-7).
Inspect the brake hoses [1] and fittings for deterioration,
cracks, or signs of leakage.
Tighten any loose fittings.
Replace the hoses and fittings as required.
Install the front meter panel (page
2-7).
REAR DRUM BRAKE
Check the brake cable and brake lever for loose
connections, excessive play or other damage.
Replace or repair if necessary.
Measure the rear brake lever freeplay at the end
of
the
lever.
FREEPLA
Y:
10 - 20 mm (0.4 - 0.8 in)
[2]
10-
20
mm
(0.4-
0.8
in)

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
