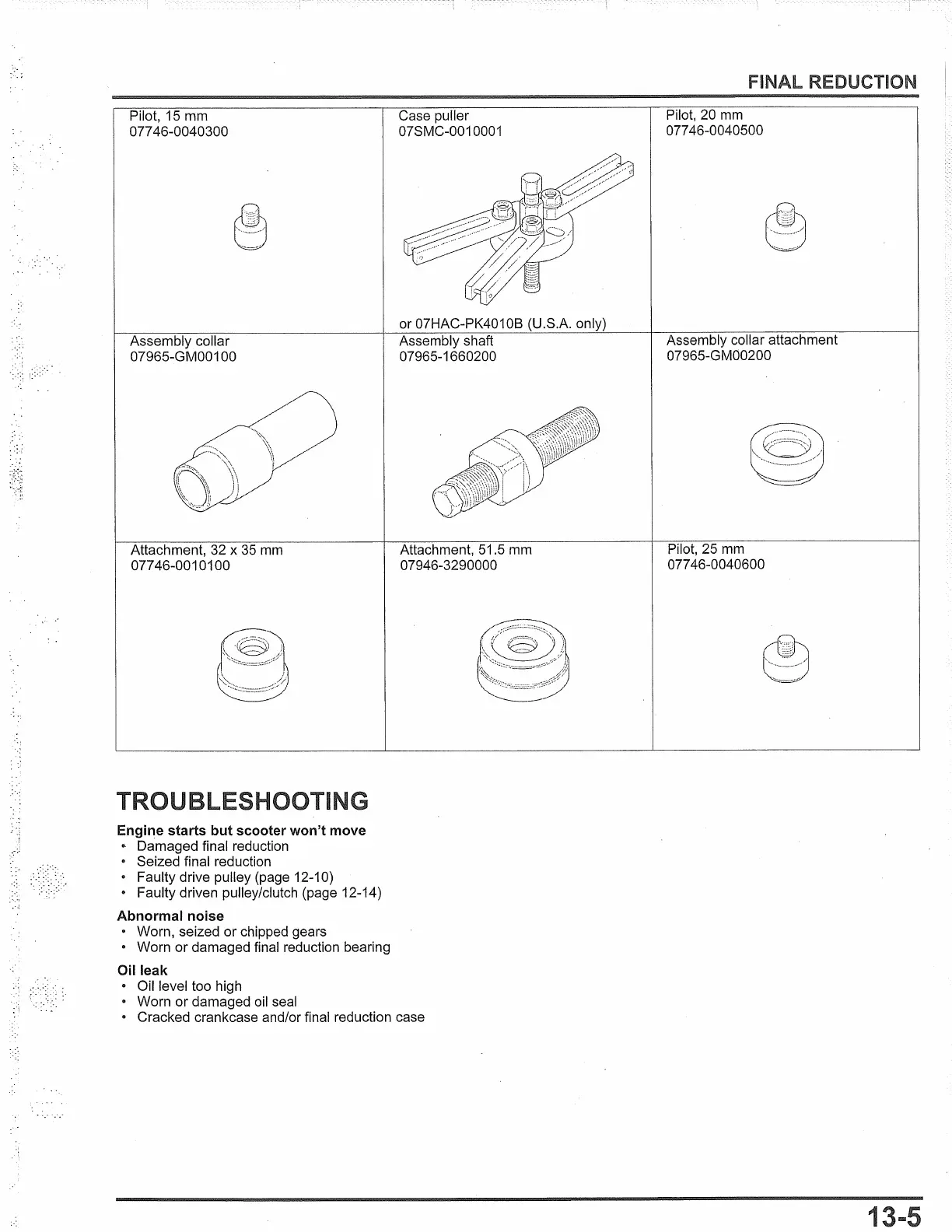

Honda PCX150 2013 User Manual

Pilot, 15 mm
077 46-0040300
Assembly collar
07965-GM00100
Attachment, 32 x
35
mm
07746-0010100
u
Engine starts but scooter won't move
..
Damaged final reduction
• Seized final reduction
• Faulty drive pulley (page 12-10)
• Faulty driven pulley/clutch (page 12-14)
Abnormal noise
• Worn, seized
or
chipped gears
• Worn
or
damaged final reduction bearing
Oil leak
• Oil level too high
• Worn
or
damaged oil seal
Case puller
07SMC-0010001
or 07HAC-PK4010B (U.S.A. only)
Assembly shaft
07965-1660200
Attachment, 51.5 mm
07946-3290000
• Cracked crankcase and/or final reduction case
FINAL REDUCTION
Pilot, 20
mm
077 46-0040500
Assembly collar attachment
07965-GM00200
Pilot, 25 mm
077 46-0040600
1

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
