Honda PCX150 2013 User Manual

MAINTENANCE

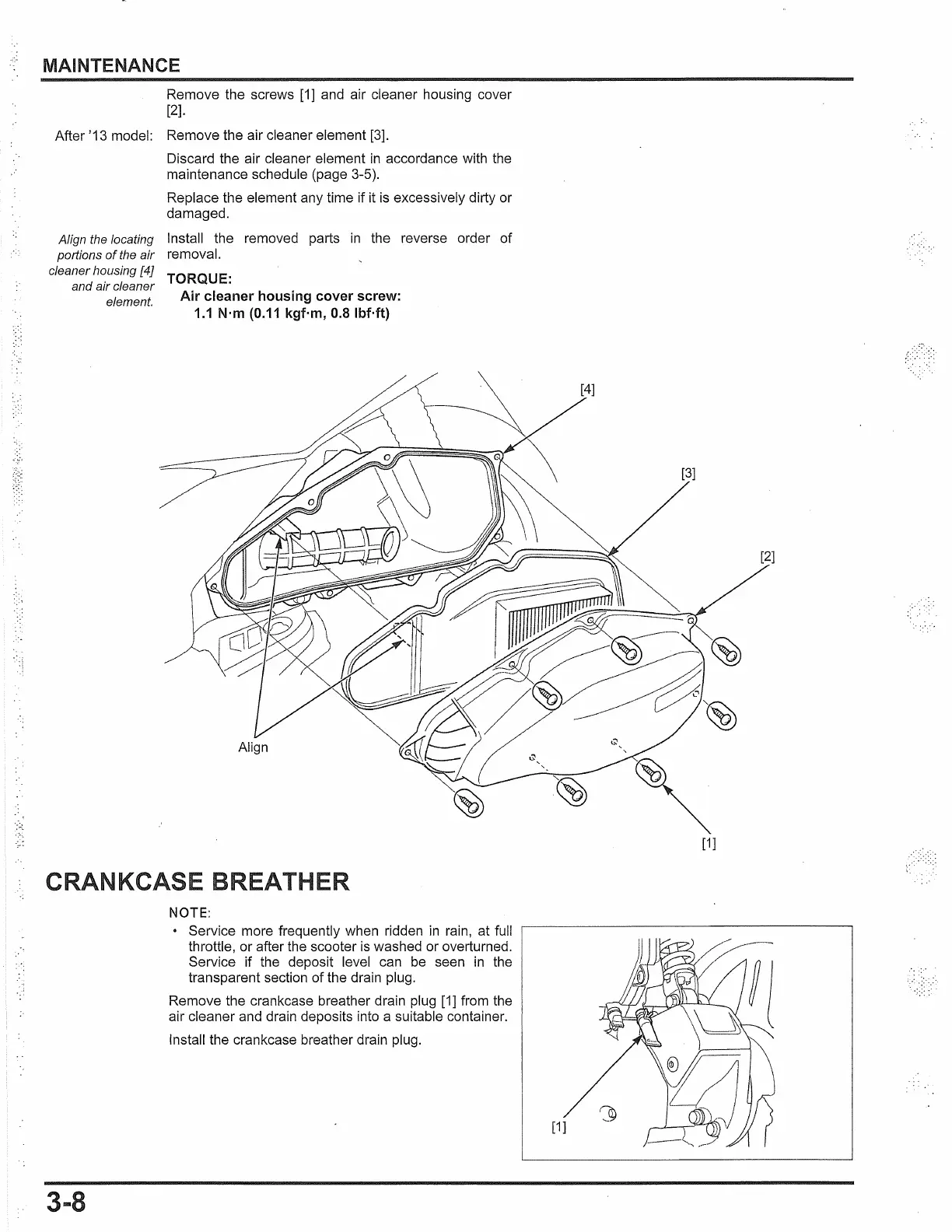

Remove the screws [1] and air cleaner housing cover
[2].
After '13 model: Remove the air cleaner element [3].
Discard the air cleaner element
in accordance with the
maintenance schedule (page 3-5).
Replace the element any time if it is excessively dirty or
damaged.
Align the locating Install the removed parts in the reverse order of
portions of the air removal.
cleaner housing [4] TORQUE:
and air cleaner
element.
Air cleaner housing cover screw:
1.1 N·m (0.11 kgf·m, 0.8 lbf·ft)
CRANKCASEBREATH R
3-8
NOTE:
• Service more frequently when ridden in rain, at full
throttle, or after the scooter
is washed or overturned.
Service if the deposit level can
be seen in the
transparent section of the drain plug.
Remove the crankcase breather drain plug
[1] from the
air cleaner and drain deposits into a suitable container.
Install the crankcase breather drain plug.
[1]

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
