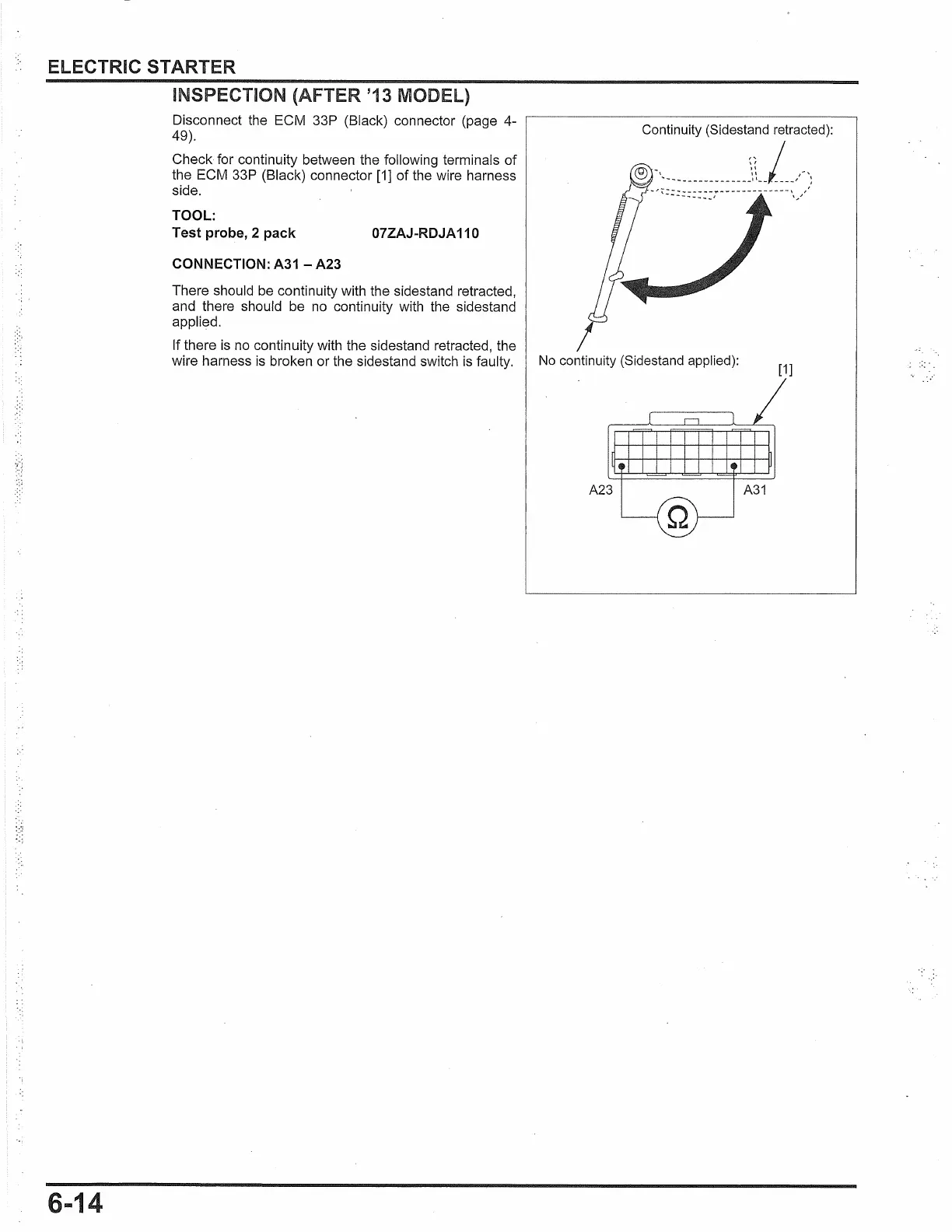

ELECTRIC ST ARTER
INSPECTION (AFTER '13 MODEL)
Disconnect the ECM 33P (Black) connector (page 4-
49).
Check for continuity between the following terminals of
the ECM 33P (Black) connector
[1]
of the wire harness
side.
TOOL:
Test probe, 2 pack
07ZAJ-RDJA 110
CONNECTION: A31
-A23
There should
be
continuity with the sidestand retracted,
and there should be no continuity with the sidestand
applied.
If there
is
no
continuity with the sidestand retracted, the
Continuity (Sidestand retracted):
,,
I
®
___________________
\\
_______
,,-':
..
.,
~
::
= ::::::
:r-
----
--
---
..
-
..
\,,..,.,'
wire harness
is
broken or the sidestand switch
is
faulty.
No
continuity (Sidestand applied):
[1]
A23
A31
6-14

Honda PCX150 2013 Specifications

General

Displacement	153 cc
Bore x Stroke	58.0 mm x 57.9 mm
Compression Ratio	10.6:1
Transmission	Automatic V-Matic belt drive
Front Tire	90/90-14
Rear Tire	100/90-14
Wheelbase	51.8 inches
Fuel System	PGM-FI
Ignition	Fully transistorized
Front Suspension	Telescopic fork
Rear Suspension	Unit swing
Front Brake	Hydraulic disc
Rear Brake	Drum
Fuel Capacity	2.1 gallons
Engine Type	Liquid-cooled, 4-stroke, SOHC, single-cylinder
Curb Weight	286 lbs (130 kg)
